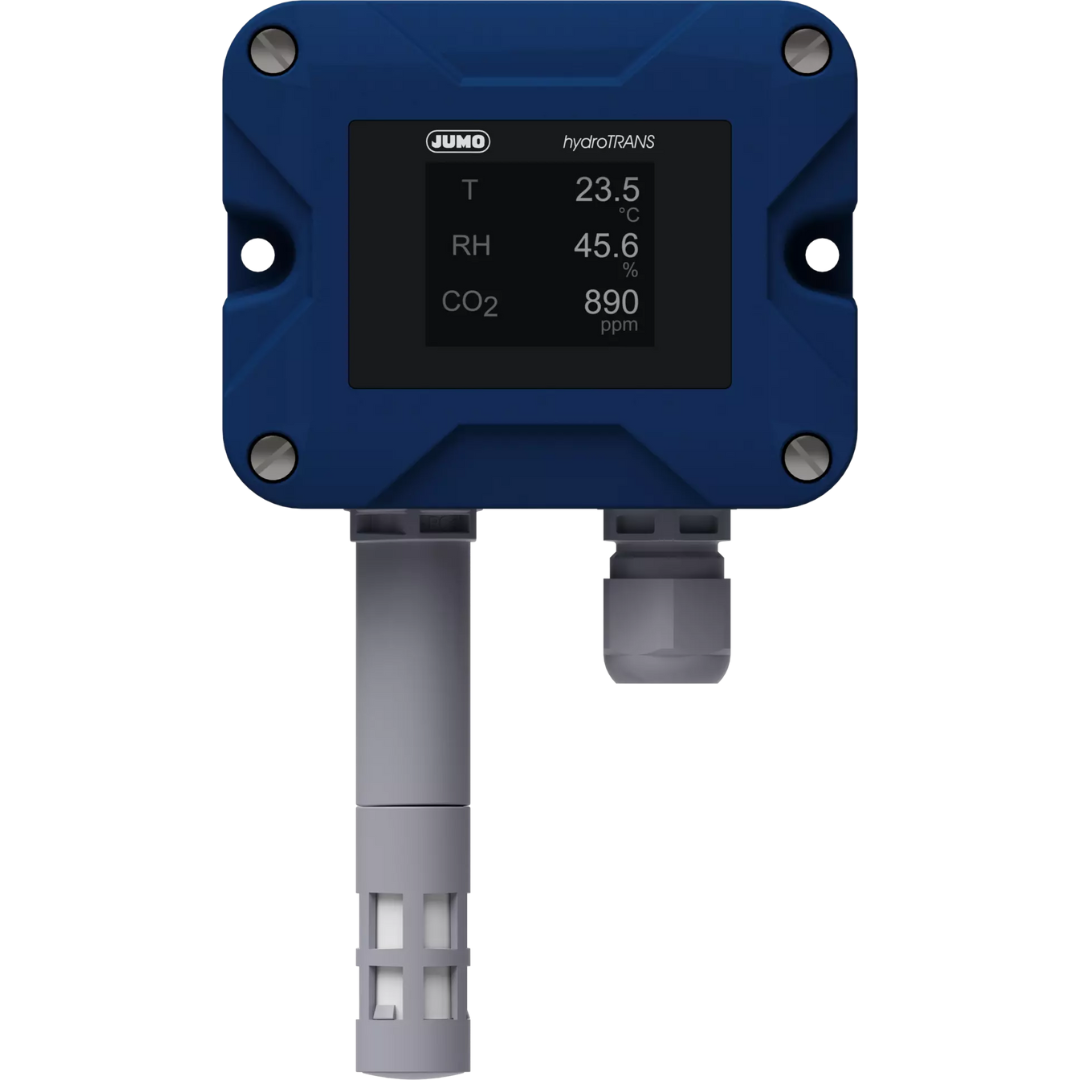

JUMO hydroTRANS S20
The humidity and temperature transmitter with optional CO2 module works with the capacitive measurement method. The wall-mounted version is suitable for use in harsh environments such as storage rooms and production facilities. The humidity sensor is available with various interfaces. It is characterized by ease of installation, robustness, and reliable sensor technology. Innovative Single Pair Ethernet technology enables a direct connection to the JUMO Cloud and other automation systems.
Technical data
| General technical data | |
|---|---|
| Measuring range | 0 to 100 % RH |
| Accuracy relative humidity | 2 % RH (at 25 °C and 1013 mbar) |
| Operating temperature | -40 to +80 °C; -20 to +60 °C CO2 version |
| Accuracy temperature | 0.2 K (at 25 °C and 1013 mbar) |
| CO2 measuring range | 400 to 10000 ppm |
| Accuracy CO2 | 50 ppm +/- 5 % from the measured value (at 25 °C and 1013 mbar) |
| Voltage supply | 24 V DC, +/- 33 % |
| Protection type | IP65 |
| Vibration/shock | Industrial applications |
| EMV interference emission | Class B |
| EMV interference immunity | Industrial requirements |
| Interfaces | Voltage and current output, Modbus |
