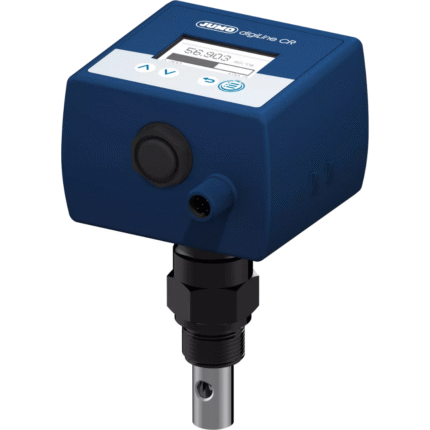

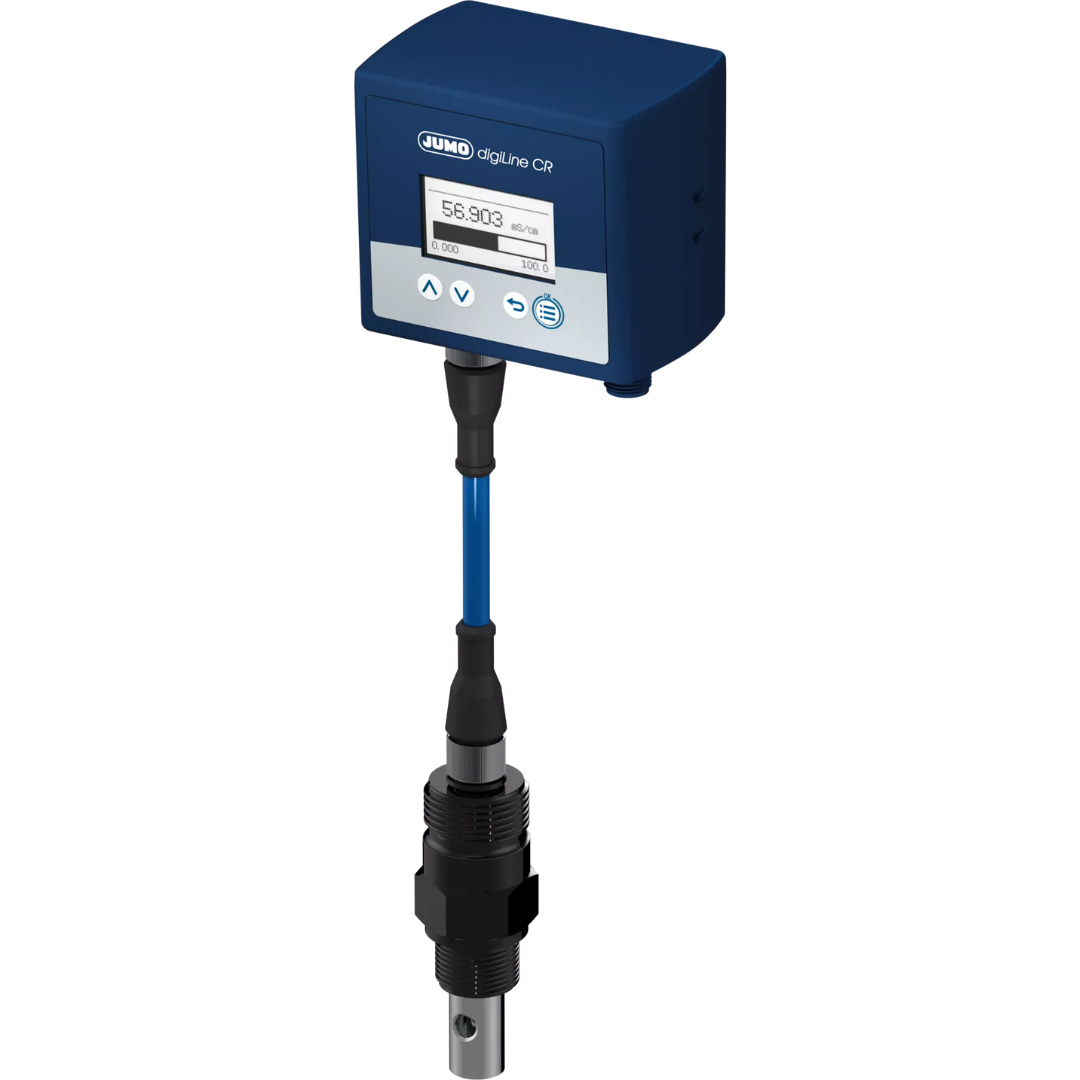

JUMO digiLine CR ST10

JUMO digiLine CR now enables conductive conductivity sensors to be connected to the intelligent, bus-compatible JUMO digiLine system. In addition to the JUMO digiLine interface, system integration can now also take place via an IO-Link interface.

Categories: Electrodes/sensors, Liquid analysis, Transmitters and controllers

Technical data
Downloads

Technical data

General technical data
Suitable sensors	See type 202922, 202923, 202924, 202925, 202930
Measuring principle	Conductive
Sensor connection	Separate design type
Sensor material	Stainless steel 1.4571; titanium; stainless steel 1.4435; PEEK; graphite; PVDF; PPE; PS
Measuring range	0.05 µS/cm to 600 mS/cm
Temperature compensation	Linear, ASTM, USP <645>
Temperature	Max. 200 °C (depends on sensor)
Pressure	Max. 6 bar (depends on sensor)
Interfaces	JUMO digiLine or IO-Link
Areas of application	Ultra-pure water applications; reverse osmosis; ion exchangers; pharmaceutical applications; rinsing processes in the food, beverage, pharmaceutical, and biotechnology industries; pharmaceuticals; chemistry; food technology; bottle cleaning plants; process water

General technical data

Suitable sensors

See type 202922, 202923, 202924, 202925, 202930

Measuring principle

Conductive

Sensor connection

Separate design type

Sensor material

Stainless steel 1.4571; titanium; stainless steel 1.4435; PEEK; graphite; PVDF; PPE; PS

Measuring range

0.05 µS/cm to 600 mS/cm

Temperature compensation

Linear, ASTM, USP <645>

Temperature

Max. 200 °C (depends on sensor)

Pressure

Max. 6 bar (depends on sensor)

Interfaces

JUMO digiLine or IO-Link

Areas of application

Ultra-pure water applications; reverse osmosis; ion exchangers; pharmaceutical applications; rinsing processes in the food, beverage, pharmaceutical, and biotechnology industries; pharmaceuticals; chemistry; food technology; bottle cleaning plants; process water
