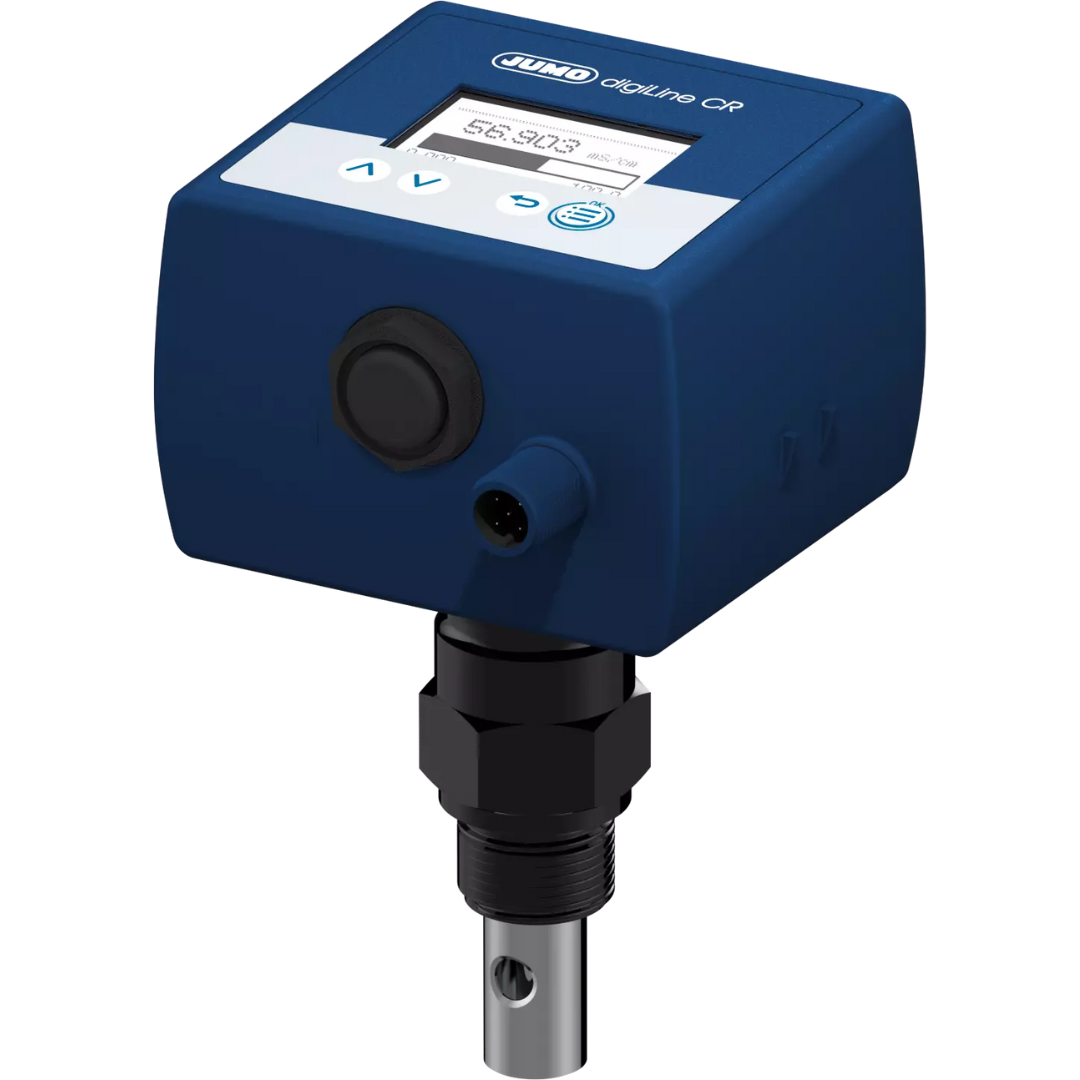

JUMO digiLine CR HT10

JUMO digiLine CR now enables conductive conductivity sensors to be connected to the intelligent, bus-compatible JUMO digiLine system. System integration can now also take place via an IO-Link interface. The sensor is firmly connected to the head transmitter.

Categories: Electrodes/sensors, Liquid analysis, Transmitters and controllers

Technical data
Downloads

Technical data

General technical data
Measuring principle	Conductive
Sensor connection	Compact design type
Sensor material	PPE; PS
Measuring range	0.1 µS/cm to 100 mS/cm
Temperature compensation	Linear, ASTM, USP <645>
Temperature	Max. 60 °C
Pressure	Max. 6 bar
Interfaces	JUMO digiLine or IO-Link
Areas of application	General water technology; drinking water, surface water, swimming pool water; air-conditioning and cooling systems; horticultural technology; seawater and freshwater aquaristics; slightly soiled industrial rinsing and cleaning water, process water; ultra-pure water monitoring; reverse osmosis plants; EDI (electrodeionization); ion exchangers

General technical data

Measuring principle

Conductive

Sensor connection

Compact design type

Sensor material

PPE; PS

Measuring range

0.1 µS/cm to 100 mS/cm

Temperature compensation

Linear, ASTM, USP <645>

Temperature

Max. 60 °C

Pressure

Max. 6 bar

Interfaces

JUMO digiLine or IO-Link

Areas of application

General water technology; drinking water, surface water, swimming pool water; air-conditioning and cooling systems; horticultural technology; seawater and freshwater aquaristics; slightly soiled industrial rinsing and cleaning water, process water; ultra-pure water monitoring; reverse osmosis plants; EDI (electrodeionization); ion exchangers
