Main features
- Pressure ranges from: 0-17 to 0-2000 bar / 0-250 to 0-30000 psi
- Accuracy: < ±0.25% FS (H); < ±0.5% FS (M)
- Fluid-filled system for temperature stability
Available resources
Brochure
– Melt pressure sensors
– Gefran product range brochure
Datasheet
– HME Datasheet
Device Description Files
– H pressure transmitter description file
– H pressure transmitter description files for HH475
– H pressure transmitter description file rev. 2
Catalogue
– 4.0 plastic application catalogue
Informativa RoHS
– RoHS informative note
Flyer
– Flyer Melt for Polymers
User Manual
– HW/HM/HK SERIES – User manual
Certifications
– UK Conformity declaration_HME FS min 500bar
– UK Conformity declaration_HME FS over 500bar
– UK Conformity declaration_HME FS min 500bar SIL 2
– UK Conformity declaration_HME FS over 500bar SIL 2
– UK Conformity declaration_HME FS min 500bar PL d
– EU Conformity declaration_HME FS min 500bar SIL 2
– EU Conformity declaration_HME FS min 500bar
– EU Conformity declaration_HME FS over 500bar PL d
– EU Conformity declaration_HME FS over 500bar SIL 2
– SIL2/PLd CERTIFICATION HM/HW/HK SERIES
– EU Conformity declaration_HME FS over 500bar
– EU Conformity declaration_HME FS min 500bar PL d
– Hart Certifications
– GTP+ FDA Certificate
Technical specifications
Overview

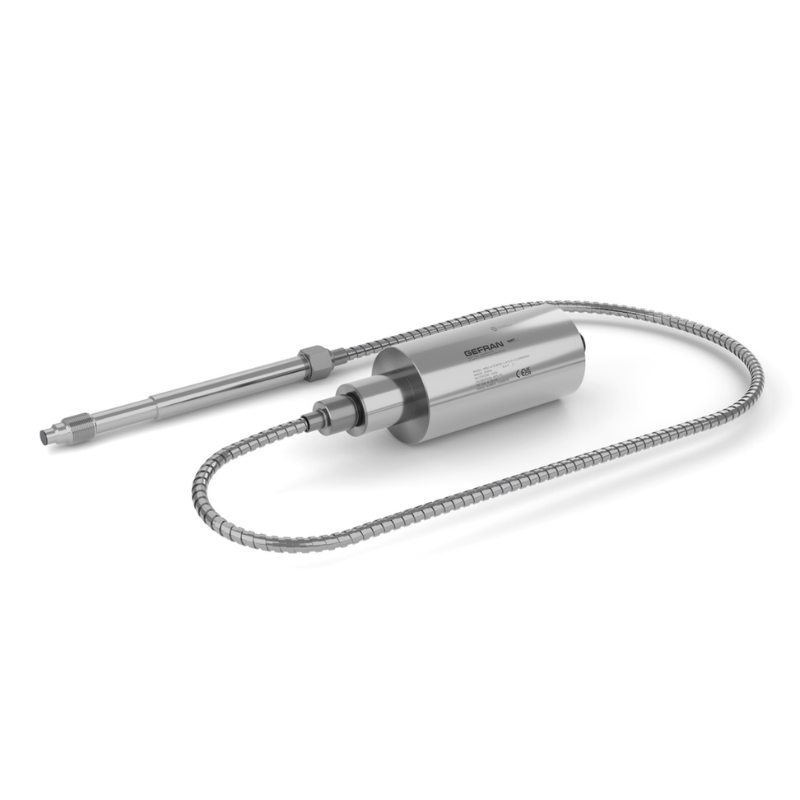

The HME series of Gefran, are pressure transmitters for using in High temperature environment and specifically designed for melt pressure measurement and available only to be used in large-scale fixed installations or in large-scale stationary industrial tools, typically extruders, or for laboratory B2B equipments for R&D purposes according to the European Directive 2011/65/EU.
The HME series of Gefran are pressure transmitters with HART communication protocol for using in high temperature environment.
The main characteristic of this series is the capability to read temperature of the media up to 400°C.

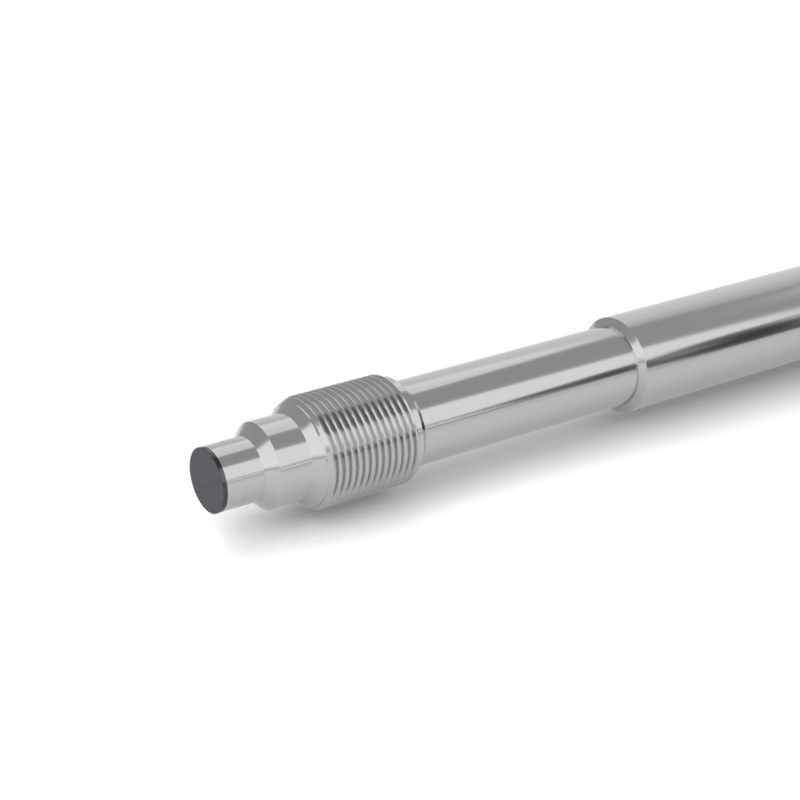

The constructive principle is based on the hydraulic trasmission of the pressure.
The fluid-filled system assures the temperature stability.
The physical measure is transformed in a electrical measure by means of strain-gauge technology.
