Main features
- Pressure ranges from: 0-17 to 0-2000 bar / 0-250 to 0-30000 psi

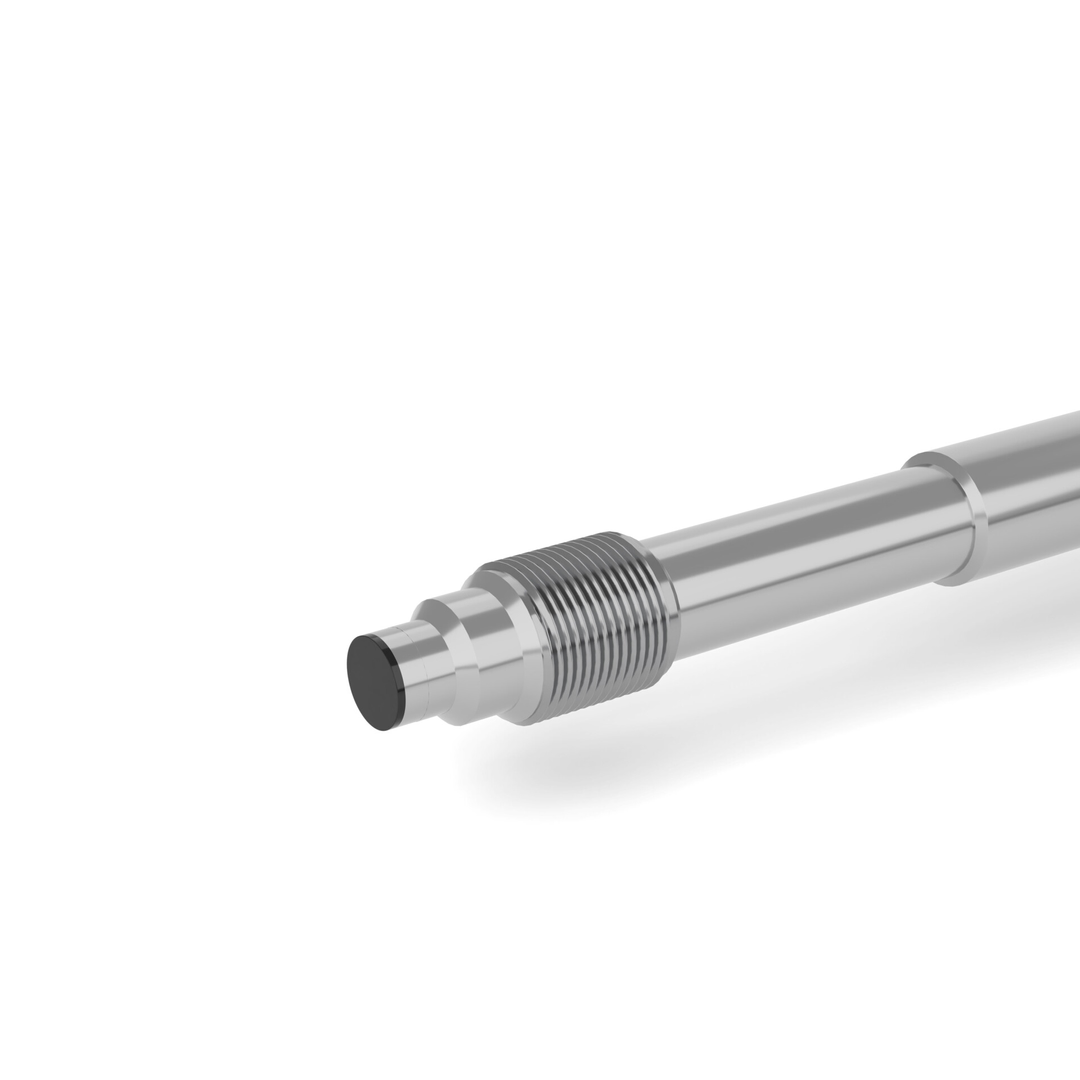

- Accuracy: < ±0.25% FS (H); < ±0.5% FS (M) 1/2-20UNF, M18x1.5 standard threads
Available resources
Brochure
– Melt pressure sensors
– Gefran product range brochure
Catalogue
– 4.0 plastic application catalogue
Informative Rohs
– RoHS informative note
Datasheet
– ILM DATASHEET
User Manual
– ILM – ILW – ILK Installation Manual
Flyer
– Melt IO-Link
Certifications
– UK Conformity Declaration – Melt ILM min 500bar
– UK Conformity Declaration – Melt ILM over 500bar
– UK Conformity Declaration – Melt ILM SIL2 PLd min 500bar
– UK Conformity Declaration – Melt ILM SIL2 PLd over 500bar
– EU Conformity Declaration – Melt ILM SIL2 PLd over 500bar
– EU Conformity Declaration – Melt ILM SIL2 PLd below 500bar
– SIL2/PLd certification ILM/ILK/ILW Series
Technical specifications
Overview

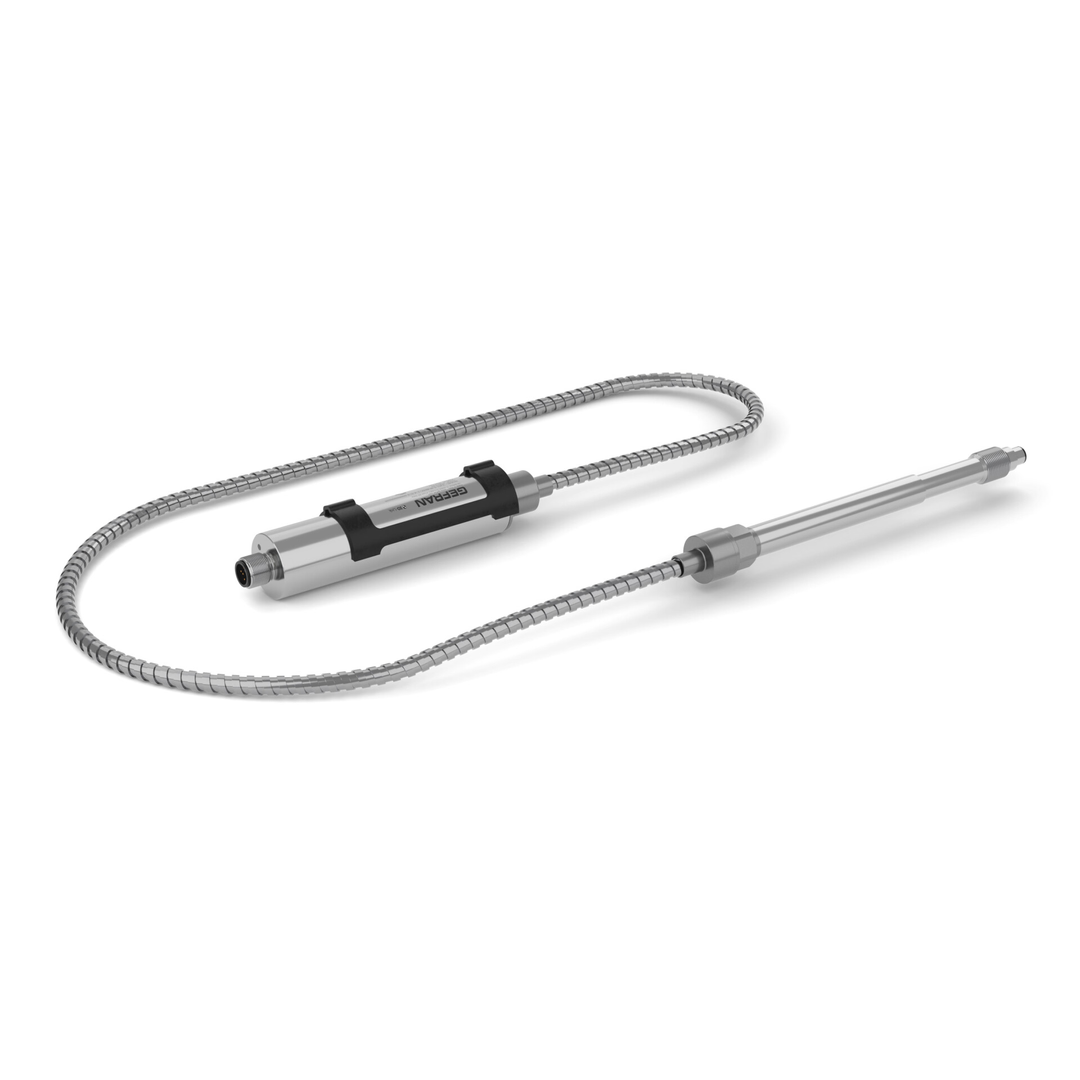

The ILM Performance Level ‘d’/SIL2 series of Gefran are pressure transmitters for using in high temperature environment with digital IO-Link output interface.
The constructive principle is based on the hydraulic trasmission of the pressure.
This new series ILM with “IO-Link” interface is a Smart device specifically designed to meet the requirements of “Industry 4.0” environment, with auxiliary information suitable to prevent machine downtime.
The main characteristic of this series is the capability to read temperature of the media up to 400°C (750°F).
In addition, with PLd and SIL2 approvals, the ILM series is the best solution for “Functional Safety” applications.
