Main features
- Direct measurement of surface strain
- With integrated digital amplifier
- Quick and easy non-destructive assembly
Available resources
Brochure
– Industrial strain and force sensors
– Tie bar measuring system. Press-on strain sensors
– Strain and force sensors
– Gefran product range brochure
Datasheet
– Datasheet GE1029-A
Catalogue
– 4.0 plastic application catalogue
User Manual
– GE1029-A User Manual
Certifications
– UK Conformity declaration – GE1029-A
Technical specifications
Overview

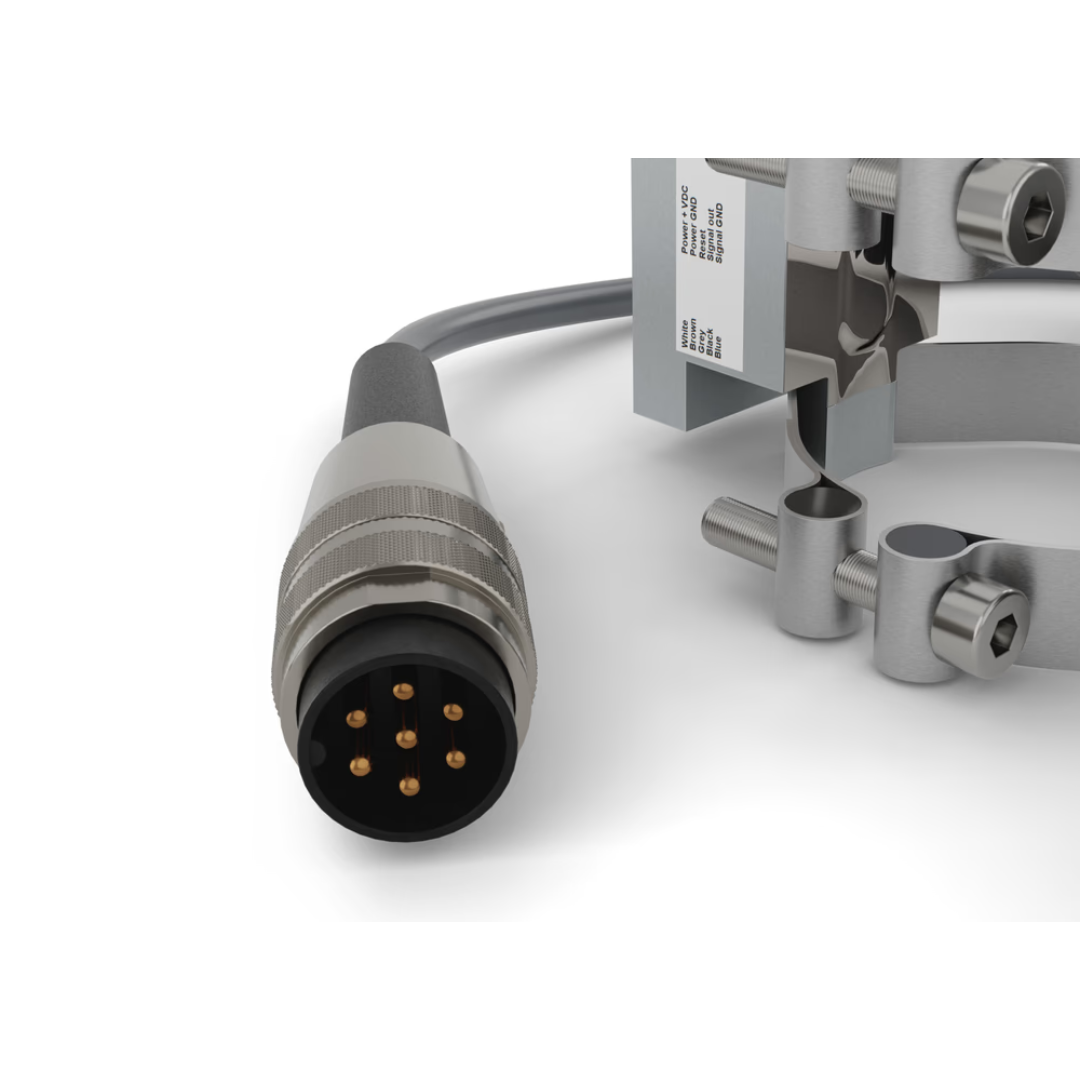

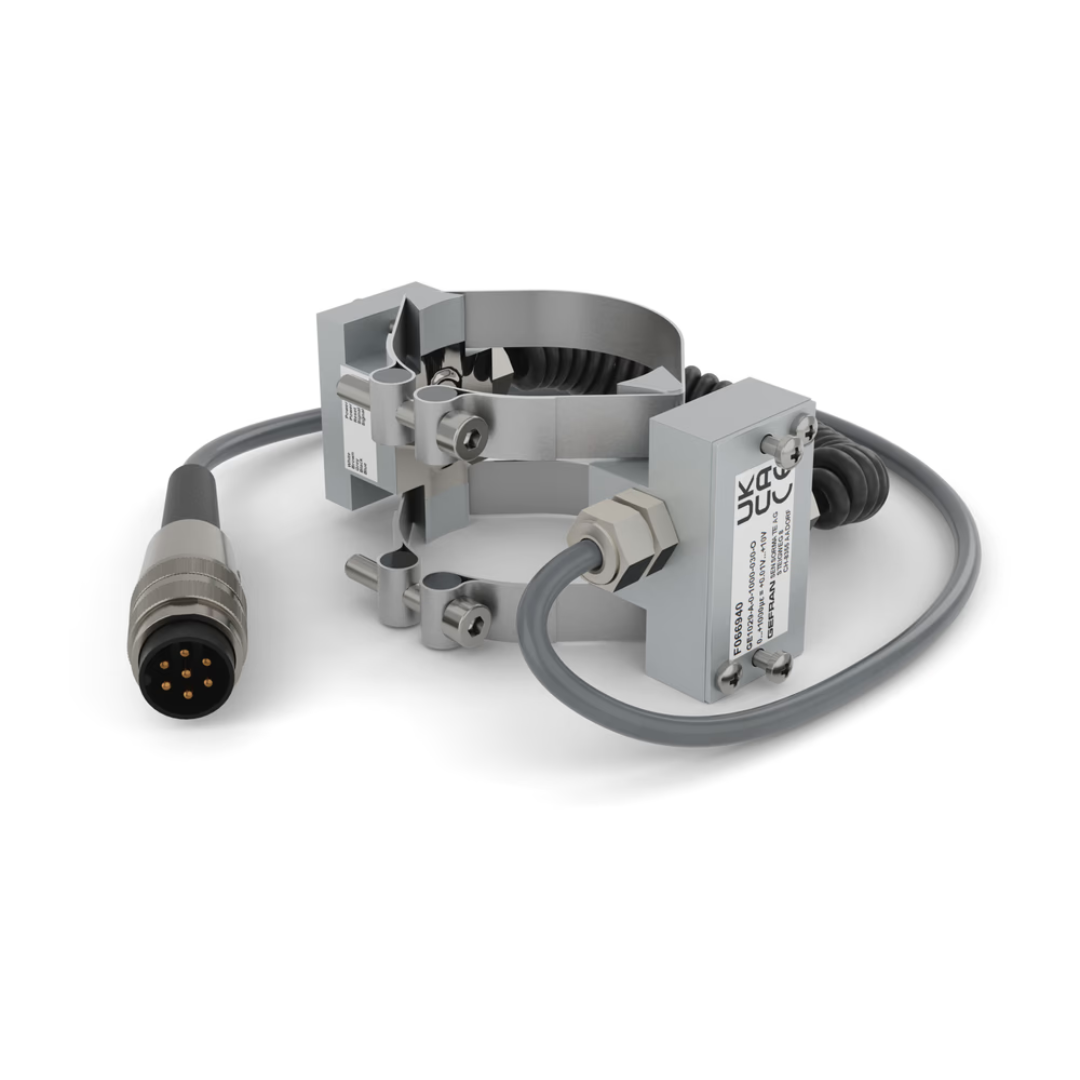

The strain gauge sensor GE1029-A measure the surface-strain directly at the mounting location in the same quality as bonded strain gages.
The integrated variable digital amplifier amplifies the signal on the spot, avoiding EMC problems.
The sensor does not have to be recalibrated between remove and re-installation.
The press-on technology, developed by Sensormate AG, presses the strain gauges under the stainless protective film so strongly against the surface to be measured that frictional contact occurs.

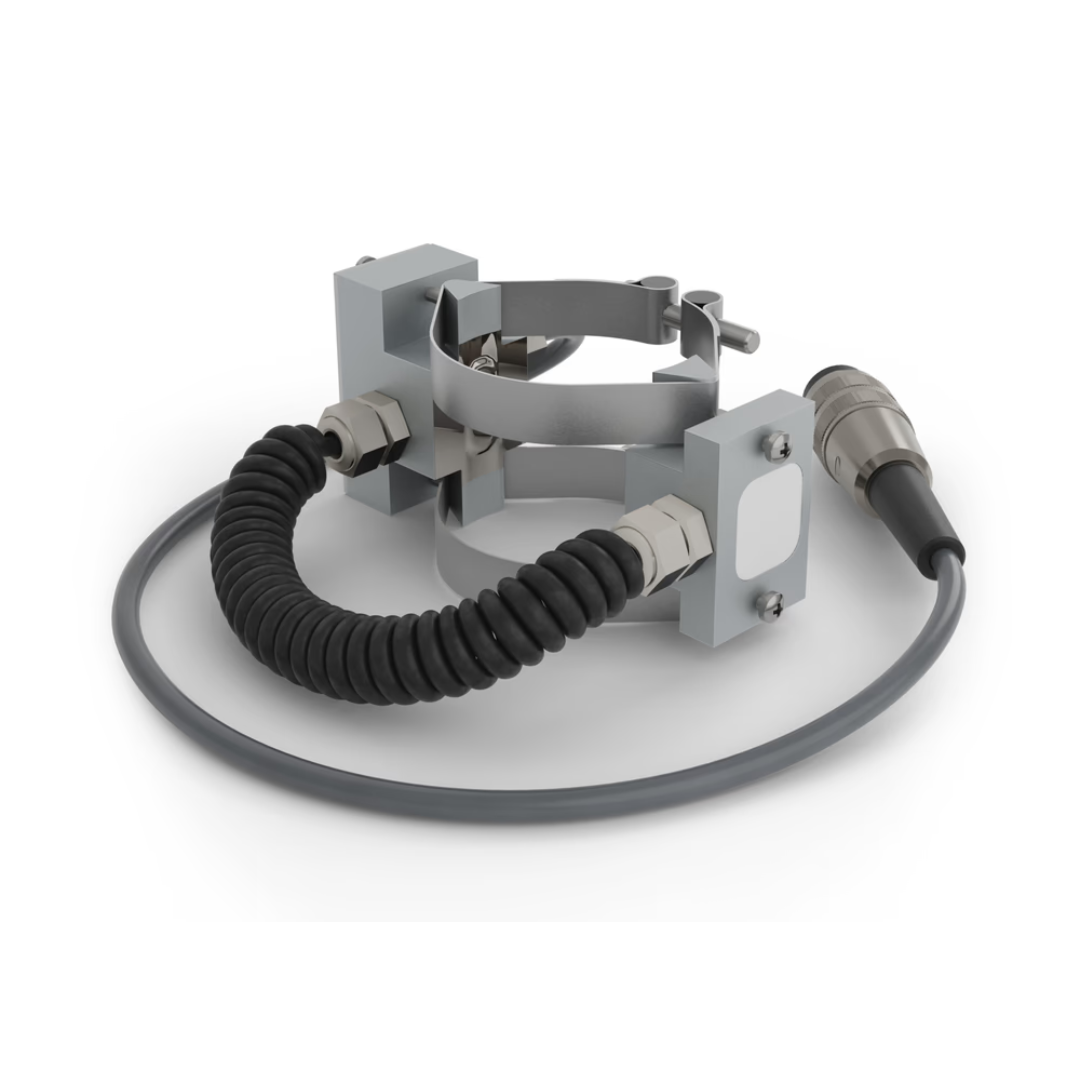

The sensor is mounted using stainless steel straps, is non-destructive, very fast and simple.
For each tie-bar diameter outside tolerance of ± 2.5mm a different pair of steel straps is required.
The sensor can not be overloaded.
The GE1029-A sensors require a cyclic reset.
