F950_Electromagnetic Flowmeters Combined type
Infomation
The Electromagnetic Flowmeter can be used to accurately measure the flowrate of liquids, paper pulp, slurry and mineral slurry which has an electrical conductivity greater than 10 µs/cm.

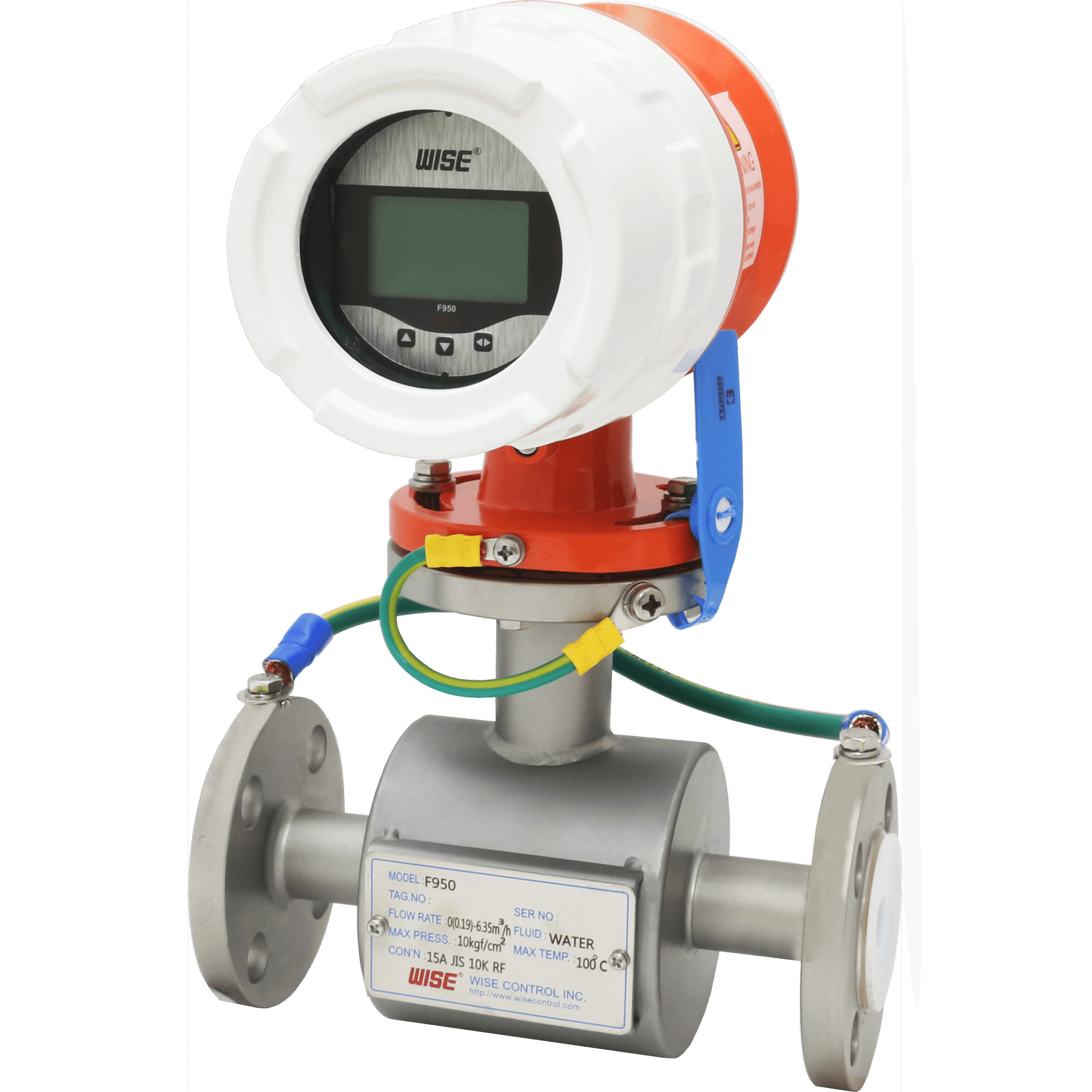

F950 is a flow measurement system in a compact design which integrates the primary and signal converter.
Applications
• Facilities in water supply, sewerage, agricultural water, industrial water and waste water
• Petrochemical, alkali salt, chemicals and coolant process.
• Circulating water like cement sludge, coal sludge
• Spoke water, waste water, coolant in pulp, paper mill
• Coolant, seawater circulating, in ship building factories
Specification
| Type | Combined type |
| Size | 15 ~ 1,000A (⅜”~40″) |
| Process connection | Flange type [ANSI, ASME, DIN, JIS, KS, ETC.] |
| Measuring range | 0.2 – 10 m/s |
| Accuracy | ±0.5 % F.S (15 ~ 800A) ±1.0 % F.S (900A ~ : It needs for site calibration.) |
| Lining | Standard : Hard rubber (0 ~ 60 °C) Option : Teflon (-10 ~ 160 °C) Max. 600A |
| Ambient temperature | -10 ~ 60 °C |
| Conductivity | Standard : ≥ 10 µs/cm Option : ≥ 5 µs/cm |
| Power supply | Standard : AC 85 ~ 250 V, 50 ~ 60 Hz Option : DC 24 V [2-Wire Loop Power] |
| Power consumption | Max. 15 VA |
| Display | LCD Display with back light Flowrate : 5-Digit Display Total : 9-Digit Display |
| Output | Analog : DC 4 ~ 20 mA (Isolated) – Active Pulse : Open collector pulse Communication : RS485 |
| Protection class | IP66 |
| Special feature | Self check Empty pipe Enable to reverse flow direction Data logging Error message |
