F951_Electromagnetic Flowmeters Separated Type
F951
Infomation
The electromagnetic flowmeter can be used to accurately measure the flowrate of liquids, paper pulp, slurry and mineral slurry which has an electrical conductivity greater than 10 µs/cm.

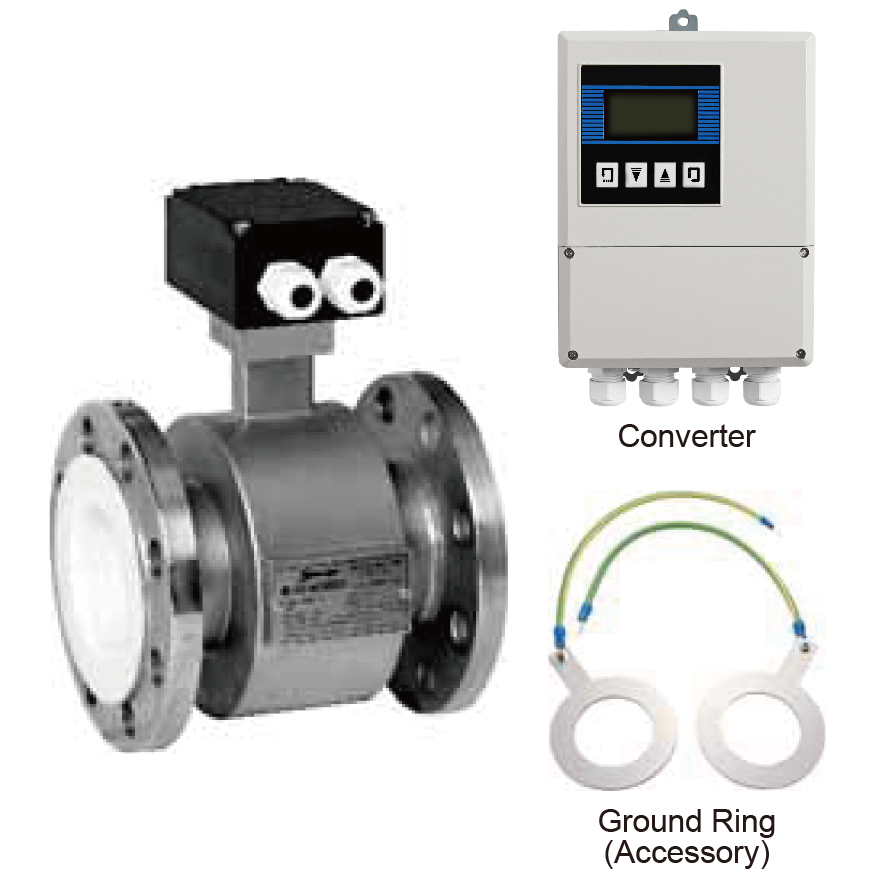

F951 is a flow measurement system consists of a flowmeter primary and remote mounted converter.
Applications
• Facilities in water supply, sewerage, agricultural water, industrial water and waste water
• Petrochemical, alkali salt, chemicals and coolant process.
• Circulating water like cement sludge, coal sludge
• Spoke water, waste water, coolant in pulp, paper mill
• Coolant, seawater circulating, in ship building factories
Specification
| Type | Separate type |
| Size | 15 ~ 1,000A (½ ~ 40″) |
| Process connection | Flange type [ANSI, ASME, DIN, JIS, KS, ETC.] |
| Measuring range | 0.2 ~ 10 m/s |
| Accuracy | ±0.5 % Full scale (15 ~ 800A) ±1.0 % Full scale (900A ~ : It needs for site calibration.) |
| Lining | Standard : Hard rubber (0 ~ 60 °C) Option : Teflon (-10 ~ 160 °C) Max. 400A |
| Ambient temperature | -10 ~ 60 °C |
| Conductivity | Standard : ≥ 10 µs/cm Option : ≥5 µs/cm |
| Power supply | Standard : AC 85 ~ 250 V, 50 ~ 60 Hz Option : DC 24 V [2-wire Loop power] |
| Power consumption | Max. 15 VA |
| Display | LCD Display with back light Flowrate : 5-Digit Display Total : 9-Digit Display |
| Output | Analog : DC 4 ~ 20 mA (Isolated) – Active Pulse : Open collector purse Communication : RS485 |
| Protection class | Sensor : IP67 Converter : IP67 |
| Special feature | Self check Empty pipe Enable to reverse flow direction Data logging Error message |
| Electrode signal cable | Standard length : 5 M Option : Max. 30 M |
