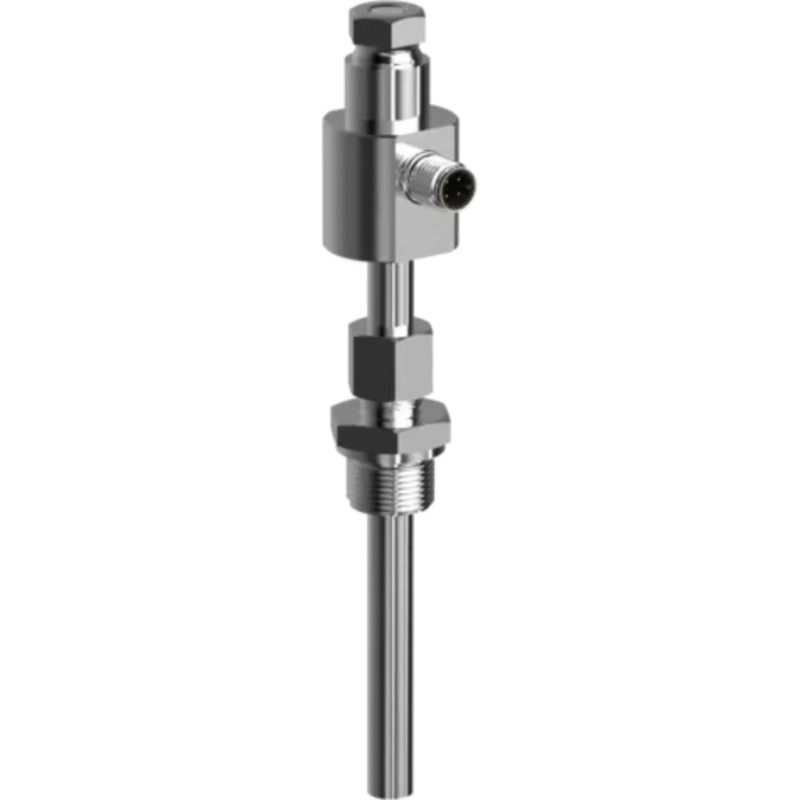

Compression fittings
Using compression fittings, mounting and removing temperature probes is easy. Another advantage is the variable insertion lengths. Different materials and threads can be selected for the combination with different protection tube diameters.
Technical data
| general technical data | |
|---|---|
| Temperatures | Up to 600 °C |
| Features | Variable insertion lengths, simple mounting, and straightforward replacement |
| Diameter | 1 to 15 mm |
| Process connection | G 1, 3/4, 1/2, 3/8, 1/4, M 10 × 1, M 8 × 1 |
| Insertion lengths | 8 to 20 mm |
| Total lengths | 23.5 to 95 mm |
| Materials | Steel, stainless steel 1.4571 / 1.4305 |
| Clamping ring | Stainless steel, steel, PTFE |
| Option | With asbestos-free stuffing box, spring-mounted compression fitting |
| Application possibilities | Protection tubes according to DIN 43763 (compression fittings with stuffing box) for furnace construction, installation of mineral-insulated RTD temperature probes and mineral-insulated thermocouples |
