Main features
- Linearity error > 0.02% full scale output
- Current output 3-wires
- Low thermal drift < 0.01% full scale/°C
Available resources
Brochure
– Industrial strain and force sensors
– Tie bar measuring system. Press-on strain sensors
– Strain and force sensors
– Brochure Load Cells, Force Transducers
– Gefran product range brochure
Datasheet
– CIR-D datasheet
Certifications
– EU Conformity declaration – CIR-D
– UK Conformity declaration – CIR-D
– EU Conformity declaration – CIR-D
Technical specifications
Overview

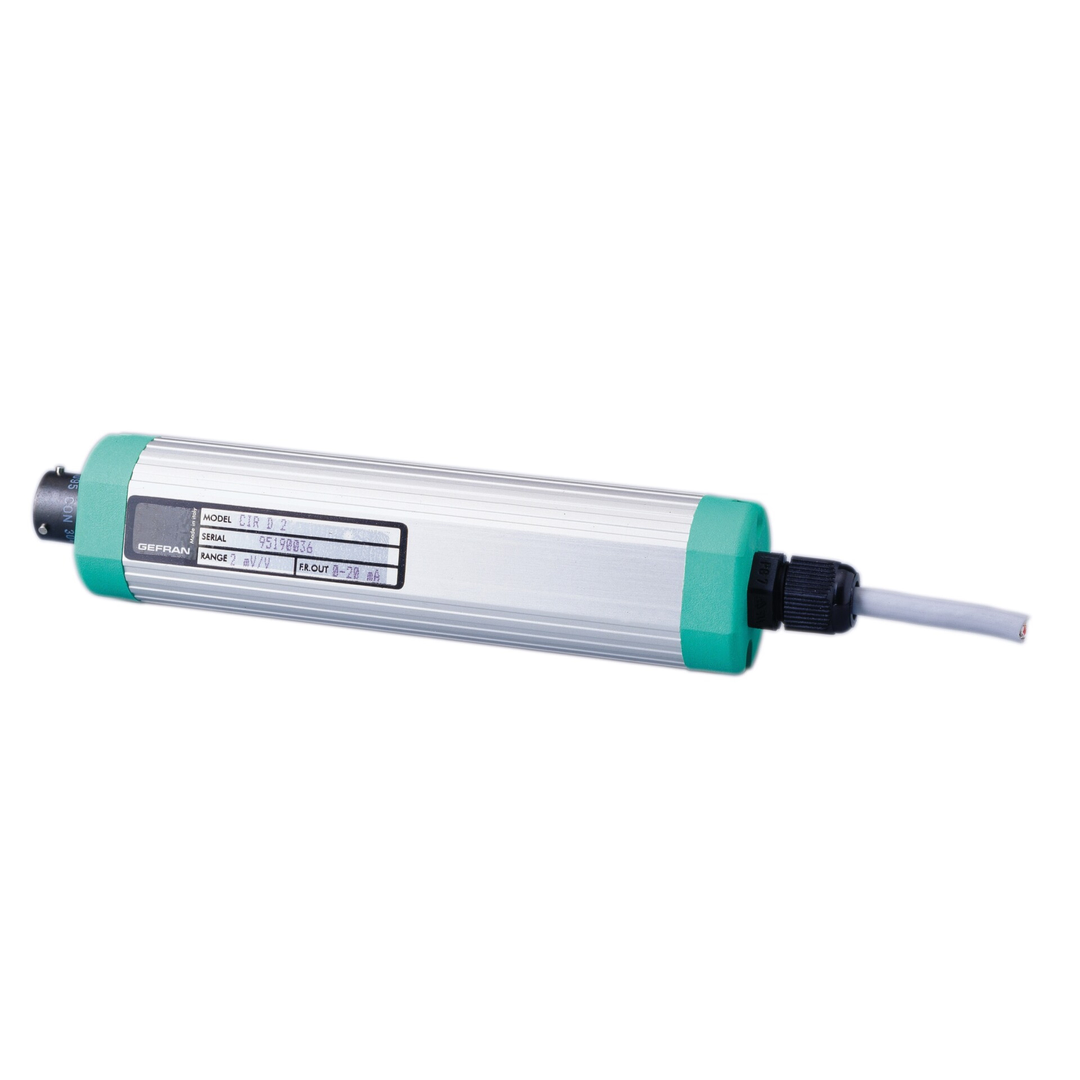

The CIR-D voltage or current amplifiers have been designed to enable the user to adapt non-amplified strain gauge transducers (load cells, pressure transducers) to acquisition systems, PLC, instrumentation with high level inputs.
These amplifiers have galvanic isolation between the supply voltage and the transducer to increase the rejection of noise generated by the power supply itself.
The availability of the output in current enables the signal to be carried over long distances or used in intelligent automation systems.
