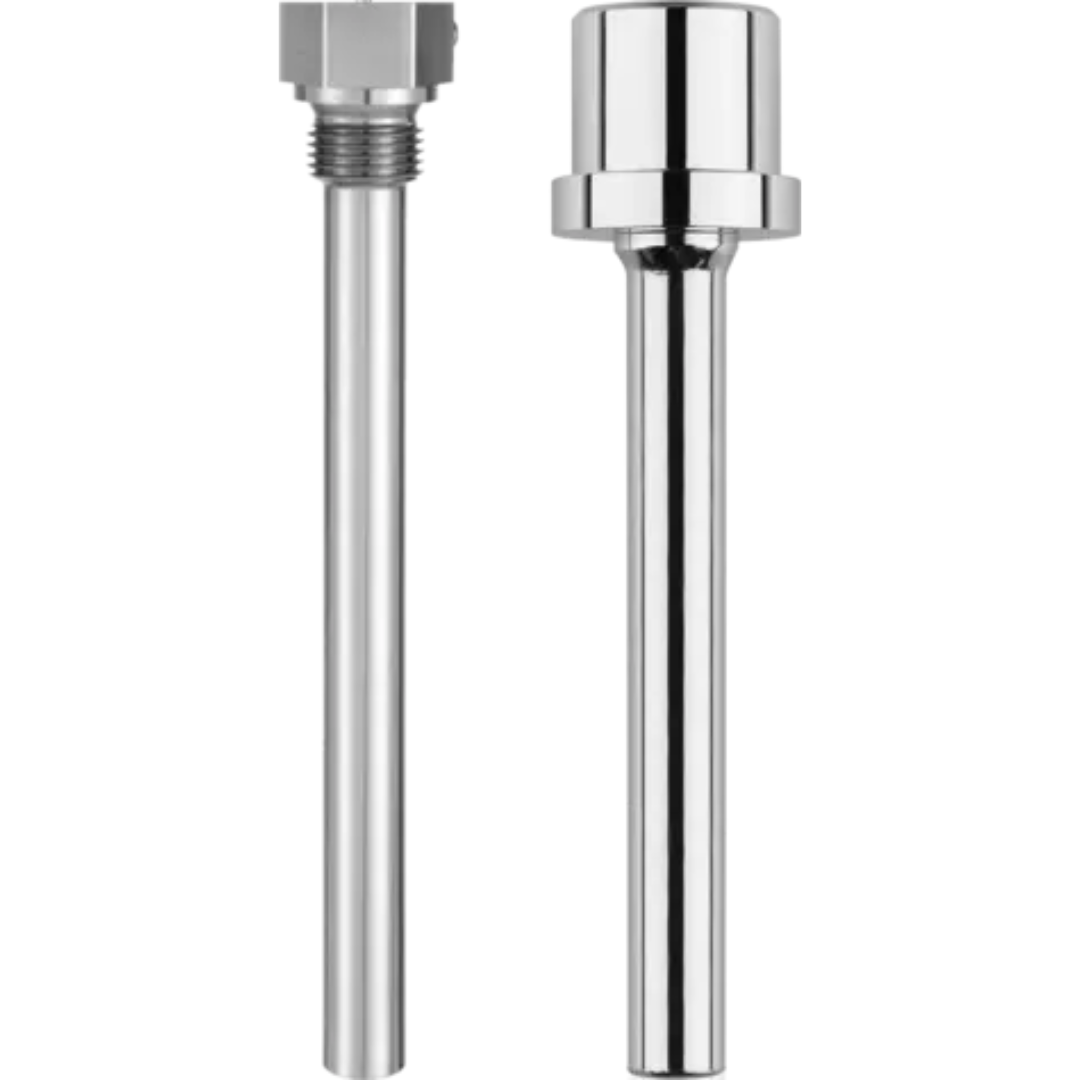

ATEX thermowells
ATEX thermowells made of stainless steel are used for the separation of zones 0 and 1 or 20 and 21. Screw-in sleeves or weld-in sleeves are available from stock in insertion lengths 100 mm, 150 mm, 200 mm, and 300 mm.
Technical data
| general technical data | |
|---|---|
| Material | Stainless steel 1.4571 |
| Max. temperature | 400 °C |
| Diameter of thermowell | 10 × 1.5 mm or 16 × 1.5 mm |
| Max. pressure | 54 bar at a diameter of 10 mm, 36 bar at a diameter of 16 mm, |
| Feature | Zone separation of zone 0 and 1/20 and 21 |
Downloads
Data Sheet
Operating Manual
Certificate
Certificate
Order details
