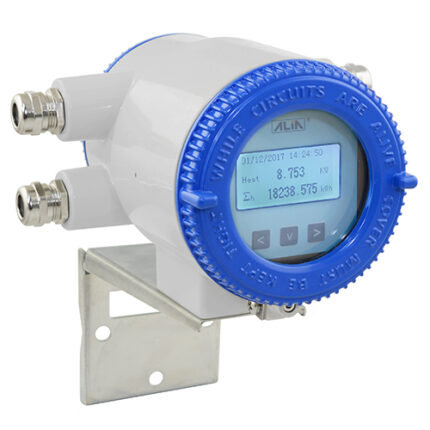

AMC3200 Series
The ALIAMAG AMC3200 Series converter is a microprocessor-based intelligent transmitter that can be paired with any of the Alia AMF series sensors. The unit features multiple display parameters including flow rate, flow total, diagnostics, programming and troubleshooting. It is equipped with Bluetooth, HART and MODBUS communication functions.
Features
- Three-line OLED display Flow Rate / Totalizer
- Accuracy of +/-0.2% value of reading
- Bi-directional flow measurement, current and pulse output
- Explosion Proof, Ex d ia [ia] q llC T6
- Bluetooth / MODBUS / HART communication
- Converter can be rotated in Four directions for easy installation
Specification
| Excitation | : | DC pulsed |
| Display | : | 3Lines OLED |
| Line 1 | : | Empty pipe symbol / Alarm / Batch control symbol |
| : | Percentage progress bar / Message / Clr tot | |
| Line 2 | : | 11Digit flowrate / velocity / % / mA / Hz / Tot |
| Line 3 | : | 9 Digit totalizer for forward flow |
| : | 9 Digit totalizer for reverse flow | |
| : | 9 Digit totalizer for difference | |
| : | 11 Digit flowrate | |
| Totalizer Unit | : | m3, L, mL, gal, Igal, Mgal, ft3, bbl, |
| a-ft, kg, g, lb, t, Ston, Lton | ||
| Time Unit | : | sec, min, hour, day |
| Measuring Range | : | Min. 0-0.15 m/s |
| : | Max. 0-15 m/s | |
| Accuracy | : | +/-0.2% of reading (Velocity≥0.5 m/s) |
| : | +/-0.001 m/s (Velocity<0.5 m/s) | |
| Repeatability | : | +/-0.05% of reading |
| Current Output | : | 4-20 mA (Isolated) |
| Load | : | Max. 600 Ω |
| Pulse Output | : | Open collector |
| Rating | : | 3-30 VDC, 50 mA Max. |
| Pulse Rate | : | 1)Scaled pulse (mL/Pulse, L/Pulse, Other) |
| : | 2)Frequency: 0-5000 Hz | |
| Pulse Width | : | 50% of band width |
| Alarm | : | High / Low with open collector output |
| Rating | : | 3-30 VDC, 50 mA Max. |
| Communication | : | Bluetooth (Android) Standard |
| : | RS485 (MODBUS Protocol) Standard | |
| : | HART signal (Compatible) Optional |
| Keypad | : | 4 Internal keys for programming |
| and display control | ||
| Data Storage | : | Operation parameters and totalizer |
| figures are stored by EEPROM for more | ||
| than 10 years | ||
| Low Flow Cutoff | : | 0-9.9% |
| Damping | : | 0-99 Seconds |
| Density Setting | : | 0.0001-9999.9 Kg/cm3 |
| Self Diagnosis | : | The following error messages are |
| displayed if failure occurs | ||
| – Abnormal sample | ||
| – Pulse width | ||
| – Overranged output | ||
| – Internal error | ||
| – Overflow | ||
| – Empty pipe | ||
| Cable Entry | : | Standard: M20 Option: 1/2″ NPTF |
| Protection Class | : | IP67, Explosion Proof, Ex d ia [ia] q llC T6 |
| Ambient Temperature | : | -40~70 °C |
| Material | : | Aluminum Alloy |
| Power Supply | : | 90-260 VAC, 50/60 Hz |
| : | 24 VDC +/-10% (Option) | |
| Power Consumption | : | 3-17 W (Dependent on sensor size) |
| Weight | : | 4.5 kg |
| Mounting | : | Bracket on 2″ pipe |
