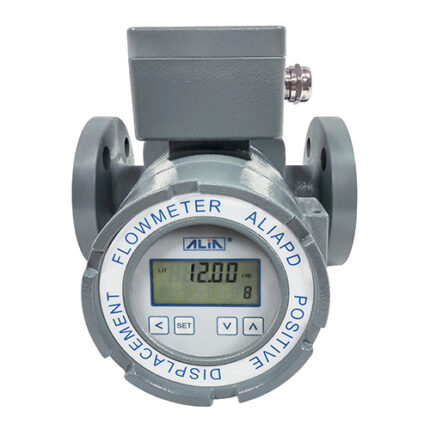

APF860 Series
The APF860 Series is designed in roots technology with digit display for totalizer & flowrate and providing scaled pulse and
analog output 4-20 mA.
APF860 Series roots flowmeters are both with high accuracy and easily adaptable to most industrial applications.
Features
- 25-150 mm (1″-6″) lines sizes
- Handles viscosities up to 50000 cP
- Wide range of application
- Various process connection types available
- 5 Digits totalizer (resetable) / 8 digits totalizer (LCD)
- 4-20 mA and pulse output
- High accuracy of +/-0.5% of reading (or +/-0.2% of reading)
- Display with auto sleep function that gets up to 6 yesrs of battery life
Specification
| Size | : | 0025, 0040, 0050, 0080, 0100, 0150 mm |
| Flow Range | : | 0.007-200 m3/hr |
| Accuracy | : | +/-0.5% of reading (Standard) |
| : | +/-0.2% of reading (Option) | |
| Repeatability | : | +/-0.1% of reading |
| Material | ||
| Body, Cover & Flange | : | Cast Iron / Stainless Steel 316 |
| Roots | : | Aluminum / Copper / Stainless Steel 316 |
| O-Rings | : | PTFE |
| Register Housing | : | Aluminum Alloy |
| Max. Viscosity | : | 0.5-200 cP (Standard) |
| : | 201-50000 cP (Option) | |
| Operating Temperature | : | -10~80 °C |
| : | -10~120 °C (Option) | |
| : | -10~180 °C (Option) | |
| Max. Pressure | : | 10 kgf/cm2 (Cast iron Body) |
| : | 16 kgf/cm2 (S.S. 316 Body) | |
| Process Connection | : | Flange |
| : | JIS 10K FF / ANSI 150# FF | |
| Power Supply | : | 3.6 V Battery, Size D * 1 ea |
| Battery Life | : | 3-6 years |
| Protection Class | : | IP65 |
| : | Intrinsically Safe, Eex ia IIC T5 | |
| : | Explosion Proof, Ex d IIB T6 | |
| Painting | : | Dark Grey |
| Ambient Temperature | : | -25~60 °C |
| Flow Range | ||
| 0025 mm | : | 0.4-6 m3/hr@5 cP |
| 0040 mm/0050 mm | : | 0.8-13 m3/hr@5 cP |
| 0080 mm | : | 1.8-24 m3/hr@5 cP |
| 080M mm | : | 2.5-50 m3/hr@5 cP |
| 080L mm/0100 mm | : | 2.8-70 m3/hr@5 cP |
| 100L mm | : | 8-120 m3/hr@5 cP |
| 150L mm | : | 25-200 m3/hr@5 cP |
| Display | ||
| Flowrate / Totalizer | : | 5 Digits Flowrate / 8 Digits Totalizer |
| Dual Totalizer | : | 5 Digits Totalizer (Resettable, Magnet) |
| : | 8 Digits Totalizer (Reset from Internal) | |
| Engineering Unit | : | L, m3, ft3, Gal |
| Time Unit | : | Second, minute, hour |
| Current Output | : | 4-20 mA (2-Wire) |
| Load | : | Rohm (VDC-6) * 50 |
| Pulse Output | ||
| Without Display | : | Reed Switch (2-Wire, Unscaled Pulse) |
| : | 2-36 VDC, 500 mA Max. | |
| With Display | : | Open Collector (2-Wire, Scaled Pulse) |
| : | 11-26 VDC, 50 mA, 15 Hz Max. | |
| Cable Entry | : | M20 * 1.5 |
| Optional | : | Heating Jacket (Heat oil or Steam) |
| : | Strainers, U-Type or Y-Type | |
| : | Air Eliminator |
