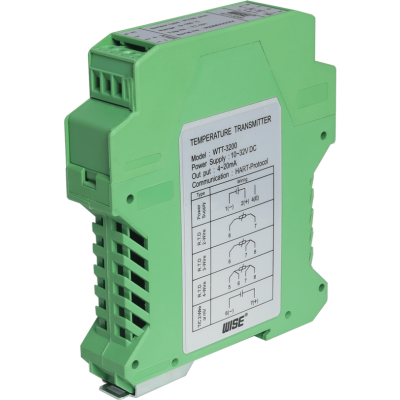

WTT-3100, WTT-3200_Temperature transmitter
Service intended
Temperature transmitters are designed to fit into a standard molded terminal heads used on RTD and thermocouple assemblies to provide a 4~20 mA transmission signals.
It is a cost effective solution for all temperature measuring process. It is accurate, durable and reliable. Numerous configurations for measurement in many deferent mediums are offered. Generally the transmitter produces a linear 4~20 mA output carried on a two-wire system.
The transmitter is supplied factory calibrated, but also has zero and span potentiometers for a field adjustment.
Standard features
| Power supply | 10~32 V DC | |
| Input | Thermocouple : K, E, N, T, J, B, R, S RTD : Pt 100 Ω at 0 ºC | |
| Output | 4~20 mA with HART Protocol (HART Version : Revision 7 (Generic)) 4~20 mA | |
| Accuracy | See table “Sensor type, range and accuracy” | |
| Permissible ambient temperature | -40 ~ 85 ºC | |
| Humidity limits | 10~90% Relative humidity | |
| Programmable function setting | – Input signal type – Measuring range – Burnout Low/High setting | |
