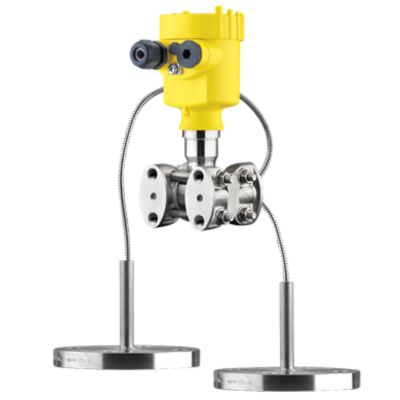

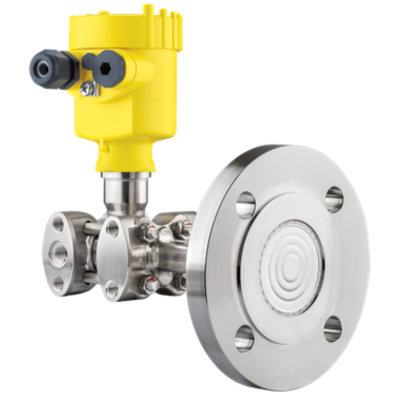

VEGADIF 85
Differential pressure measurement for all media
With metallic measuring diaphragm
Application area
For level measurement in superimposed pressure vessels and flow measurements in combination with effective pressure transducers. Further applications are pressure monitoring of filters as well as density and interface measurements.
The VEGADIF 85 is a universal differential pressure transmitter for measurement of liquids, gases and vapours. Typical application areas are level measurement in pressurized vessels as well as flow measurement in combination with effective pressure transmitters. Further applications are pressure monitoring on filters as well as density and interface measurements.
Your benefit
- High reliability through integrated overload diaphragm
- Measurement of very low differential pressures through high precision measured value detection
- Multivariable sensor through integrated measurement of the absolute pressure
Technical specifications
Measuring range – Pressure
- -40 … 40 bar [Bar – kPa – psi]
Process temperature
- -90 … 400 °C [°C – °F]
Process pressure
- -1 … 400 bar [Bar – kPa – psi]
Accuracy
- 0.065 %
Materials, wetted parts
- 316L
- Alloy C276 (2.4819)
- Gold
- Superduplex (1.4410)
Threaded connection
- ¼ – 18 NPT
Flange connection
- ≥ DN32, ≥ 1⅜”
Seal material
- EPDM
- FKM
- PTFE
- Copper
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Protection rating
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
Output
- 4 … 20 mA/HART
- Profibus PA
- Foundation Fieldbus
- 4 … 20 mA
Ambient temperature
- -40 … 80 °C
Approvals
Scope
- ATEX / Europe
- FM / USA
- IEC / worldwide
- UKR Sepro / Ukraine
- INMETRO / Brazil
- CSA / USA and Canada
- UKEX
Explosion protection
- Intrinsic safety “i”
- Flameproof enclosure “d”
- Dust ignition protection “t”
Ship approval
- DNV
- GL
Overfill protection
- WHG
- VLAREM II
SIL qualification
- SIL2
Display & adjustment
Adjustment
- PLICSCOM
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™, PDM)
- Bluetooth
Indication
- Display/adjustment module PLICSCOM
- VEGADIS 81
- VEGADIS 82
Documentation
Differential pressure
VEGADIF 85
Two-wire: 4 … 20 mA/HART
VEGADIF 85
Two-wire: 4 … 20 mA
