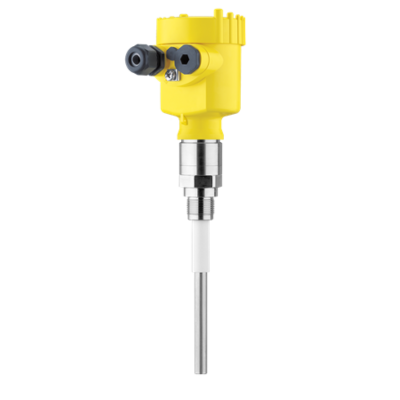

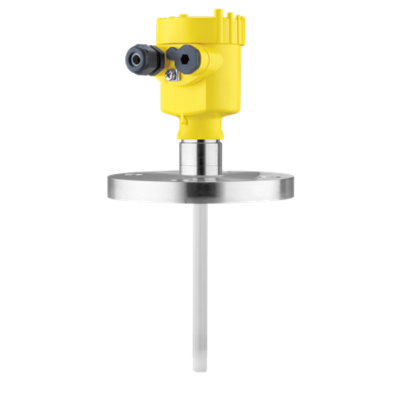

VEGACAP 63
Capacitive rod probe for level detection
Rod probe, fully PE or PTFE insulated
Application area
For liquids and bulk solids, non-abrasive, Sensor length up to 6 m
The VEGACAP 63 point level sensor can be used universalle for the measurement of non-abrasive liquids and bulk solids. The rod probe is fully insulated and the proven mechanical construction offers high functional safety.
Your benefit
- Simple planning due to variable switching point
- Savings through simple mounting and setup
- Long lifetime and low maintenance requirement through robust mechanical construction
Technical specifications
Measuring range – Distance
- – [Meter – Foot]
Process temperature
- -50 … 200 °C [°C – °F]
Process pressure
- -1 … 64 bar [Bar – kPa – psi]
Version
- PE insulation
- PE insulation and concentric tube
- PTFE insulation
- PTFE insulation with screening tube PN1
- PTFE insulation with screening tube PN16
- PTFE insulation with screening tube PN40
- PTFE insulation and concentric tube
Materials, wetted parts
- PTFE
- 316L
- Alloy C22 (2.4602)
- Alloy 400 (2.4360)
- PE
- Steel C22.8
Threaded connection
- ≥ G½, ≥ ½ NPT
Flange connection
- ≥ DN25, ≥ 1″
Seal material
- no media contact
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Protection rating
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
Output
- Relay (DPDT)
- Contactless electronic switch
- Transistor (NPN/PNP)
- Two-wire
Ambient temperature
- -40 … 80 °C
Approvals
Scope
- ATEX / Europe
- CSA / Canada
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC / worldwide
- NEPSI / China
- UKR Sepro / Ukraine
- CSA / USA and Canada
- CCC
Explosion protection
- Intrinsic safety “i”
- Flameproof enclosure “d”
- Dust ignition protection “t”
Foodstuffs/Pharma
- FDA
Ship approval
- ABS
- BV
- CCS
- DNV
- LR
- RINA
- RMROS
Overfill protection
- WHG
- VLAREM II
SIL qualification
- SIL2
Display & adjustment
Indication
- Pluggable display module PLICSLED
