S400 Series_Lantern type sight glass
Infomation

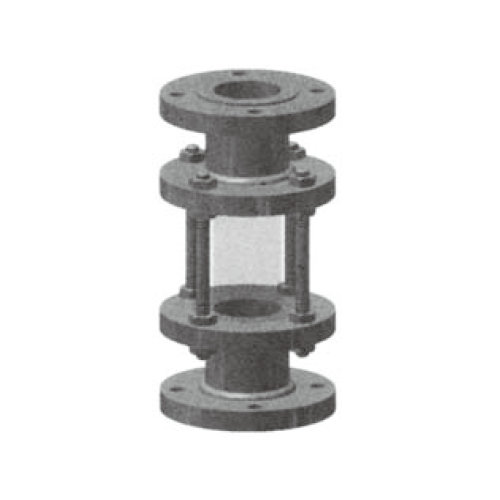

Lantern sight glass is used for low pressure, and can check the state of fluid flow from any direction.
Model : S400
| Connections | Flanged end |
| Max. pressure | 0.7 MPa |
| Max. temperature | 100 ℃ |
| Glass | Tempered |
| Body material | Carbon steel (Steel plate) 304SS (Stainless steel plate) 316SS (Stainless steel plate) |
Model : S410
| Connections | Flanged end |
| Max. pressure | 0.7 MPa |
| Max. temperature | 100 ℃ |
| Glass | Tempered |
| Body material | Carbon steel (Steel plate) 304SS (Stainless steel plate) 316SS (Stainless steel plate) |
