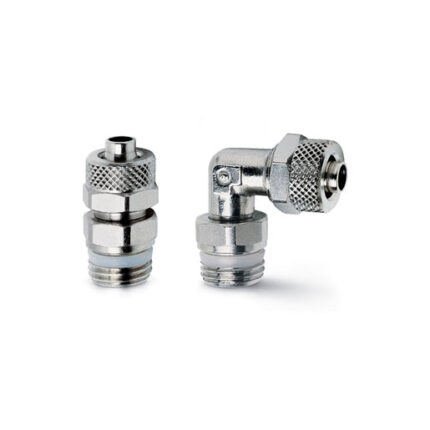

Rapid push-on fittings in 316L stainless steel
Series X1000 rapid push-on fittings can be easily installed. The push-on locking nuts can be tightened both manually and with a spanner even in case of stiffer tubes like PA or Hytrel Polyester. The shape of the special guiding cone ensures that the tube cannot be accidentally cut.
General Data
| Diameter | 6/4 – 8/6 – 10/8 – 12/10 |
| Thread | GAS conical ISO 7 (BSPT) |
| Temperature | -40°C ÷ +180°C NOTE: for a better use of the fitting we recommend to check the tubing specifications |
| Tube to connect | Polyamide (PA), Polyuethane (PU), Polyethylene (PE), PTFE, FEP, Hytrel Polyester |
| Medium | All fluids compatible with the fitting component materials |
| Materials | Body: stainless steel 316L Nut: stainless steel 316L |
| Operating pressure | The nominal pressure of the fittings is always higher than the pressure of the tube |
