Main features
- 5 RJ45 Ethernet ports
- Autosense
- Up-link port
Available resources
Brochure
– Automation platforms
– Gefran product range brochure
User Manual
– Installation and Operation manual
Datasheet
– R-SW5 datasheet
Catalogue
– 4.0 plastic application catalogue
Certifications
– UL Certifications – UL – GILOGIK II
Technical specifications
Overview

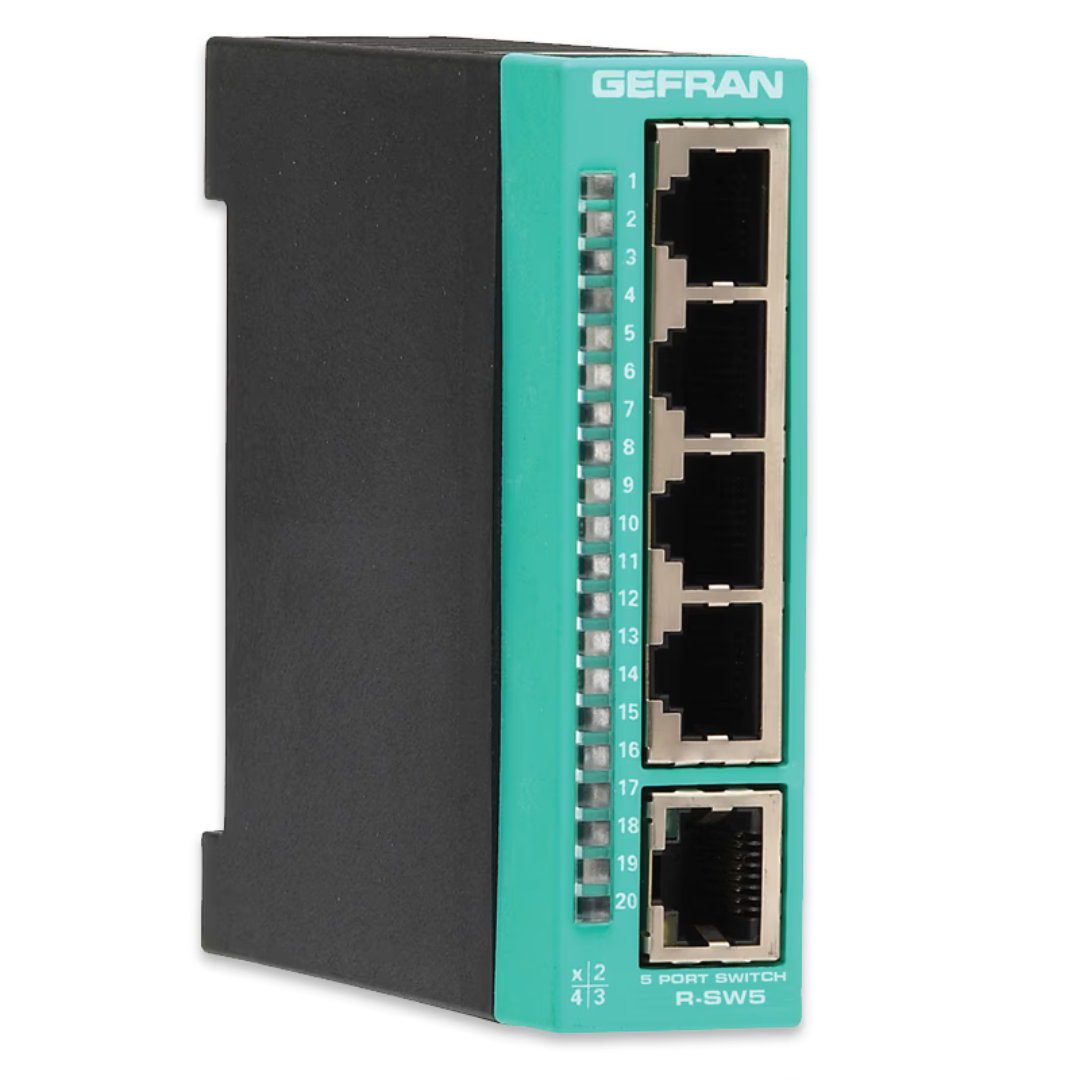

R-SW5 is a switch module with 4+1 Fast Ethernet ports (100 Mbps) that lets you expand GDnet for tree-type connection of multiple GILOGIK II systems.
It installs on series R_BUS(x) backplanes, from which it receives power (signal LED).
It is equipped with “autosense” ports that automatically switch to the correct transmission speed and can manage both pin-to-pin and crossover cables.
Each communication port has an RJ45 connector and two signal LEDs (link and data) for correct diagnostics.
