Main features
- Complete control of R-BUS(x) backplane
- Ethernet interface, Modbus protocol over TCP
- Power supply of backplane
Available resources
Brochure
– Automation platforms
– Gefran product range brochure
Documentation – previous versions
– Driver
User Manual
– Installation and Operation manual
Datasheet
– R-ETM100 datasheet
Catalogue
– 4.0 plastic application catalogue
Certifications
– UL CERTIFICATIONS – UL – GILOGIK II – MGF FIELDBUS MODULES
– EAC CERTIFICATION
– UL Certifications – UL – GILOGIK II
Technical specifications
Overview

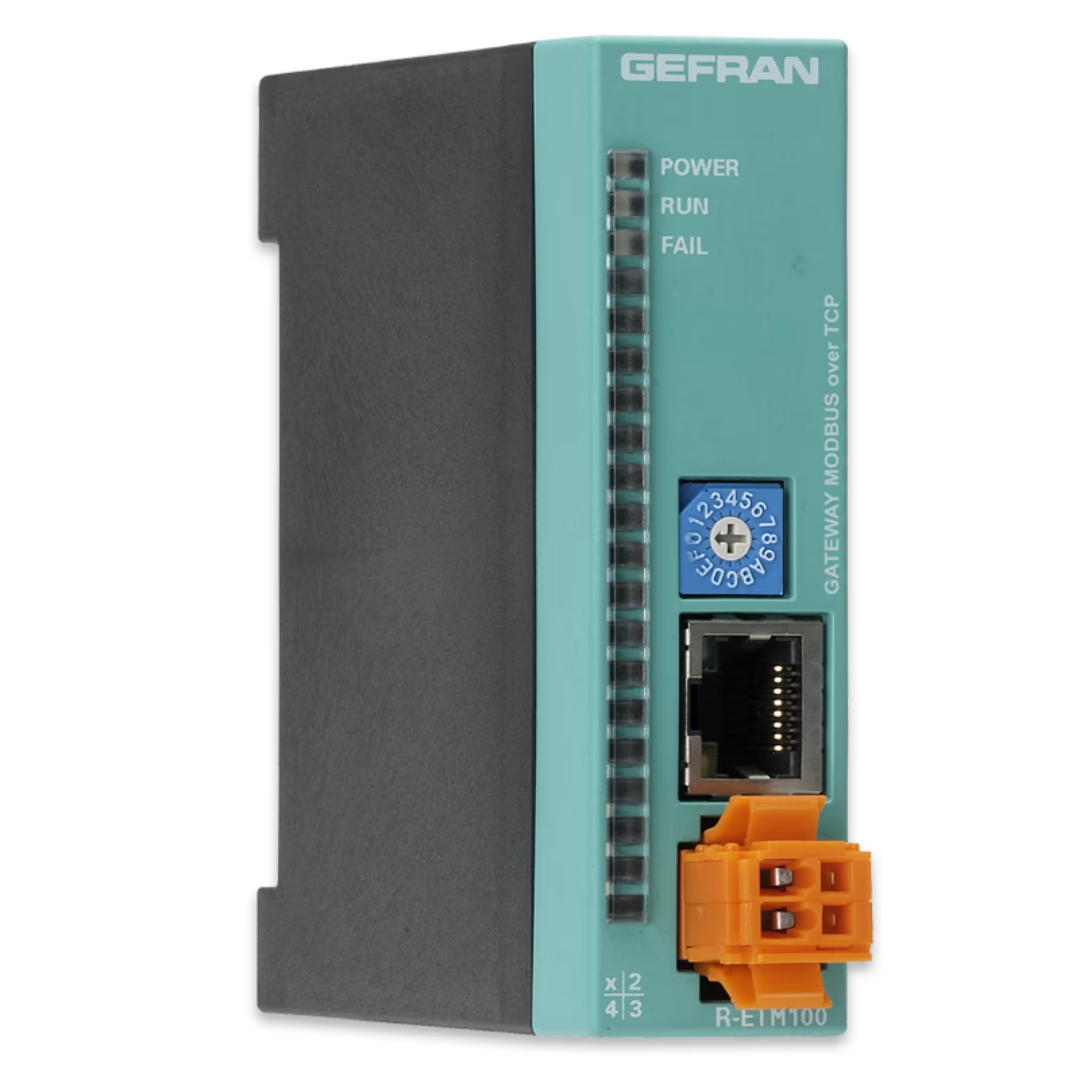

R-ETM100 is a Ethernet module with Modbus protocol over TCP.
It controls 100 Mbps communication with the operator terminal on one side and powers and controls the modules installed on the R-BUS(x) backplane on the other, acquiring data from all the I/Os.
It can control a maximum of 16 I/O modules.
The communication port has an RJ45 connector and two signal LEDs (link and data).
R-ETM100 is powered at 24 VDC via an extractable connector.
