Main features
- Installation: on R-BUS (x) backplane
- DB9 male connector
- 24VDC power supply
Available resources
Brochure
– Automation platforms
– Gefran product range brochure
Documentation – previous versions
– Driver
Datasheet
– R-GCANs datasheet
Catalogue
– 4.0 plastic application catalogue
Quick Start Guide
– Quick start guide – R-GCANs
User Manual
– R-GCAN – Installation and Operation manual (Software ver.1.0x)
– R-GCANs – Installation and Operation manual
Certifications
– UL CERTIFICATIONS – UL – GILOGIK II – MGF FIELDBUS MODULES
– UL Certifications – UL – GILOGIK II
Technical specifications
Overview

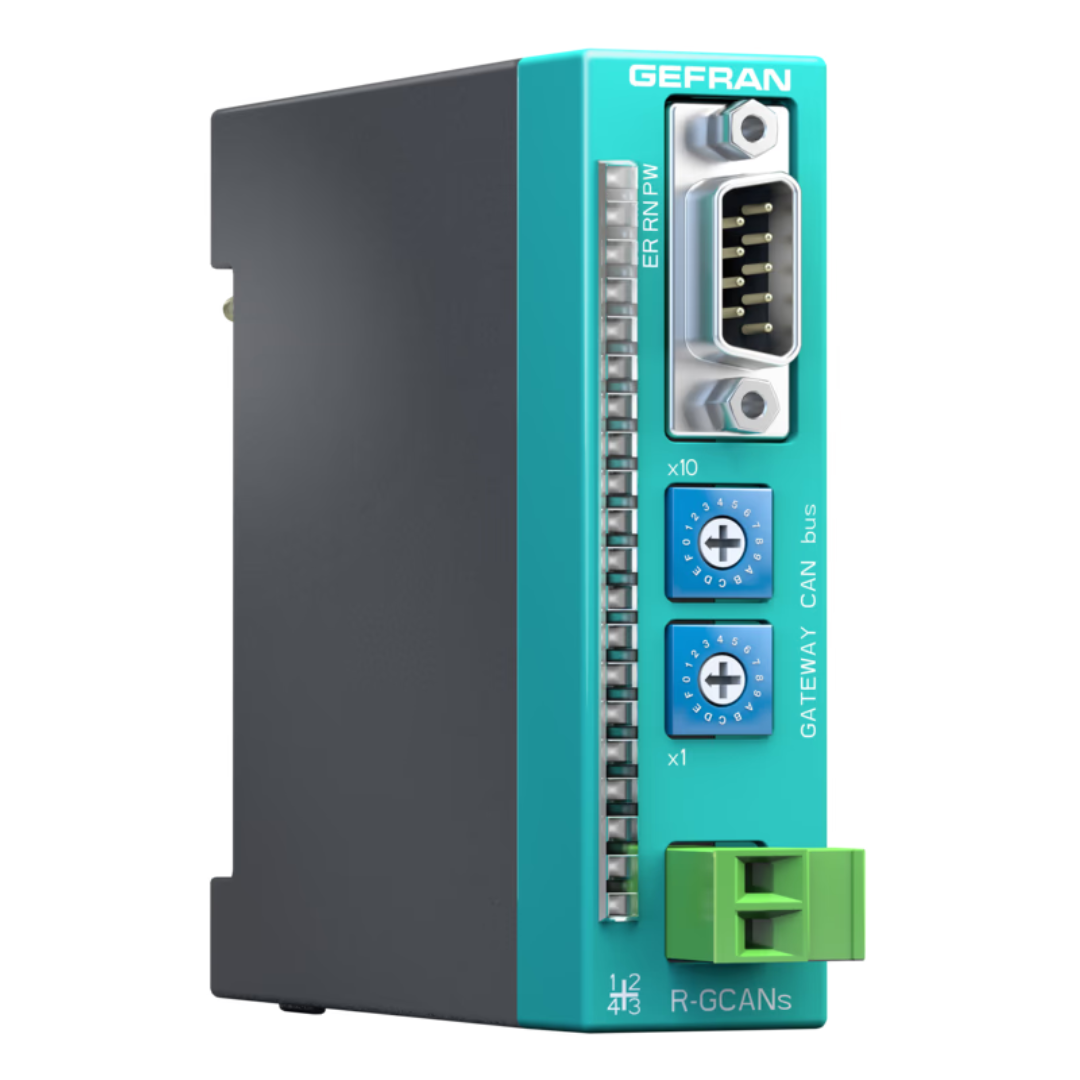

R-GCANs is a communication module with CANopen protocol for the GILOGIKII family.
It has 1 CAN channel to control 1 GILOGIK II node with a maximum of 16 I/O modules.
It interfaces with any device equipped with CANopen DS301.
Maximum communication speed is 1 Mbaud configurable via software.
The numbering of slaves up to 99 gives a total potential of approx. 25,000 I/O on the CAN network. R-GCANs provides power to the entire GILOGIK II node.
The GILOGIKII node is configured by means of the Grafinet Studio package, a simple and intuitive tool that generates node composition. R-GCANs is supplied complete with EDS configuration files.
