Main features
- Inputs for devices with SSI interface
- Indication of position and speed
- Software configuration of inputs
Available resources
Brochure
– Automation platforms
– Gefran product range brochure
Catalogue
– 4.0 plastic application catalogue
Quick Start Guide
– Quick start guide – R-SSI4
Datasheet
– R-SSI4 – datasheet
Certifications
– UL Certifications – UL – GILOGIK II
Technical specifications
Overview

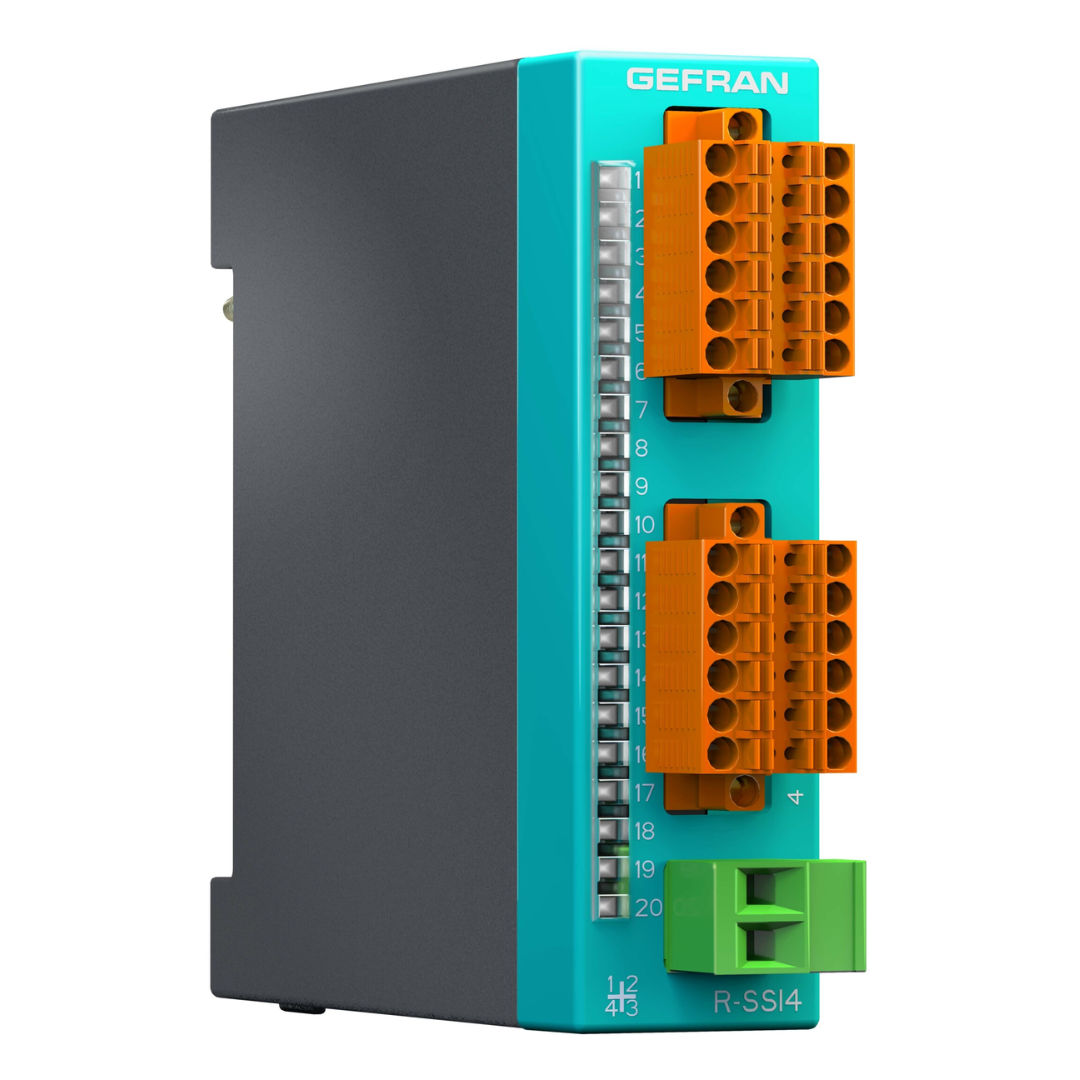

R-SSI4 is a module with 4 optoisolated SSI channels.
For each channel it is possible:
– program operating mode: frequency of the output SSI clock (from 10kHz to
2MHz), number of transmission bits (24, 25 or 32) and encoding of the input data (binary or Gray)
Each channel has:
– 2 terminals for the DATA signal
– 2 terminals for the CLOCK signal
– 2 terminals for sensor power supply
– 2 LEDs to signal the status of the inputs and outputs
Two 12-pole push-in connectors are available for wiring the 4 channels.
The module (powered externally by a special front connector) supplies power to the individual connectors. The R-SSI4 is installed on the backplanes of the R-BUS(x) series, from which it receives its power supply.
