Main features
- 16 digital inputs 24 Vdc
- PNP optically isolated Inputs
- Filters selectable individually via software
Available resources
Brochure
– Automation platforms
– Gefran product range brochure
User Manual
– Installation and Operation manual
Datasheet
– R-E16 datasheet
Catalogue
– 4.0 plastic application catalogue
Certifications
– UL Certifications – UL – GILOGIK II
Technical specifications
Overview

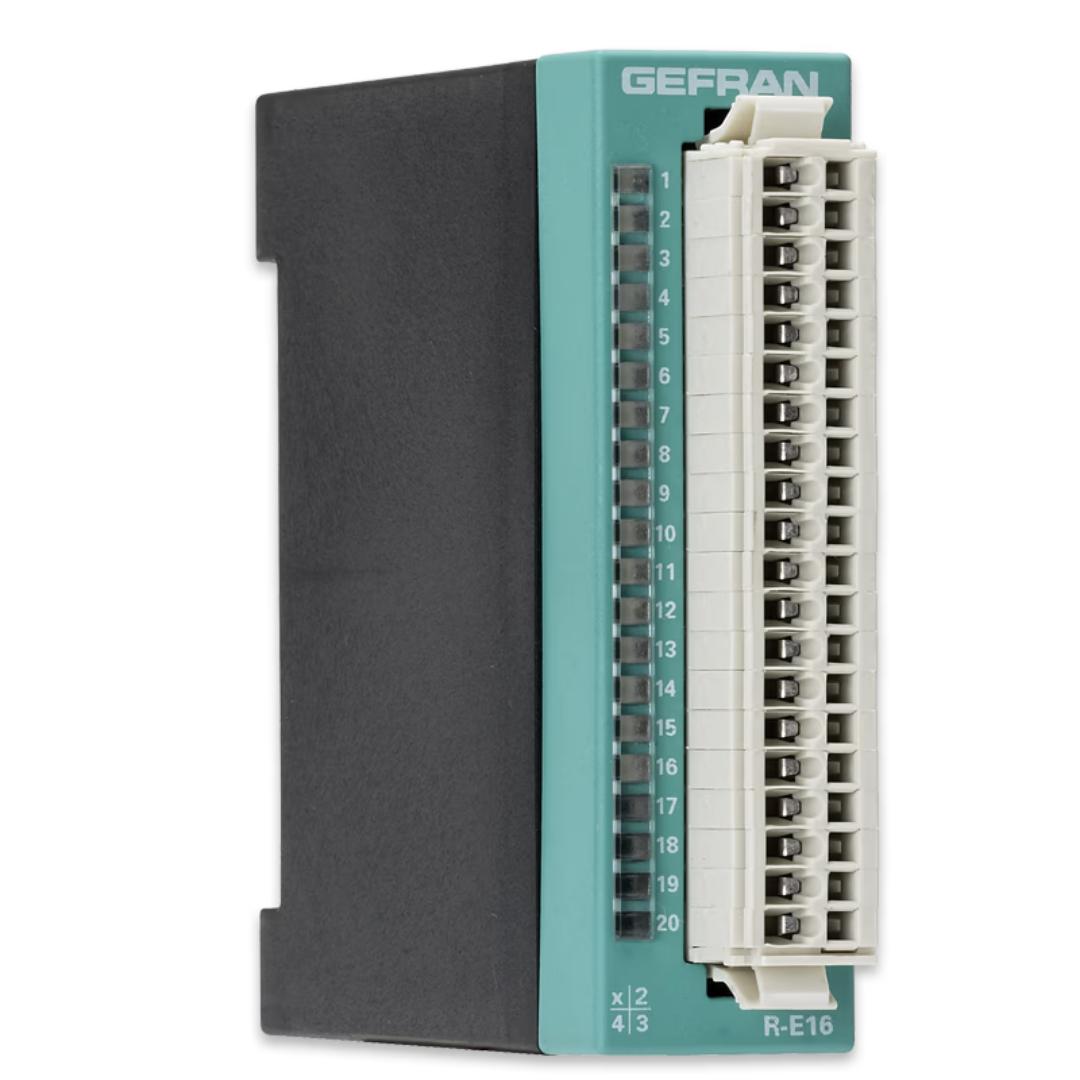

The R-E16 module has 16 optically isolated digital inputs, 24 VDC, PNP, and acquires logic signals from proximity sensors, drives, etc. It is installed on the backplanes of the R-BUS(x), from which it receives auxiliary power supply (LED).
Each input is protected against inversion of polarity and has signal LEDs to indicate its state.
Each has a twin input filter (10 ms or 200 µs selectable via software) and be controlled individually at interrupt with front selectable via software.
