Main features
- Installation on R-BUSxx backplane
- Eight 24V 20mA inputs
- Eight outputs from 2A max.
Available resources
Brochure
– Automation platforms
– Gefran product range brochure
User Manual
– Installation and Operation manual
Datasheet
– R-EU16 datasheet
Catalogue
– 4.0 plastic application catalogue
Certifications
– UL Certifications – UL – GILOGIK II
Technical specifications
Overview

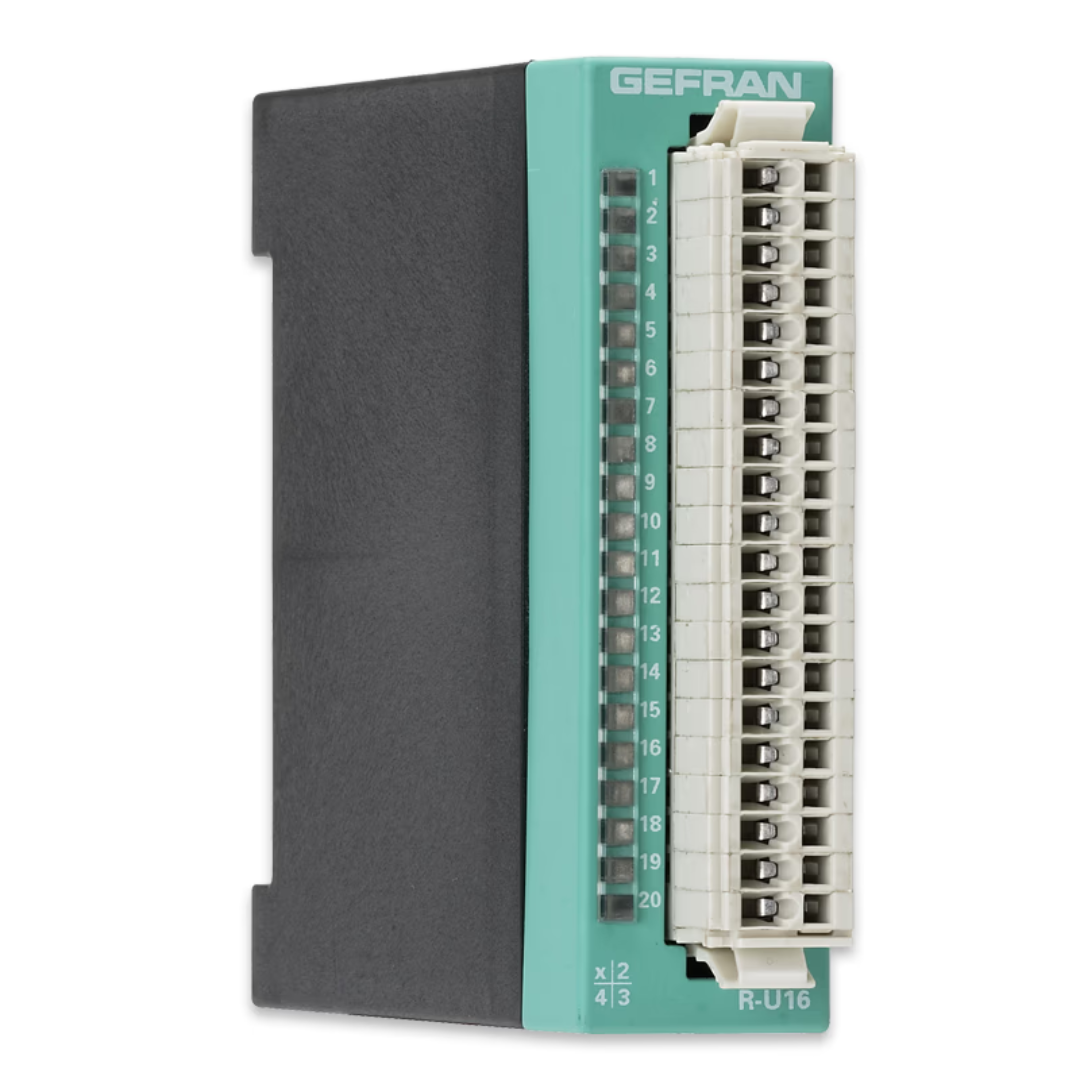

The R-EU16 is a mixed module with 8 digital inputs and 8 digital outputs, used for completing system configuration with a single board and/or for saving space on the backplane.
The 24V PNP inputs have a software-programmable filter.
The module is organized in 8 inputs + common GND.
Input presence is signaled by lighting of the green LED.
The module is organized in 2 groups of 4 outputs.
The PNP outputs have current recycle circuitry for inductive loads and are protected against short circuits, overload, and overheating.
Tripping of the protection is signaled by a red LED.
