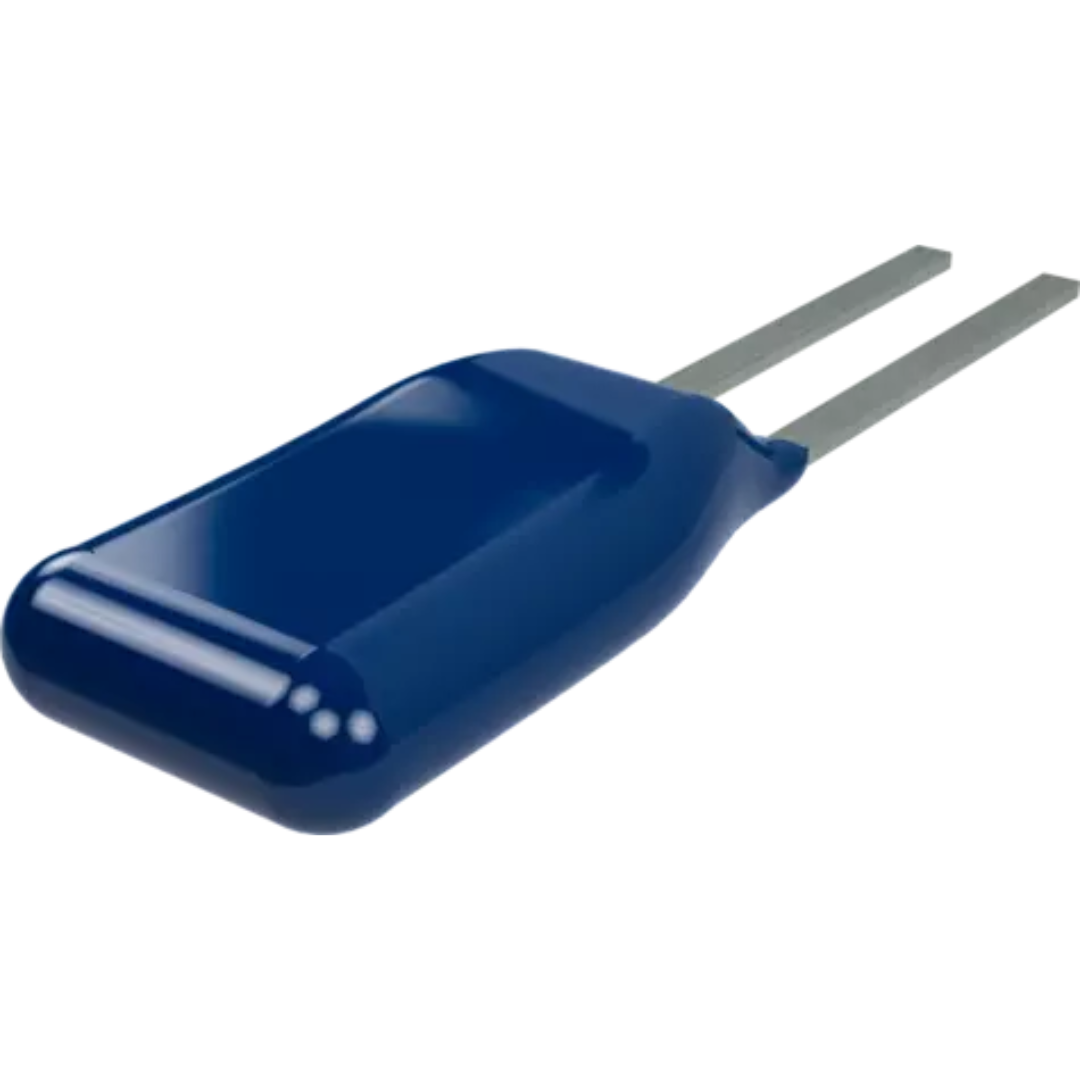

Platinum-chip temperature sensors PCWC-A-SnCu
Platinum-chip temperature sensors of the PCWC design type are especially suited for various probes in the heating, ventilation, and air-conditioning industry; the temperature sensor may also be openly positioned in the air flow with nothing surrounding it. The sensors are available as Pt100 and Pt1000.
Technical data
| general technical data | |
|---|---|
| Design type | PCWC-A-SnCu |
| Standard | DIN EN IEC 60751 |
| Temperature range | -30 to +105 °C |
| Temperature coefficient | α = 3.850 × 10-3 °C-1 (between 0 and 100 °C) |
| Connection | Rigid terminal clamps |
| Processing | Soft soldering |
| Advantages | Protection against moisture and condensation, standardized nominal values (Pt100, Pt1000), standardized tolerances, high degree of measuring accuracy, high long-term stability, very good reproducibility of electrical properties |
| Areas of application | Heating, ventilation, and air-conditioning (HVAC) |
