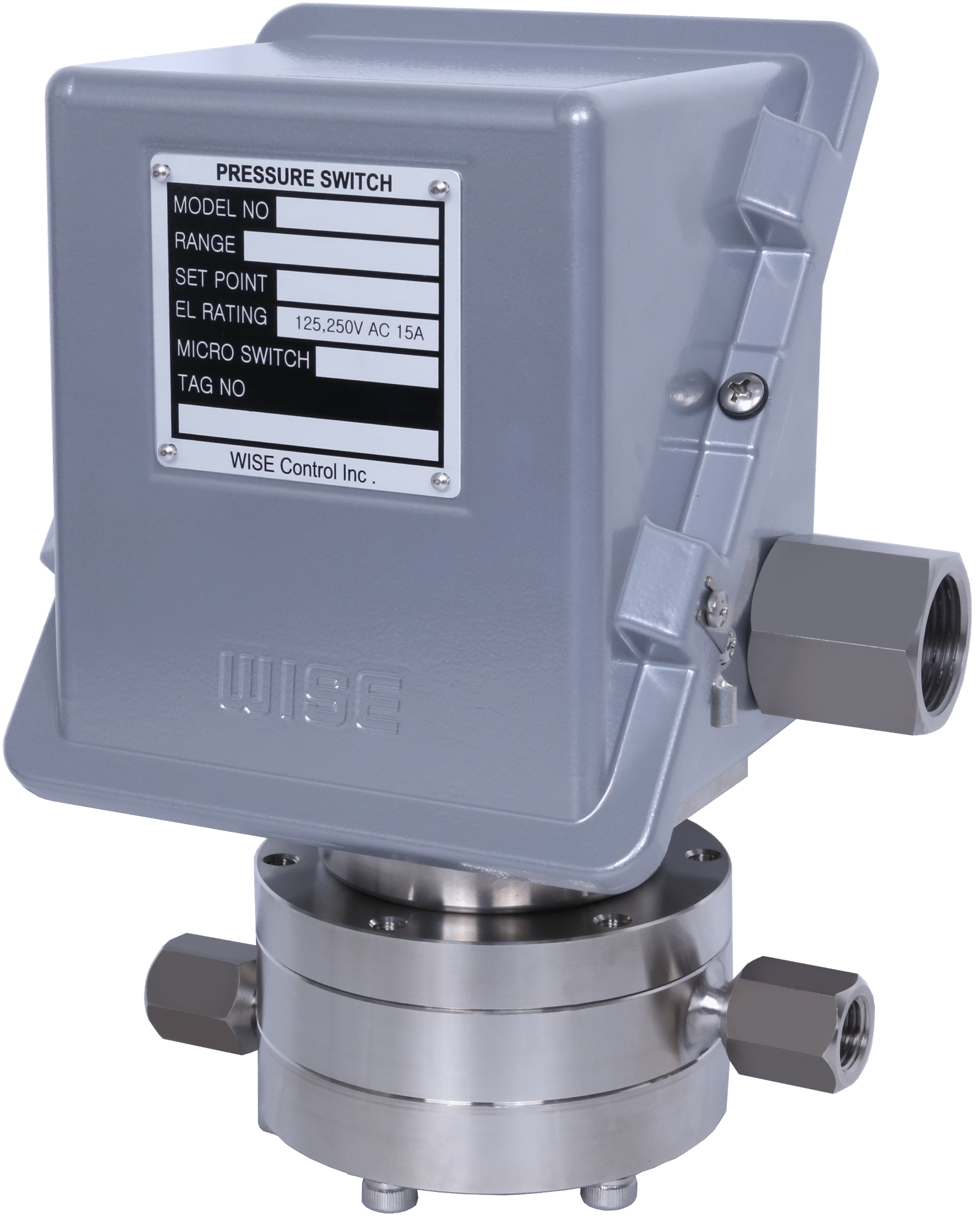

P946 Series_Weatherproof type differential pressure switch
Service intended
P946 diaphragm type differential pressure switch can be used in a variety of process lines. Internal micro switch is operated by pressure of various fluids, such as atmospheric pressure and water pressure. The pressure sensing part is a force balanced and piston actuated assembly.
| Fluid | Gas and oil |
| Repeatability | ±1.0 % of adjustable range |
| Adjustable range (mbar, kPa, bar, MPa) | 15 kPa to 0.4 MPa |
| Dead band | Fixed One SPDT : Approx. 5 % of adjustable range Two SPDT : Approx. 10 % of adjustable range |
| Working temperature | Ambient : -20 ~ 65 °C Fluid : Max. 100 °C |
| Degree of protection | EN60529/IEC529/IP65 |
Standard features
| Pressure connection | Stainless steel (316SS), Monel and Hastelloy-C |
| Element | Stainless steel (316L SS) |
| Case and cover | ALDC 12.1 (Silver gray finished) |
| Contact | Micro contact type One SPDT Two SPDT (Only available with single setpoint) |
| Contact rating | SPDT contact rating AC 125 V / 250 V, 15 A DC 125 V, 0.4 A for resistance load DC 125V, 0.03 A for inductive load |
| Conduit connection | ¾” NPT (F) |
| Process connection | ¼” NPT (F) |
| Option | Bracket : 304SS and 316SS Wall mounting bracket Remote diaphragm seal |
