Main features
- Pressure ranges from: 0-35 to 0-1000 bar / 0-500 to 0-15000 psi
- Accuracy: < ±0.25% FS (H); < ±0.5% FS (M)
- Autozero function on board / external option
Available resources
Brochure
– Melt pressure sensors
– Gefran product range brochure
Datasheet
– KE Datasheet
User Manual
– Manual of electrical installation for pressure probes
– Pressure Sensors for high temperature – User Manual
Technical Articles
– Kunstoffemagazine 12/2010: Schmelzedruckmessung mit neuem Impuls
Catalogue
– 4.0 plastic application catalogue
Certifications
– UK Conformity declaration – Melt K over 500bar
– Conformity declaration EU – Melt K min 500bar
– Conformity declaration EU – Melt K over 500bar
– GTP+ FDA Certificate
Technical specifications
Overview

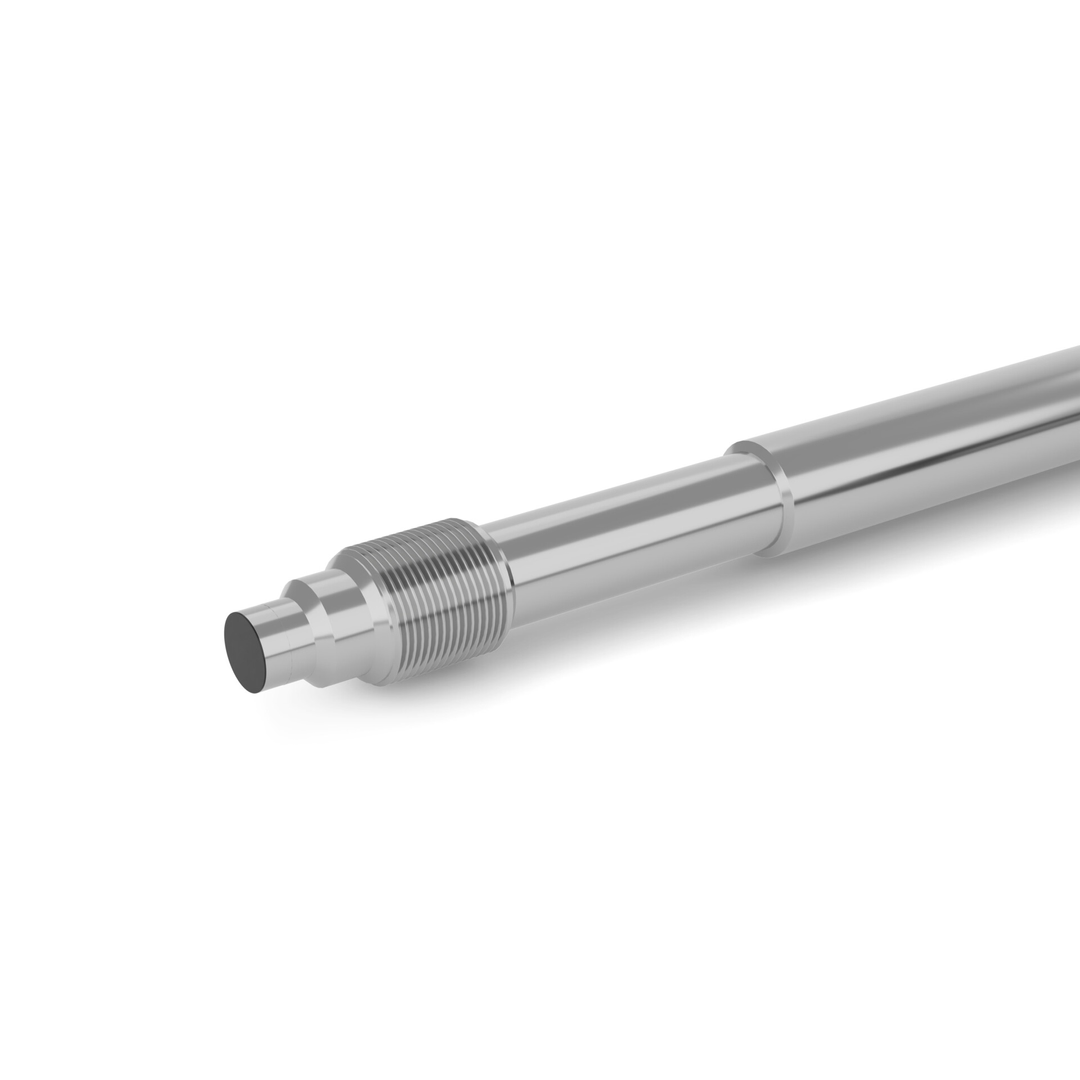

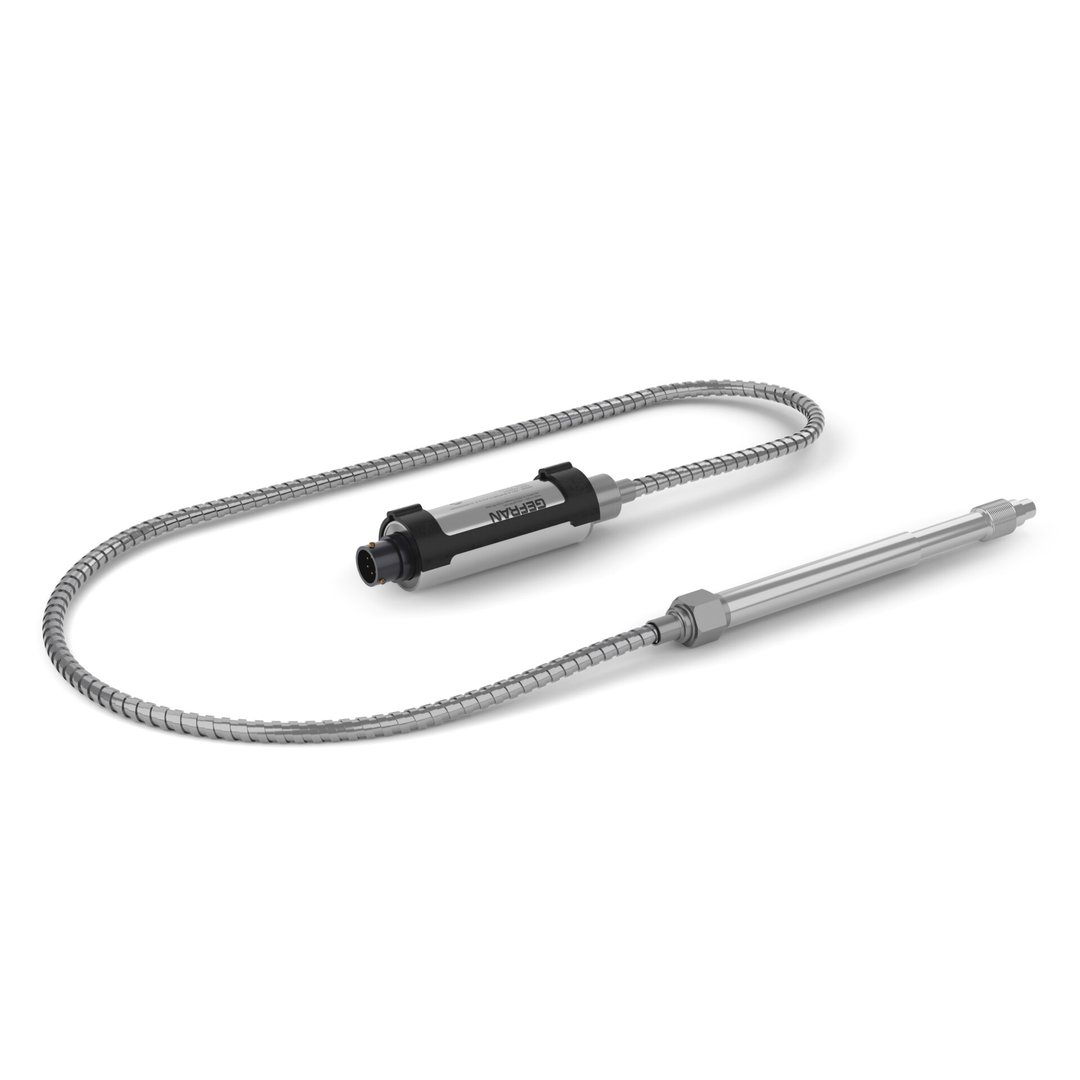

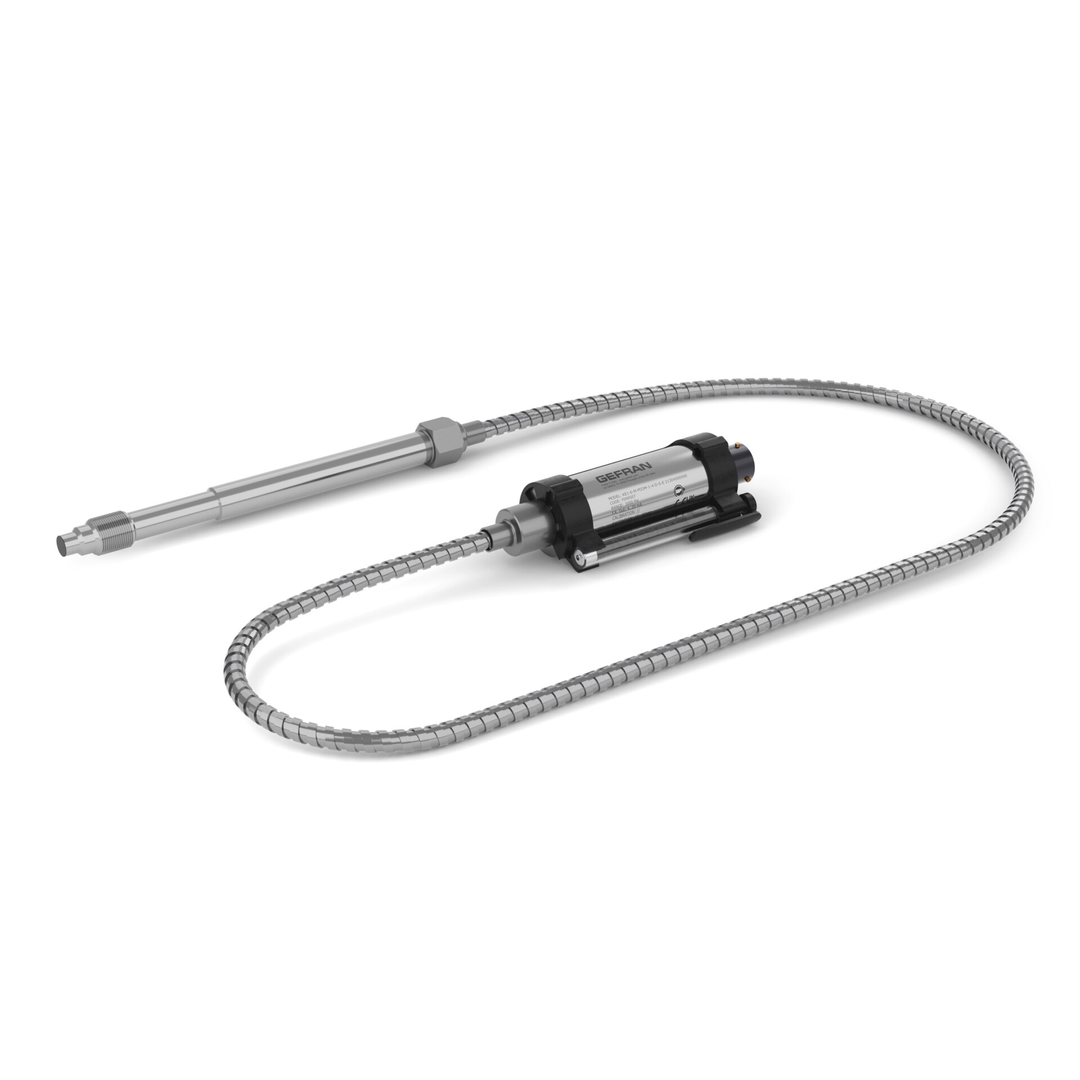

The KE Series are pressure sensors for use in high temperature applications where the process temperatures may reach 538°C (1000°F) such as high temperature engineered polymers.
The K Series utilizes standard melt pressure principles and construction; strain sensing technology is bonded foil strain gage.
The uses a near incompressible NAK (Sodium Potassium) for pressure transmission.
NaK is FDA recognized safe (GRAS) substance.
Application:
- As for FDA approval, K series is suitable for Mercury free , food and medical application
- Processing special polymers, technopolymers (538°C /1000°F)
