Main features
- Perfomance Level “C” compliance
- Pressure ranges: 0-10 to 0-1000 bar / 0-150 to 0-15000 psi
- Accuracy: < ±0.25% FS (H); < ±0.5% FS (M)
Available resources
2D/3D Files
– 9dc4cacf-415c-4661-98f3-00fafe77d475_IE1-M.zip
Datasheet
– IE Datasheet
Brochure
– Melt pressure sensors
– Impact – Flyer
– Gefran product range brochure
Technical Articles
– Kunststoffmagazin 9/06: Massedruckmessung für alle Fälle
– Kunststoffmagazin 10/08: Kosten senken in der PC-Extrusion
– Kunstoffemagazine 12/2010: Schmelzedruckmessung mit neuem Impuls
User Manual
– Manual of electrical installation for ptessure probes
– IE/IN/I3/IX/I7 – Instruction Manual
Catalogue
– 4.0 plastic application catalogue
Certifications
– UK Conformity declaration – Melt I PLc
– Performance Level ‘c’ Certification Impact series IE/17
– EU Conformity declaration_IMPACT PLC
– GTP+ FDA Certificate
Technical specifications
Overview

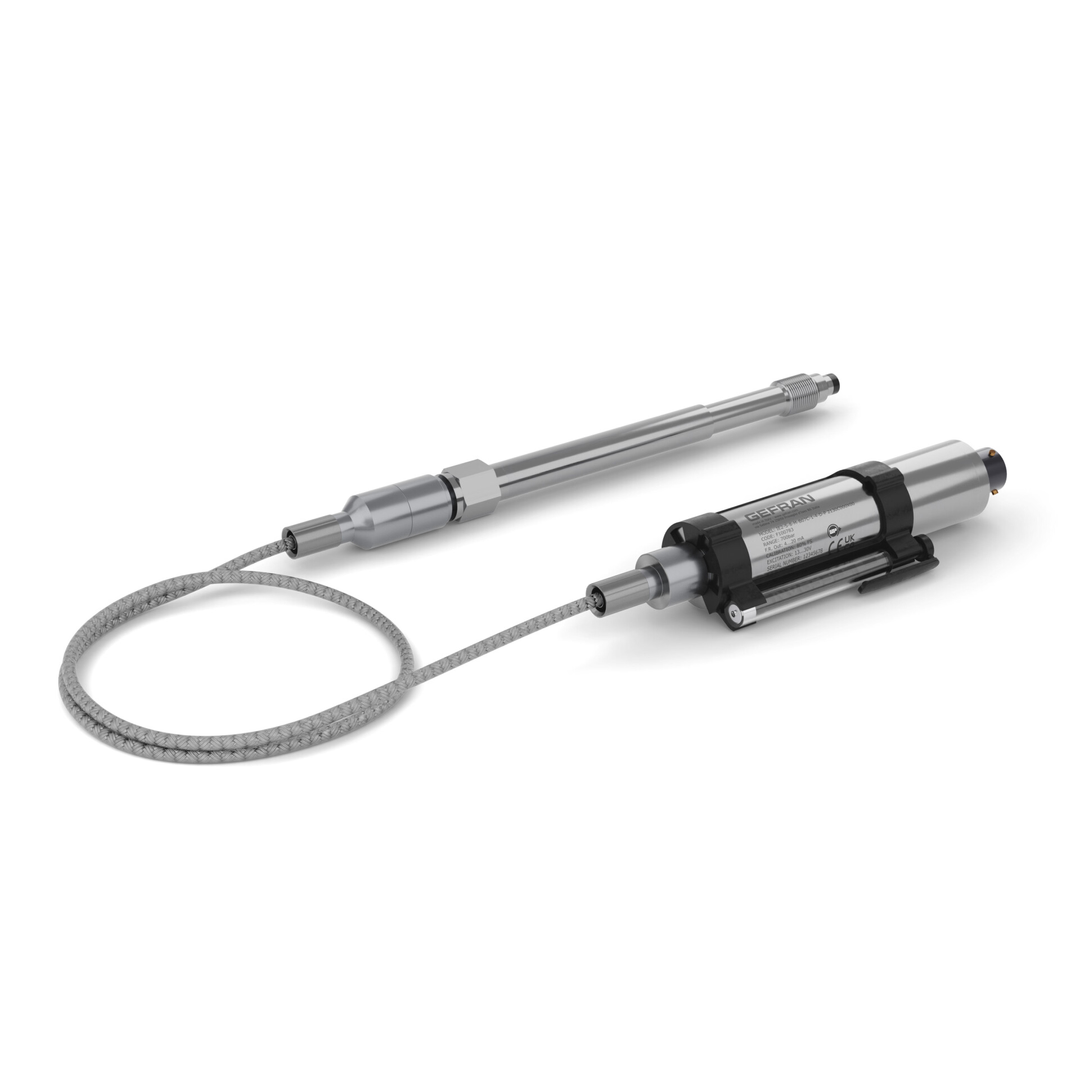

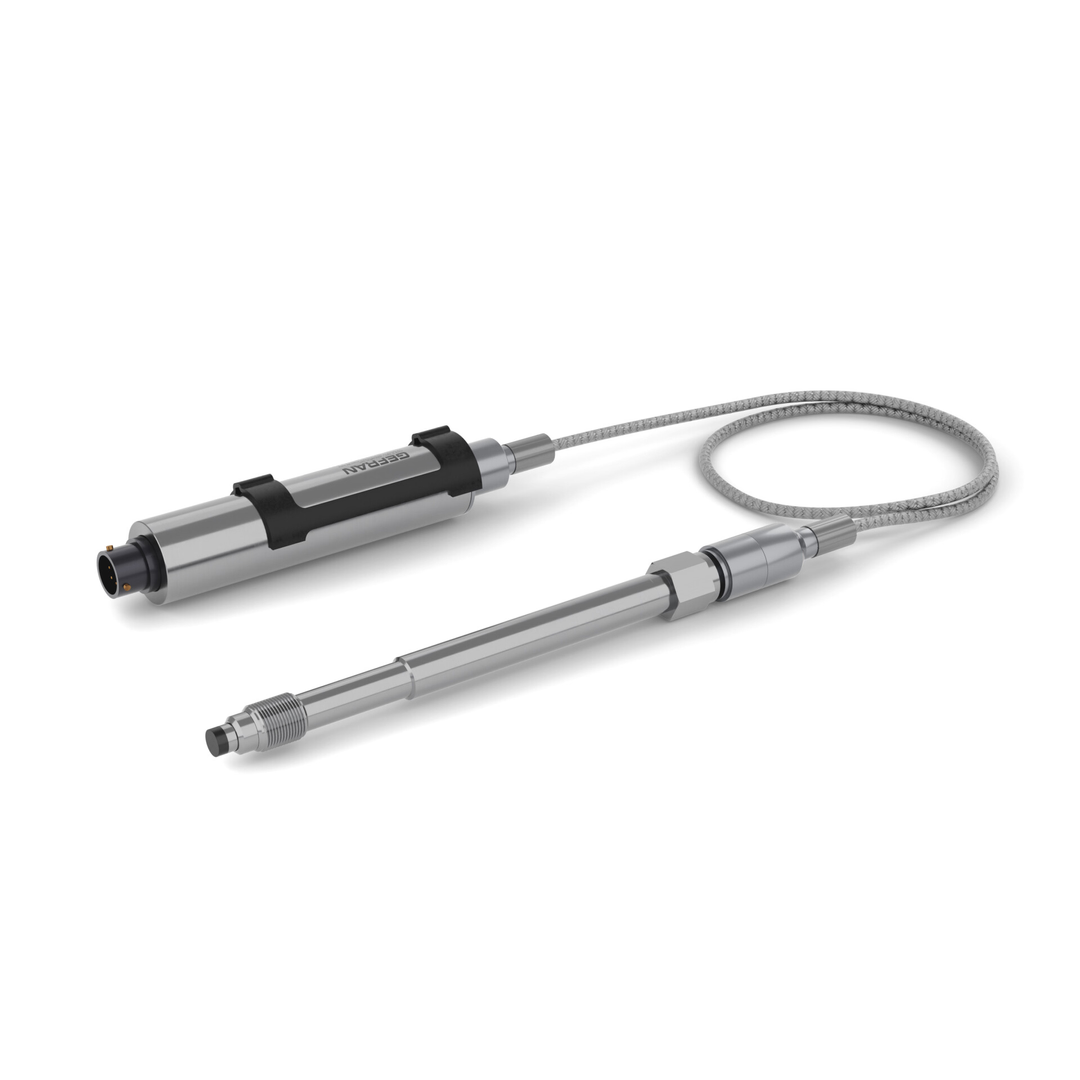

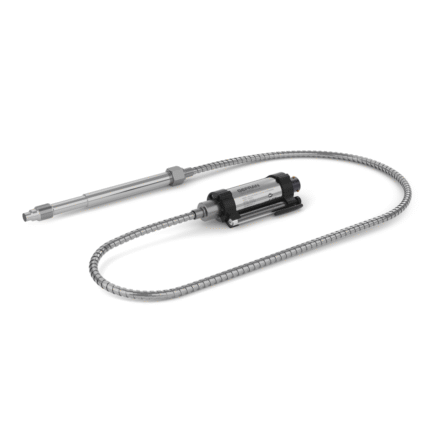

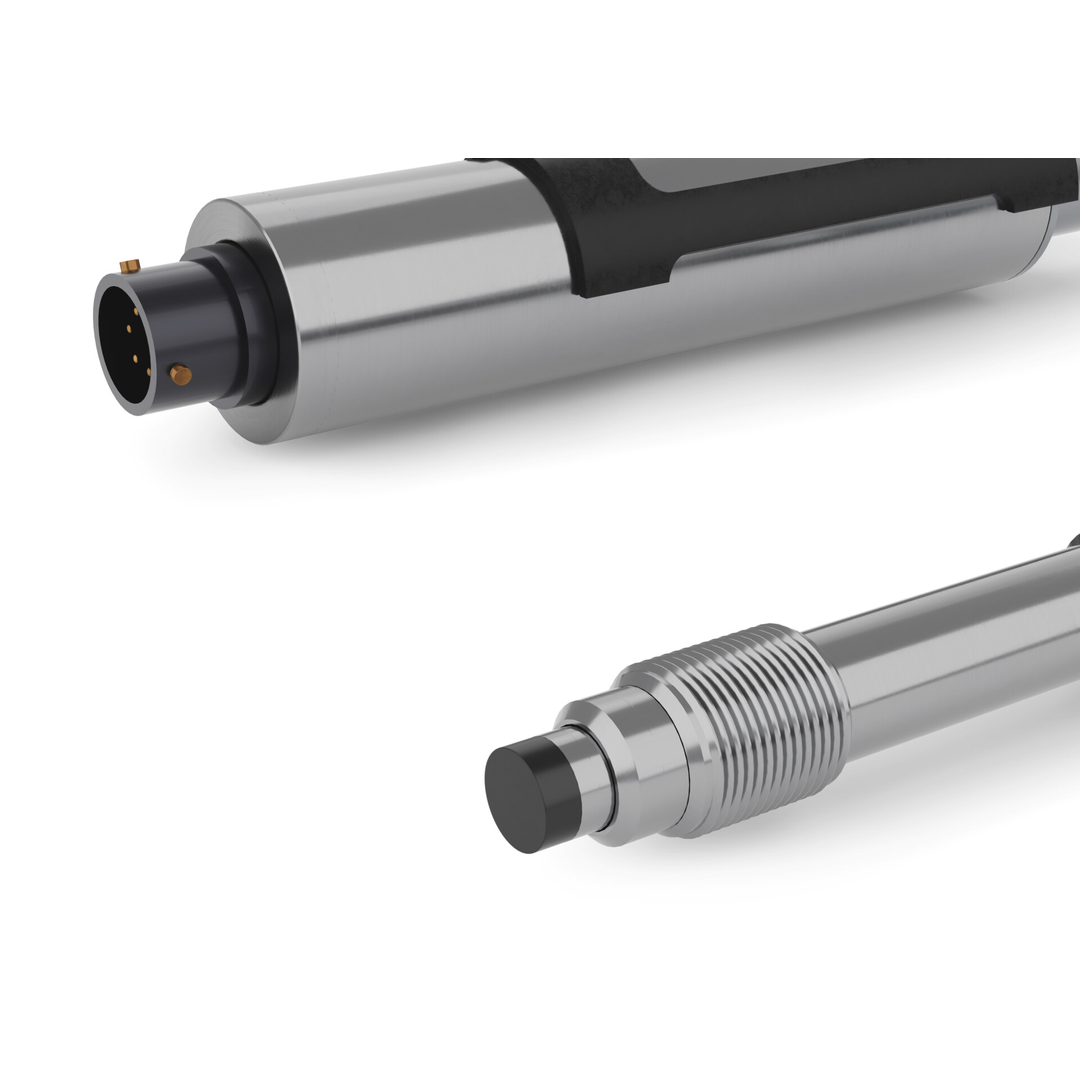

The “IMPACT” series of Gefran are pressure transmitters, without transmission fluid, for using in high temperature environment (350°C).
Medium pressure is transferred directly to the sensitive silicon element via a thick diaphragm.
Strain is transduced by a micro-machined silicon structure (MEMS). The operating principle is piezoresistive.
The micro structure includes the measurement membrane and piezoresistors.
The minimum deflection required by the sensitive element makes it possible to use very robust mechanics.
The process contact membrane can be up to 15 times thicker than the membrane used in traditional Melt sensors.
Application:
- As for absolute absence of filling fluid , the I series is the right choice for Mercury free, food and medical application.
- Superior wear reasistence: suitable with filled polymers
- High resistance to withstand to dynamic pressure
- High robustness towards the process :cold starts ,multiple installation
- Low thermal drift for Zero e Span signal : < 1%FS (20°C-350°C)
