Main features
- Pressure ranges from: 0-35 to 0-1000 bar / 0-500 to 0-15000 psi
- Accuracy: < ±0.25% FS (H); < ±0.5% FS (M)
- SIL2 approvals for Functional Safety
Available resources
Brochure
– Melt pressure sensors
– Gefran product range brochure
Catalogue
– 4.0 plastic application catalogue
Datasheet
– K7 SIL2 DATASHEET
User Manual
– M-K-W SERIES SIL2 USER MANUAL
Certifications
– Melt SIL2 Certification
– EU Conformity declaration K series FS min 500bar SIL 2
– EU Conformity declaration K series FS over 500bar SIL 2
Technical specifications
Overview

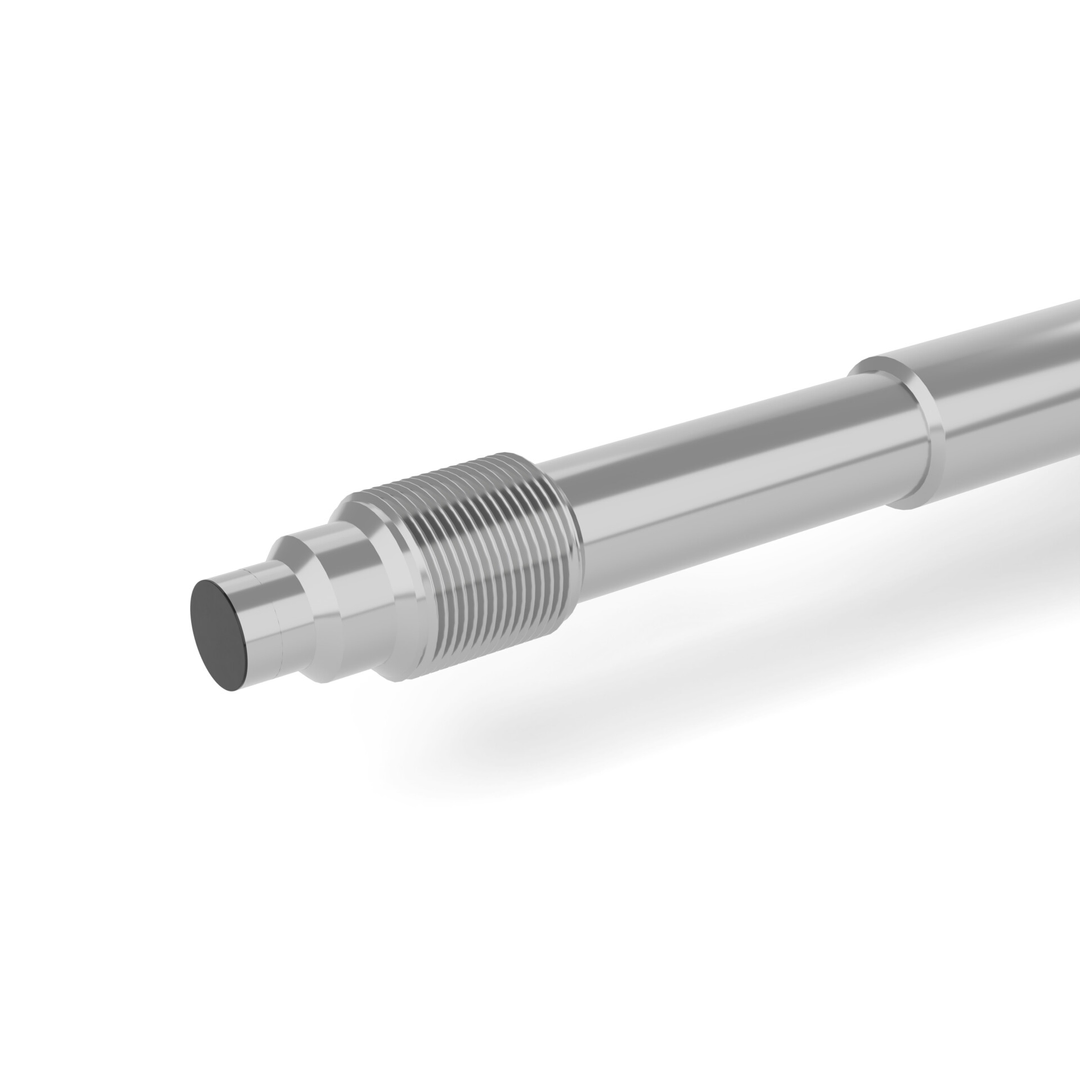

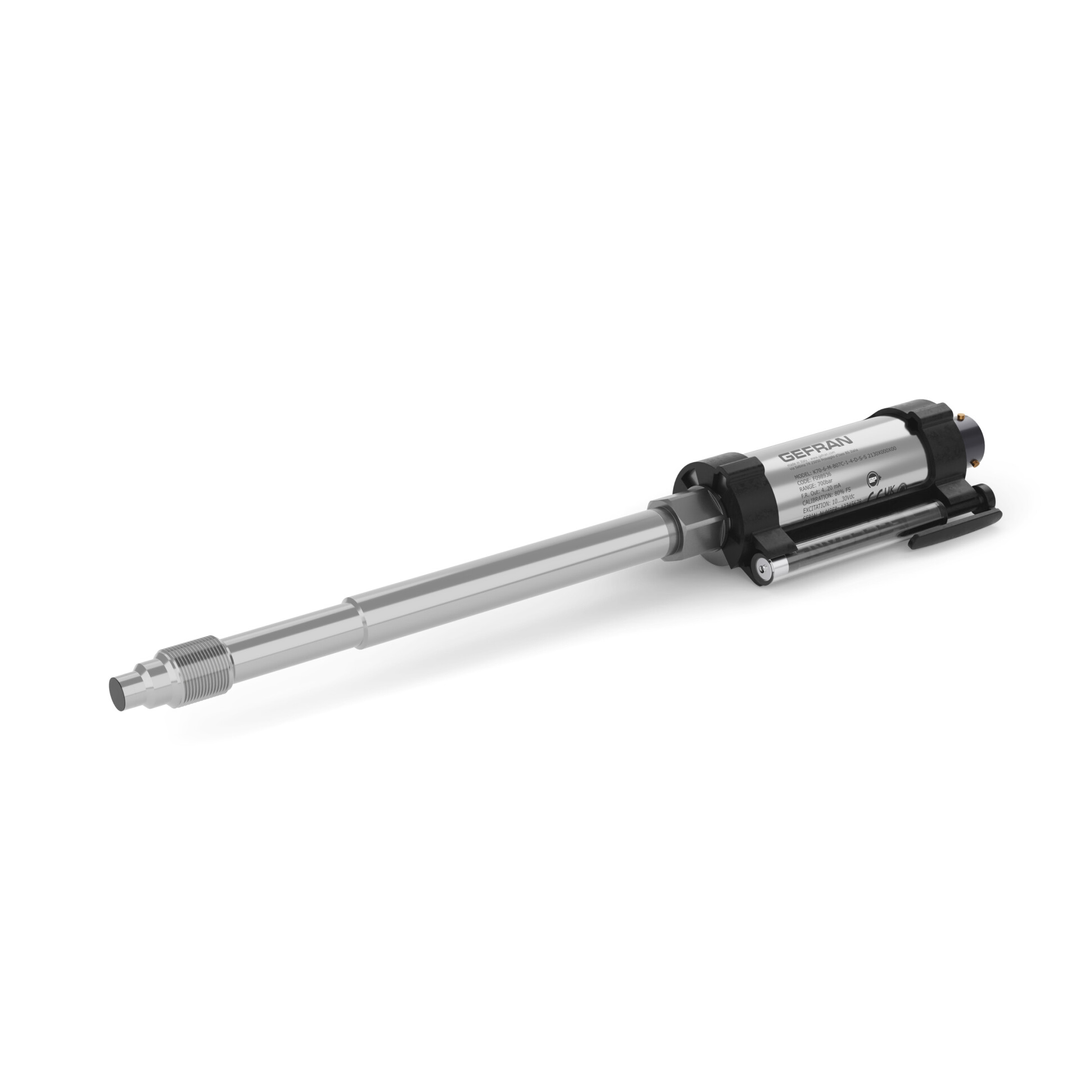

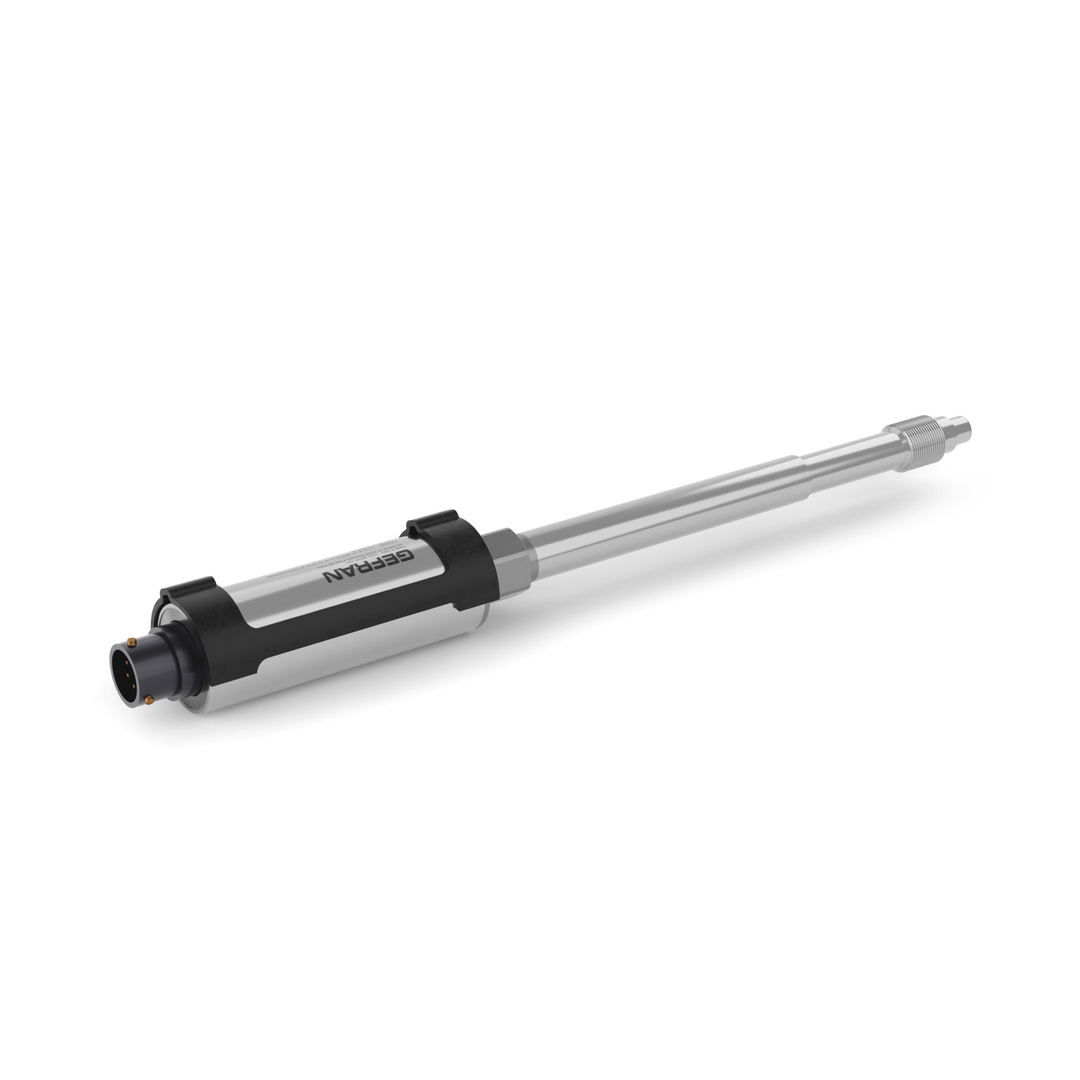

The K7 Series are for use in high temperature applications where the process temperatures may reach 538°C (1000°F) such as high temperature engineered polymers. This series utilizes standard melt pressure principles and construction, but uses a near incompressible (NAK Sodium Potassium) for pressure transmission. The phisical quantity is transformed in a electrical measure by means the thick film strain-gauge technology. The SIL2 certified version makes the product suitable for use in the Functional Safety applications, particularly in the process plants for the production of polymers, where it is an essential requirement.
