JUMO VIBROtemp

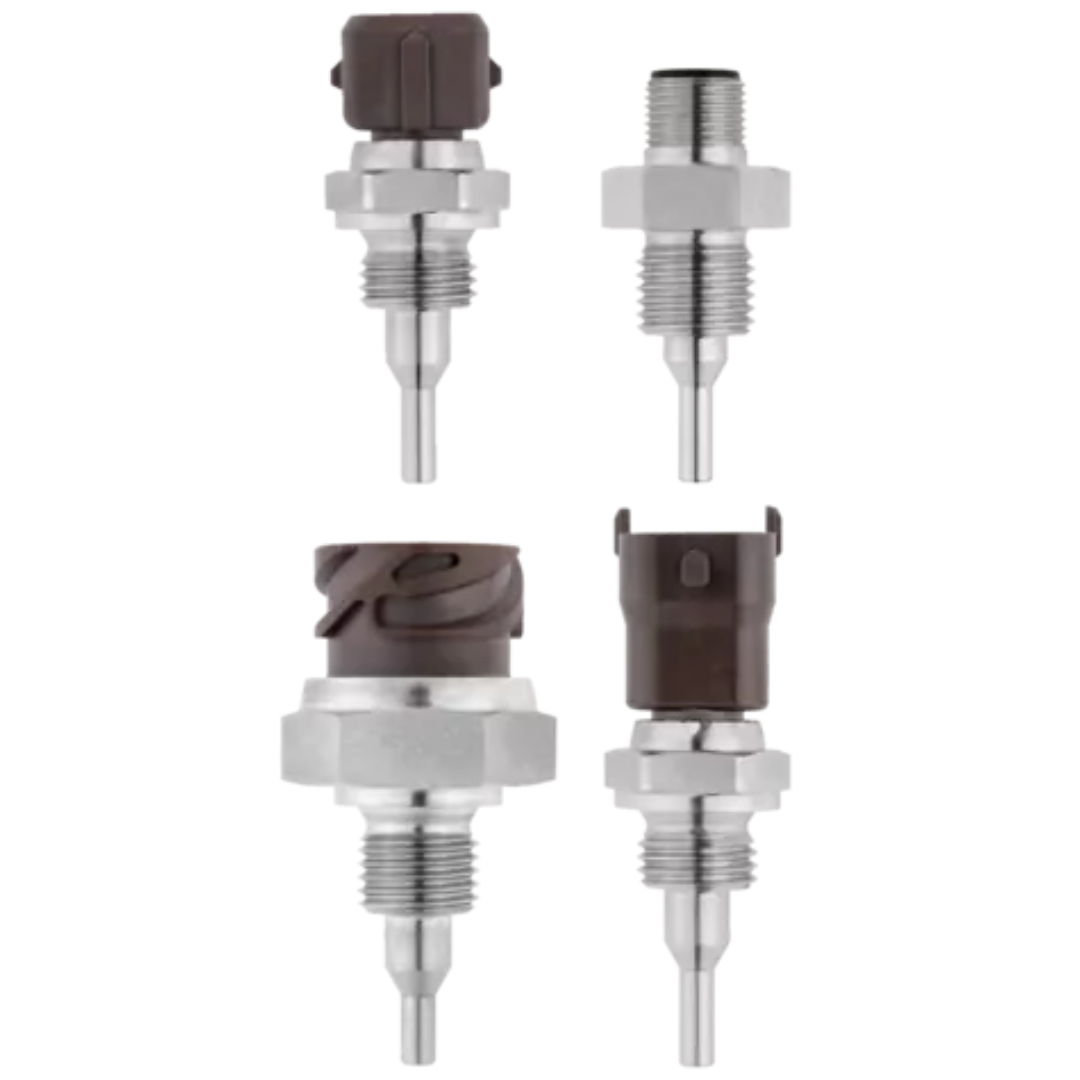

The screw-in RTD temperature probes of the VIBROtemp series are reliable –even under pressure– at measuring the correct temperature in commercial vehicles, construction machinery, agricultural machinery, motors, compressors, and in many areas from the railway technology field. Use in hydrogen applications is possible. Different plug connections are available to suit the specific application area.

Technical data

general technical data
Special featuresVibration resistant
Process connectionThread M14
ConnectionConnector
Application areascommercial vehicles, compressors, engine manufacturing, railroad technology, mobile fuel cells (coolant circuit, AirLoop, H2Loop)
Protection fittingStainless steel, brass
Measuring circuits1
SensorPt100, Pt500, Pt1000
FeaturesHighly shakeproof
Operating temperature-50 to +300 °C
Protection typeIP65, IP69K
ApprovalsSIL, PL
