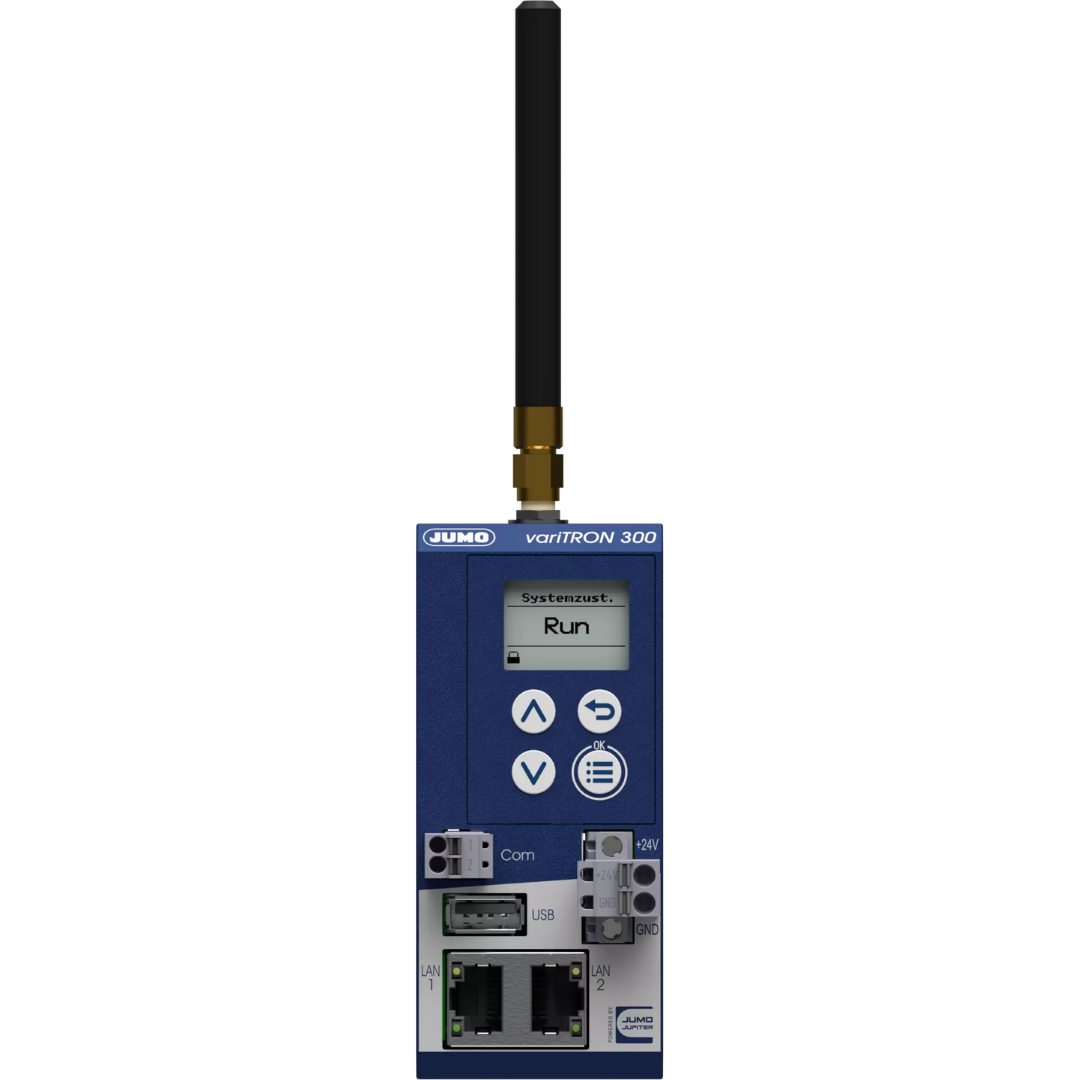

JUMO variTRON 300

JUMO variTRON 300 is a compact automation system. The central processing unit can also be used as a receiver for the wireless JUMO Wtrans sensors. A router module can be used to connect JUMO’s proven input and output modules and to set up an overall system with integrated PLC (CODESYS V3.5).

Categories: Automatisierung, PLC

Technical data
Downloads

Technical data

General technical data
Interfaces	1 USB host, 2 Ethernet, 1 RS485 Modbus RTU
Operation	Keys and LCD display, monochrome, 96 × 64 pixels (8 lines)
Option	PLC according to IEC 61131-3 (CODESYS V3.5); OPC UA server (in connection with PLC); EtherCAT master (in connection with PLC); applications with the programming environment Node-RED
Hardware	800 MHz single-core processor
Modules	A large selection of connection modules with high-quality, configurable analog inputs and reliable, independent PID controllers with autotuning function
Displays	Displays in various formats (portrait or landscape format, 4:3 or 16:9) can be connected; CODESYS Remote TargetVisu or CODESYS WebVisu
Connection possibilities	Connection modules via router module; JUMO digiLine sensors for liquid analysis; thyristor power controller (via EtherCAT); wireless signals from JUMO Wtrans sensors via integrated receiver (optional)
Control loops	Up to 32
Recording function	Up to 60 recording channels, up to 10 batches, up to 10 measuring groups, internal memory for 1 million measured values with manipulation detection
Special features	Flexible operating philosophy; many degrees of freedom in software and hardware; simple adaptation of hardware inputs and outputs; simple integration of new software functions via CODESYS PLC; integrated JUMO Web Cockpit; simultaneous operation of several control loops with autotuning function; integration of customer-specific parameters (CPV editor), optional recorder app for process data acquisition and evaluation

General technical data

Interfaces

1 USB host, 2 Ethernet, 1 RS485 Modbus RTU

Operation

Keys and LCD display, monochrome, 96 × 64 pixels (8 lines)

Option

PLC according to IEC 61131-3 (CODESYS V3.5); OPC UA server (in connection with PLC); EtherCAT master (in connection with PLC); applications with the programming environment Node-RED

Hardware

800 MHz single-core processor

Modules

A large selection of connection modules with high-quality, configurable analog inputs and reliable, independent PID controllers with autotuning function

Displays

Displays in various formats (portrait or landscape format, 4:3 or 16:9) can be connected; CODESYS Remote TargetVisu or CODESYS WebVisu

Connection possibilities

Connection modules via router module; JUMO digiLine sensors for liquid analysis; thyristor power controller (via EtherCAT); wireless signals from JUMO Wtrans sensors via integrated receiver (optional)

Control loops

Up to 32

Recording function

Up to 60 recording channels, up to 10 batches, up to 10 measuring groups, internal memory for 1 million measured values with manipulation detection

Special features

Flexible operating philosophy; many degrees of freedom in software and hardware; simple adaptation of hardware inputs and outputs; simple integration of new software functions via CODESYS PLC; integrated JUMO Web Cockpit; simultaneous operation of several control loops with autotuning function; integration of customer-specific parameters (CPV editor), optional recorder app for process data acquisition and evaluation
