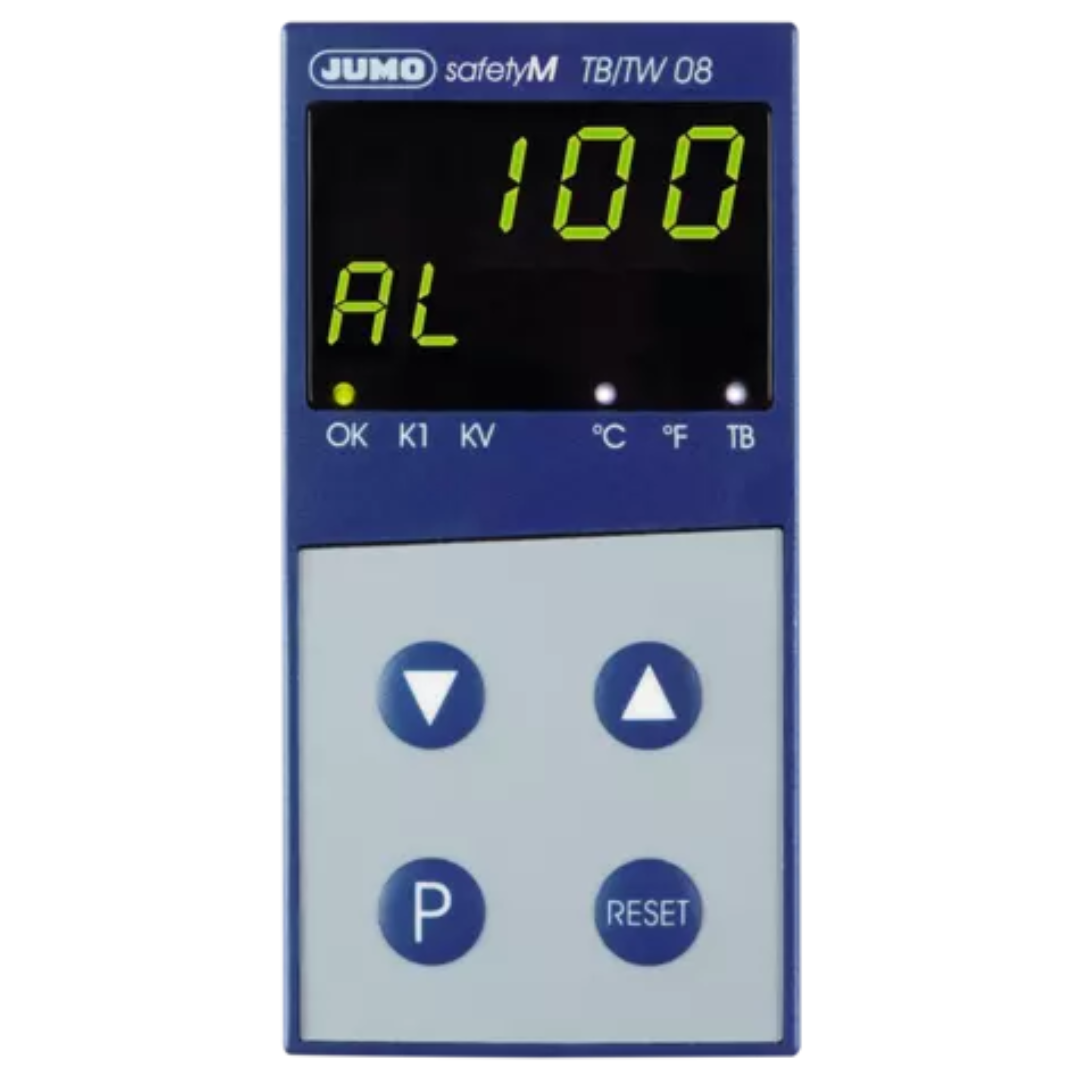

JUMO safetyM TB/TW08

The JUMO safetyM TB/TW08 is a user programmable temperature limitation device. The measurement input is user configurable for RTD temperature probes, thermocouples, and current or voltage signals. TB/TWs are used to monitor thermal processes in plants for a set limit value.

Categories: Monitors & limiters, Temperature

Technical data
Downloads

Technical data

general technical data
Wide voltage supply range	AC 110 to 240 V +10 %/-15 %
Analog inputs Pt100 DIN EN 60751	-200 to +850 °C
Analog inputs Pt1000 DIN EN 60751	-200 to +850 °C
Analog inputs, connection type	Two-wire, three-wire circuit
Input filter	Digital filter, 2nd order; filter constant can be set from 0 to 100 s

general technical data

Wide voltage supply range

AC 110 to 240 V +10 %/-15 %

Analog inputs Pt100 DIN EN 60751

-200 to +850 °C

Analog inputs Pt1000 DIN EN 60751

-200 to +850 °C

Analog inputs, connection type

Two-wire, three-wire circuit

Input filter

Digital filter, 2nd order; filter constant can be set from 0 to 100 s
