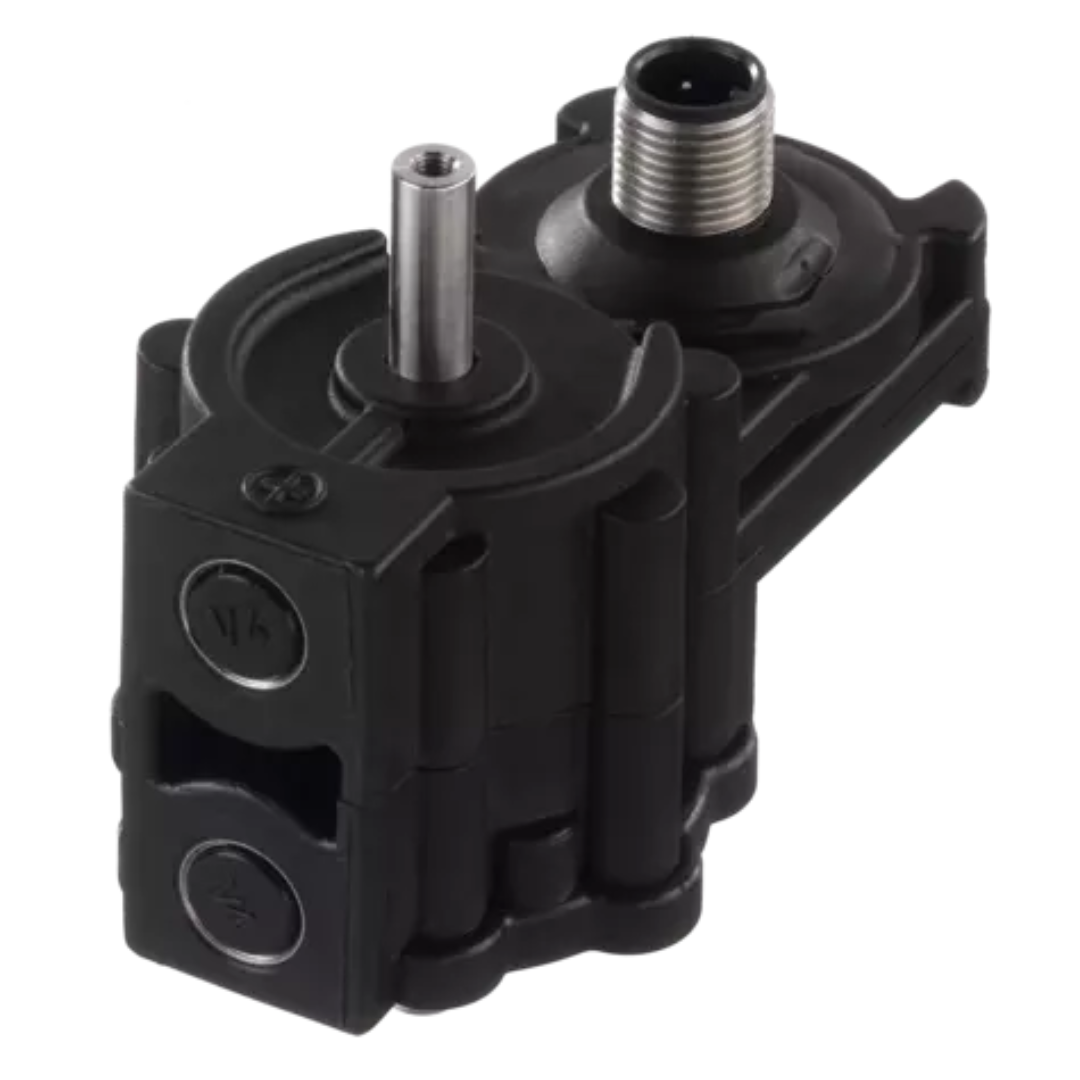

JUMO MIDAS DP10

The product acquires the differential pressure in liquid as well as gaseous media and transforms it into an analog output signal. The transmitter is mainly used for filter monitoring.

Categories: Pressure, Transmitters

Technical data
Downloads

Technical data

general technical data
Process connection	2 x G 1/8 internal thread
Medium temperature	-15 to +100 °C
Input	0 to 400 mbar – 0 to 16 bar differential pressure
Measuring system	Silicon sensor with stainless steel separating membrane (piezoresistive)
Special features	For liquid and gaseous media
Output	4 to 20 mA two-wire; DC 0.5 to 10 V three-wire
Accuracy (linearity)	0.4 to 0.6 %

general technical data

Process connection

2 x G 1/8 internal thread

Medium temperature

-15 to +100 °C

Input

0 to 400 mbar – 0 to 16 bar differential pressure

Measuring system

Silicon sensor with stainless steel separating membrane (piezoresistive)

Special features

For liquid and gaseous media

Output
