JUMO MAERA S25

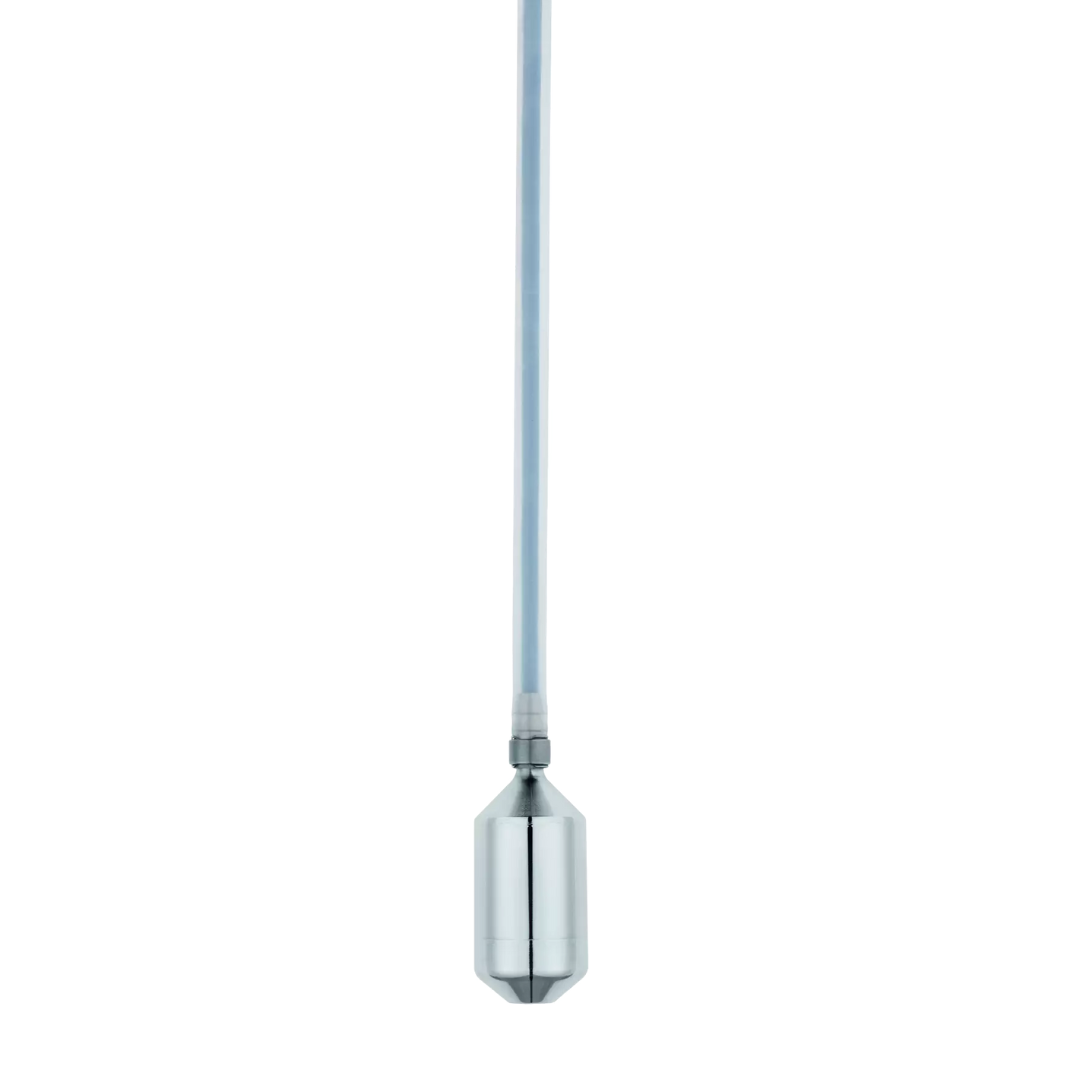

The level probe measures the level of liquids continuously and hydrostatically. It can be used in ventilated tanks at filling heights from 2.50 to 10 mH2O. The level probe is used, among other places, in rainwater cisterns or in graywater recycling.
Technical data
| General technical data | |
|---|---|
| Measuring range | 250 mbar to 1 bar (2.5 to 10 mH2O) |
| Medium temperature | 0 to 50 °C |
| Accuracy (linearity) | ±0.3 % |
| Output signal | 4 to 20 mA two-wire; DC 0 to 10 V three-wire |
| Housing material | Stainless steel |
| Cable material | PE, PA |
| Additional equipment | Reverse-polarity protection |
| Protection type | IP68 |
| Approval | Metrological certificate, EAC |
| Declaration of manufacturer | CE |
| Application areas | Indoor installation, diesel, heating oil, rainwater, car washes, well water (without salt content) |
