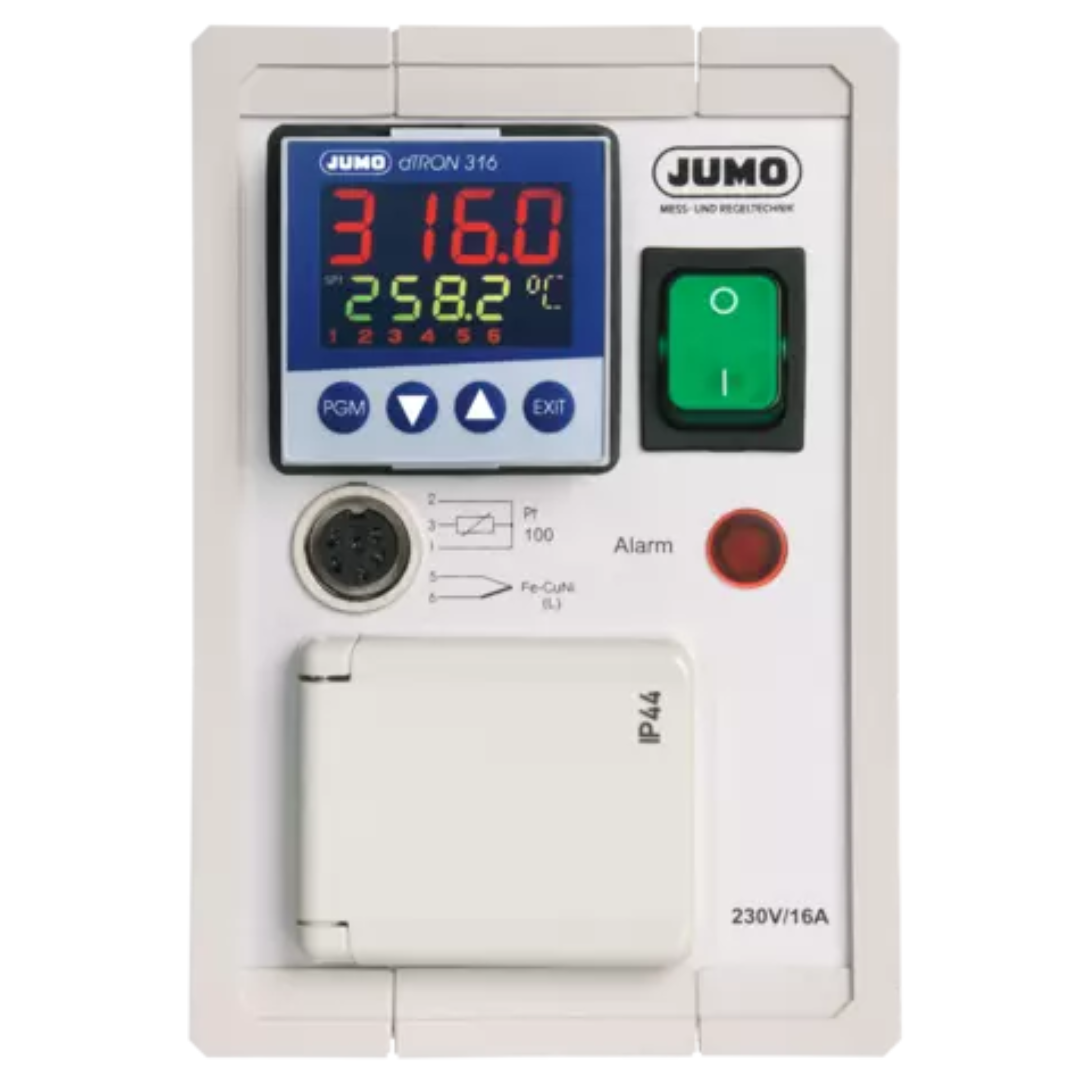

JUMO LR 316
The preferred use of the laboratory controller is in temperature control systems for heating plates, heating coils, temperature control baths, and furnaces in laboratories and production. The laboratory controller wired ready for use has the following dimensions: 180 × 170 × 200 mm. Operation and configuration is carried out using 4 keys.
Technical data
| general technical data | |
|---|---|
| Mounting | Pre-wired ready for use |
| Connection | Grounded socket up to 16 A on the front |
| Controller structure | P; PD; I; PI; PID |
| Controller type | Two-state controller |
| Special features | Autotuning; ramp function; keypad and level inhibit; setpoint value and parameter block switching |
Downloads
Operating Instructions
Brochure
Declaration of Conformity / White Paper
Declaration of Conformity / White Paper
Order details
