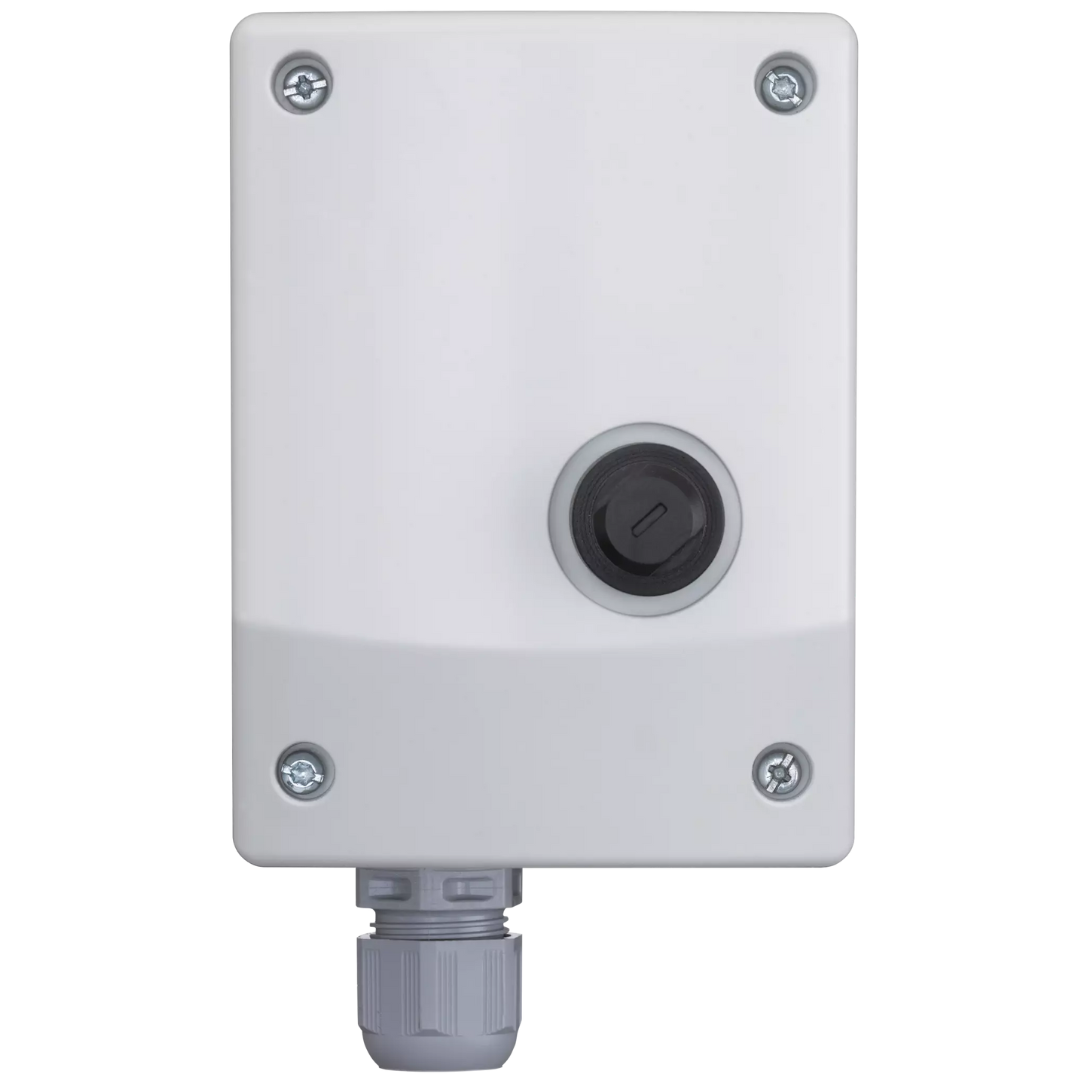

JUMO heatTHERM S600
Surface-mounted double thermostats consist of 2 separate measuring and switching systems. The device is available as a temperature monitor (TW) or safety temperature limiter (STB). They operate according to the liquid expansion principle. A microswitch is used as the electrical switching element.
Technical data
| General technical data | |
|---|---|
| Versions | Temperature monitor (TW) with safety temperature limiter (STB) (adjustable) |
| Switching element | Single-pole snap-action switch |
| Switching capacity | AC 24 to 230 V, 0.1 to 10 A |
| Maximum control range/limit value | 300 °C |
| Protection type | IP54 (DIN EN 60529) |
| Approvals | – |
| Areas of application | Heating, ventilation, and air-conditioning industry, industrial applications |
| Features | Double thermostat |
