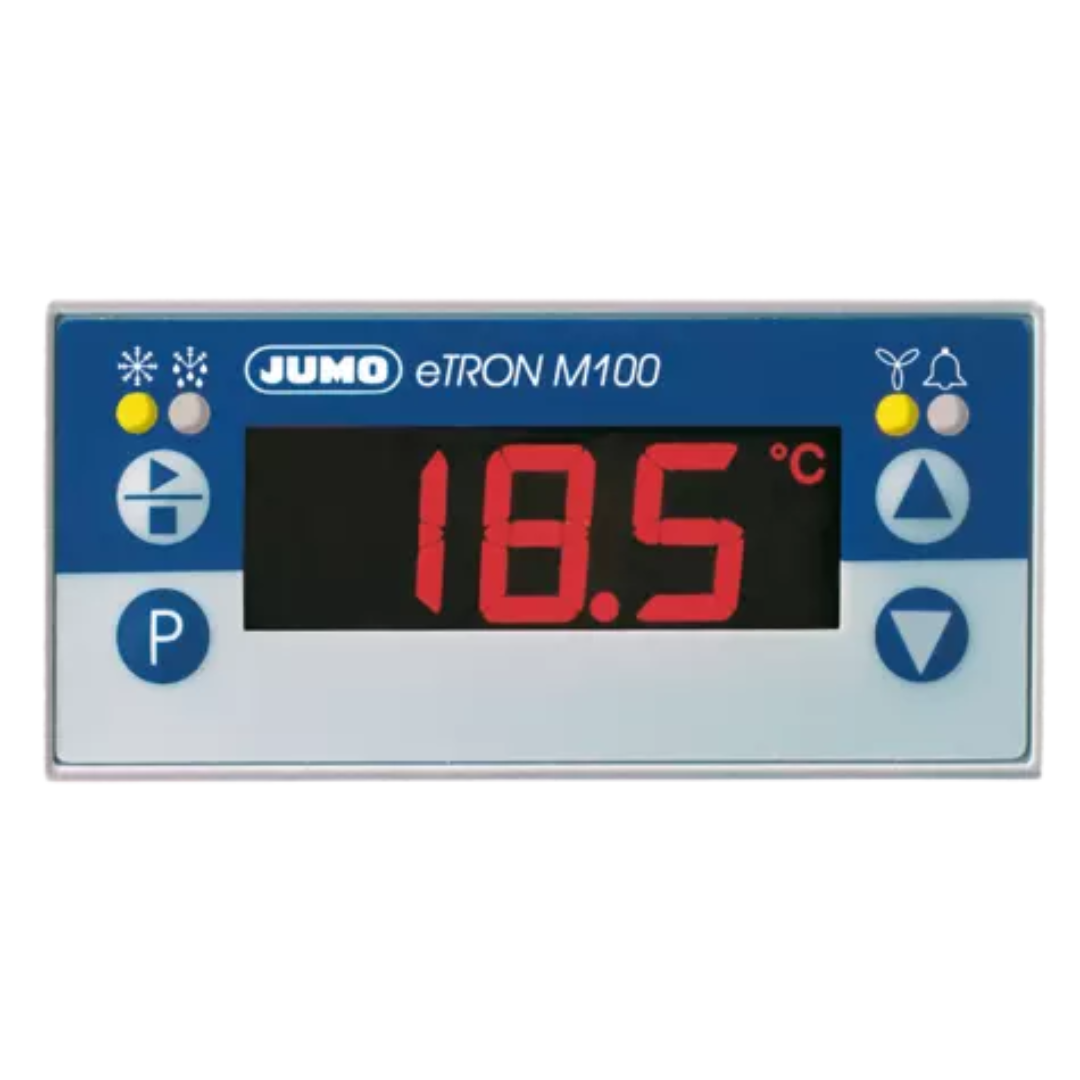

JUMO eTRON M100
The product is an electronic 2-channel microstat for universal use to be connected to RTD temperature probes. The 2 measurement inputs acquire temperatures that are available as the actual value and that can be assigned to the relays as the user sees fit.
Technical data
| general technical data | |
|---|---|
| Voltage supply | AC/DC 12 to 24 V +15/-15 %, 48 to 63 Hz |
| Protection type | At the front IP65; at the rear IP21 |
| Mounting | Panel mounting |
| Approvals | cULus |
| Alarms | Alarm via relay or buzzer |
| Connections | Screw terminals |
| Measuring inputs | 2 analog inputs for: Pt100; Pt1000; KTY1x-6 or KTY2x-6 in two-wire circuit (user configurable) |
| Special features | Interface; operating hours counter; data logger; setup program including transmission and visualization of the measured values stored in the data logger |
| Format | 77 mm × 36 mm × 71.7 mm |
| Display | Three-digit backlit LCD display with 13 mm digit height and special characters for °C, °F, h, min, s; switching position indicator for the relays |
| Outputs | 2 changeover contacts 16 A/250 V and 2 normally open contacts 8 A/250 V; optional: 1 changeover contact 16 A/250 V for alarm output |
