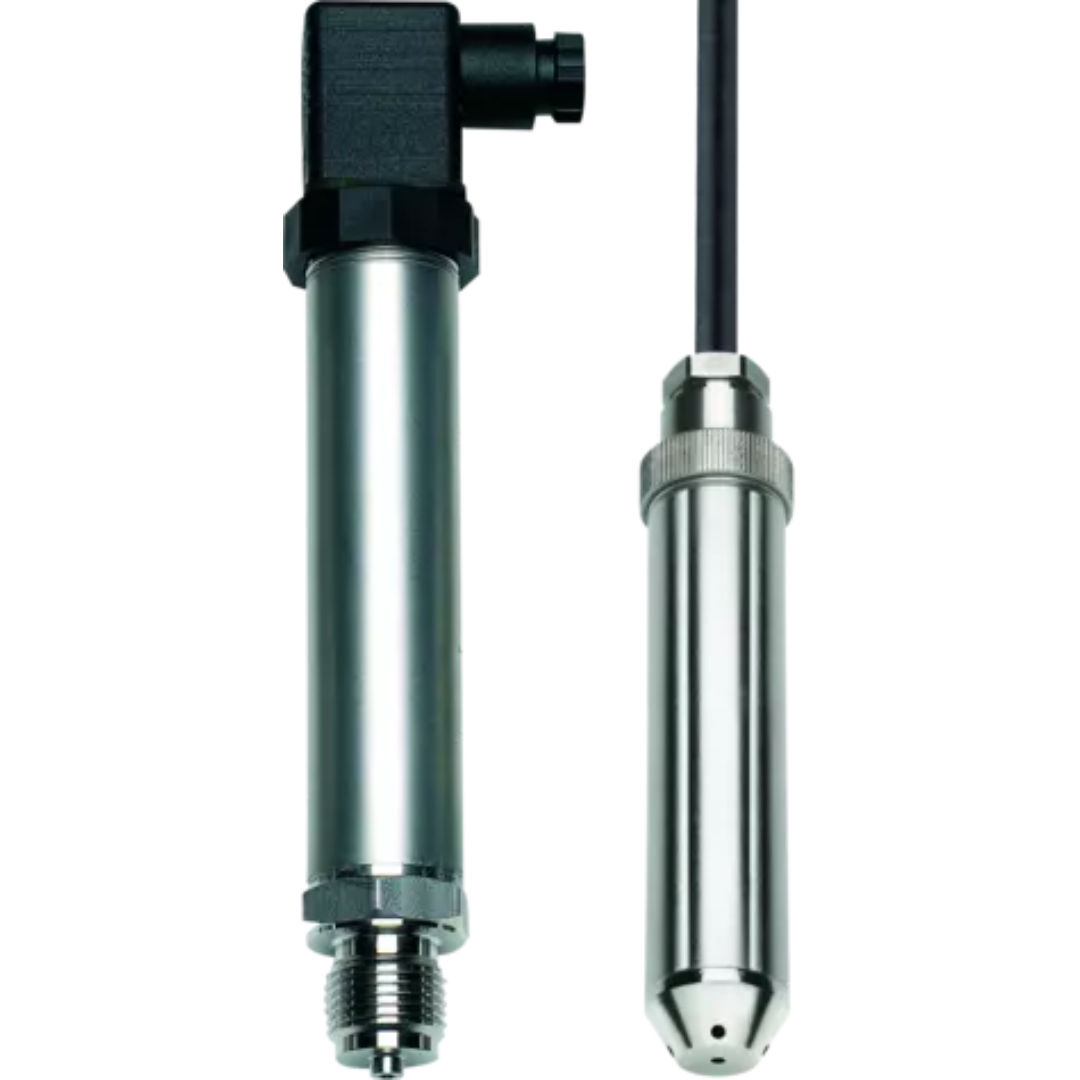

JUMO dTRANS p33
The product measures the pressure of non-aggressive and aggressive gases, steam, liquids, and dusts on the basis of the piezoresistive measuring principle. It was designed and certified according to ATEX directives. The transmitter is used, among other places, in flour and grain silos.
Technical data
| general technical data | |
|---|---|
| Approval | ATEX |
| Measurement medium | Impervious to aggressive gases, vapors, and liquids |
| Output signal | 4 to 20 mA, two-wire |
| Sensor | Piezoresistive silicon sensor |
| Accuracy (linearity) | 0.5 % |
| Zero signal offset | ≤ 0.3 % MSPa |
| Protection type | IP65 |
| Cable material | PE |
| Housing material | Stainless steel |
| Process connection | Thread |
