Hygienic adapter for G½”
Application area
Hygienic adapter suitable for VEGAPOINT series 10, 20, 30 with process fitting G½”/316L – Flexible and simple integration into the system – Fast replacement during system downtime – Reduced stock keeping due to standard sensors
Technical specifications
Materials, wetted parts
- 316L
Hygenic fittings

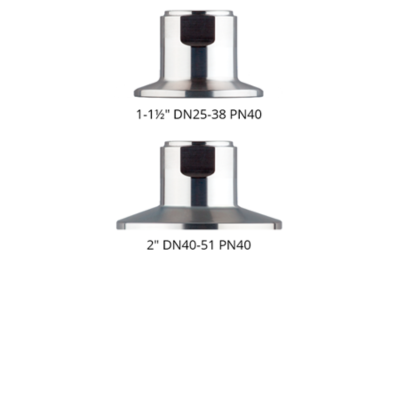

- Clamp ≥ 1″ – DIN32676, ISO2852

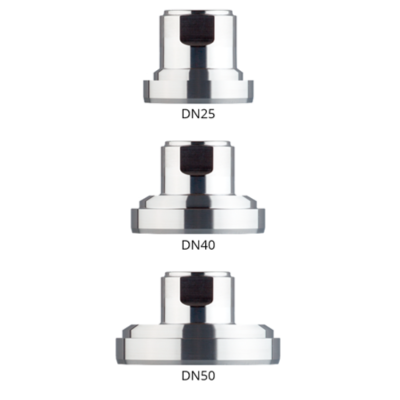

- Slotted nut ≥ DN25 – DIN 11851

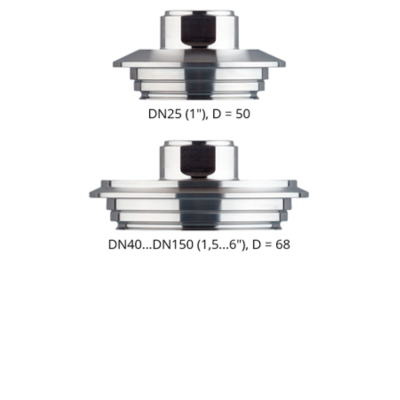

- Varivent ≥ DN25

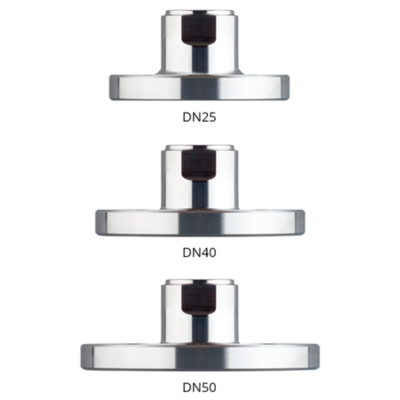

- Hygienic flange connection ≥ DN25 DIN11864-2

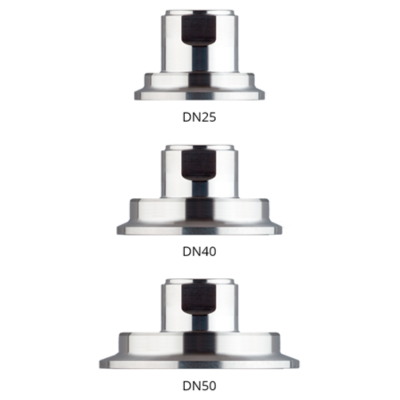

- Hygienic collar clamp ≥ DN25 – DIN 11864-3

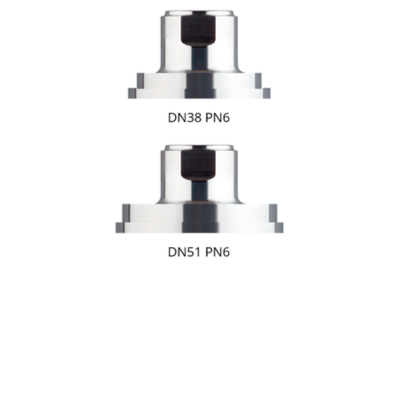

- SMS 1145 DN51
- SMS DN38
- Hygienic fittings ≥ DN25 – DIN11864-1-A
- Varivent N50-40
Documentation
Welded socket, thread and hygienic adapter – Device series 10, 20, 30, 42, 50
