Main features
- Alternating current solid state relay
- Zero crossing switching
- Copper/semiconductor coupling technology
Available resources
Brochure
– Brochure Power Control
– Gefran product range brochure
User Manual
– GQ Installation handbook
Datasheet
– GQ datasheet
Catalogue
– 4.0 plastic application catalogue
Certifications
– EU_Conformity declaration_GQ
– SCCR 100KA – GTZ, GTS, GTF and GQ
– UL Certifications – UL – GQ
Technical specifications
Overview

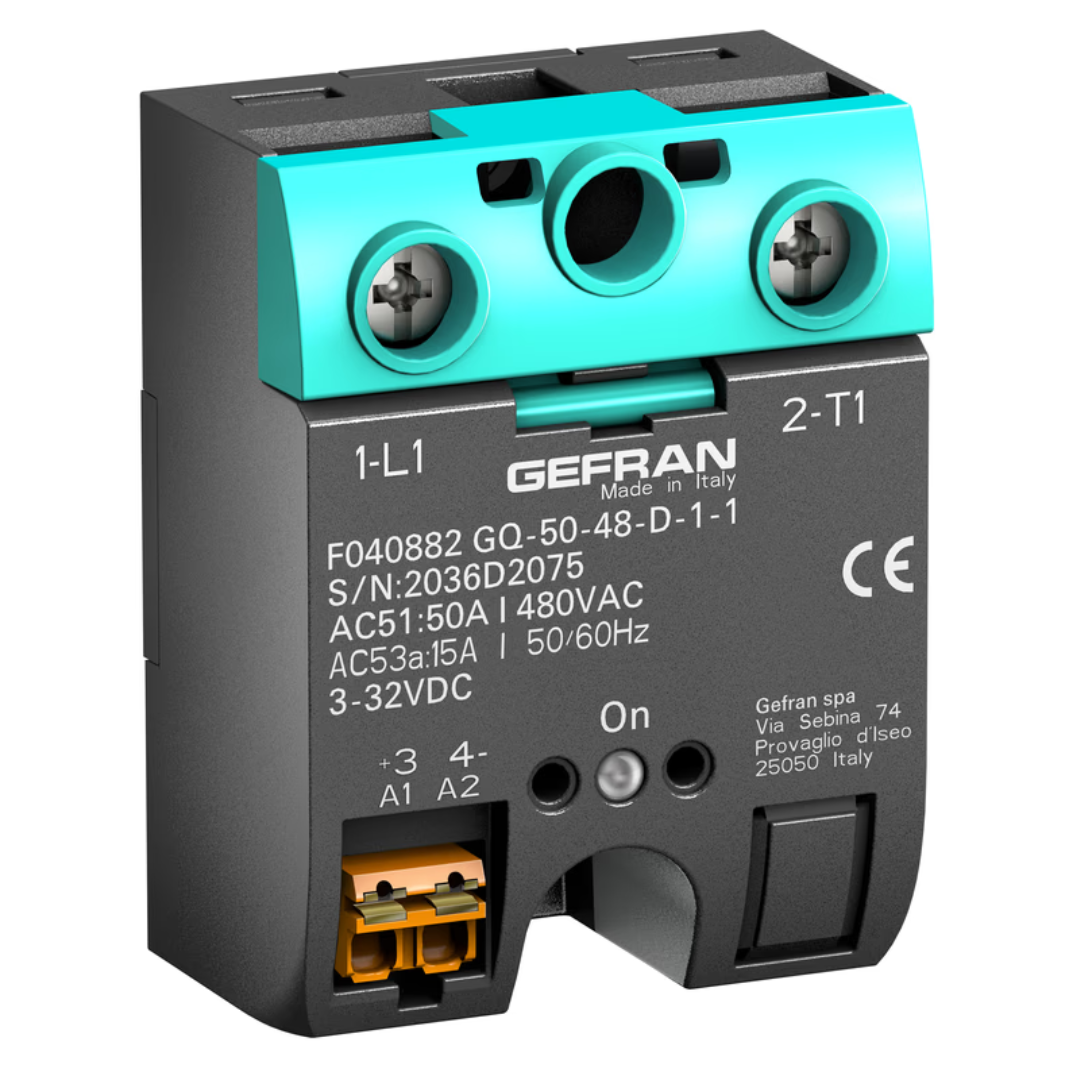

Zero crossing relay with antiparallel double SCR output is the most used solid state relay in industrial applications.
In fact, it can be used for resistive, inductive and capacity loads.
“Zero crossing” relay is energised when voltage meets the zero point and disenergised when current meets the zero point, depending on the signal control on the input circuit.
This relay has been designed to stand high-value transitory applications. When the relay has to stand high currents for a long period, it is necessary to grant a proper dissipation and an adequate electrical connection between relay terminals and the load.

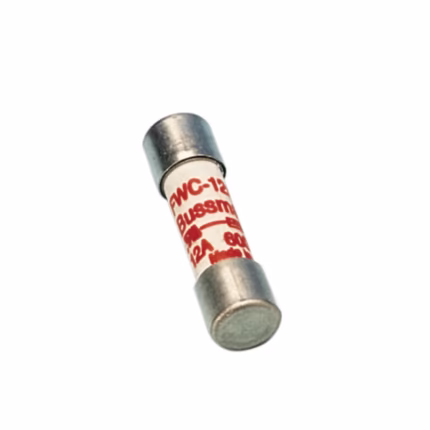

Heatsinks, plug-in connectors, varistors, fuses, thermostats and fans, adhesive dissipating strips, are available as fittings.
