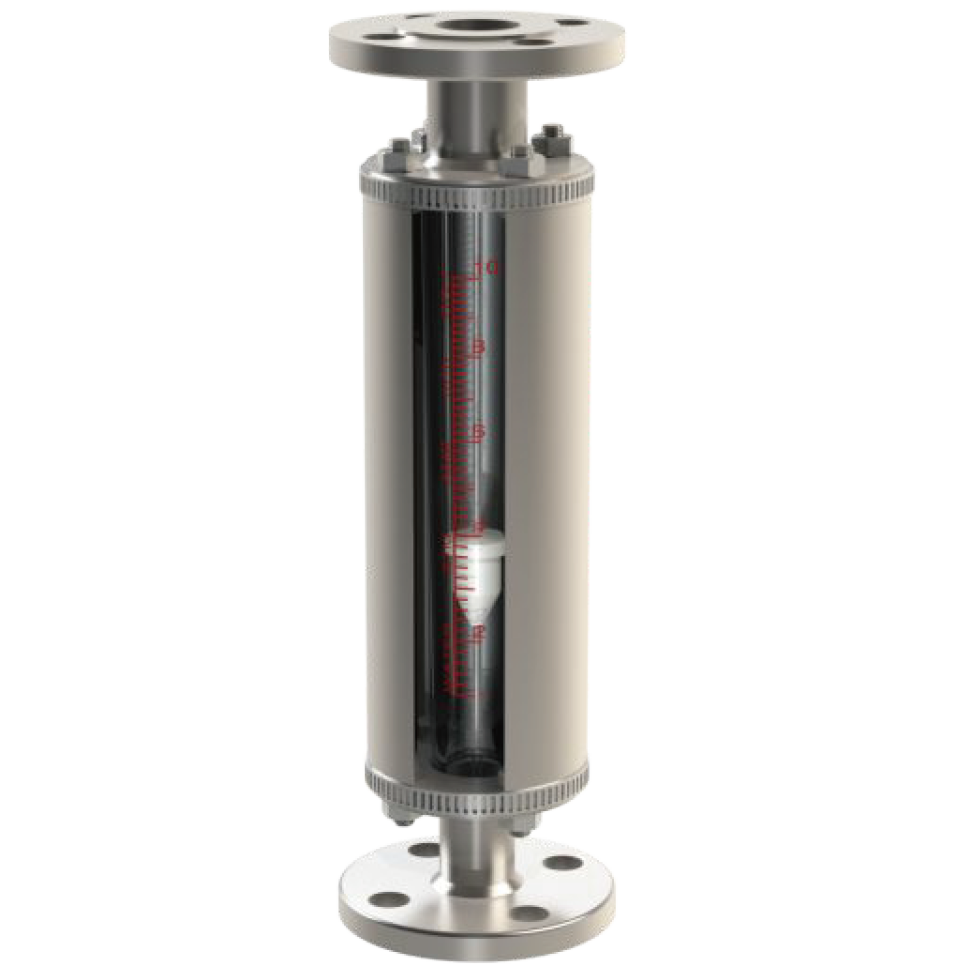

Glass tube flowmeter_F809
F809
Information
They can be used to measure the instantaneous flowrate of liquids or gases in various applications.
They are designed to be installed into vertical lines. It is installed the protection cover on the flowmeter body.
Specification
| Features | • Simple construction and Economical price • Easy of installation and maintenance • Protection cover |
| Measuring | Liquid, Gas |
| Meter size | 15A (½”) ~ 100A (4″) |
| Material | Body : 304SS, 316SS, 316L SS Float : 304SS, 316SS, 316L SS, PVC, PTFE, ACETAL Packing : NBR, VITON, EPDM, PTFE |
| Pressure rating | Max.10 kgf/cm² |
| Temperature | Max.120 ℃ |
| Connection | Flange connection (JIS / ANSI / DIN / Other) Screw connection (Size: 15A~ 100A) |
| Accuracy | ±3.0 % of full scale |
Model & Type
| Model | Type |
| F801 | Glass tube flowmeter_Con’n : Flange |
| F802 | Glass tube flowmeter_Con’n : Socket & Screw |
| F803 | Glass tube flowmeter_Mat’l : PVC |
| F804 | Glass tube flowmeter_Mat’l : PTFE |
| F805 | Glass tube flowmeter_Mat’l : Teflon Lined |
| F806 | Glass tube flowmeter_Mat’l : PP & PE |
| F807 | Glass tube flowmeter_without Guide rod |

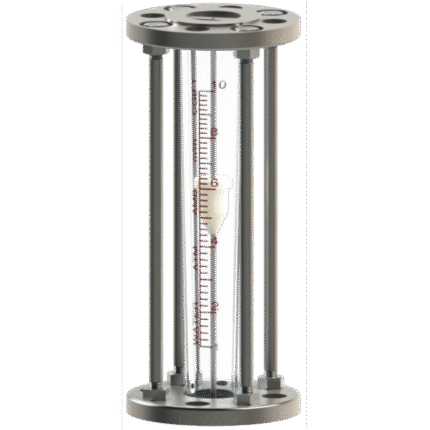

| F808 | Glass tube flowmeter_Direct mount |
| F809 | Glass tube flowmeter_with Protect cover |
| F810 | Glass tube flowmeter_with Control valve |
| F811 | Glass tube flowmeter_Con’n : Sanitary clamp |
| F812 | Glass tube flowmeter_Large size type |
