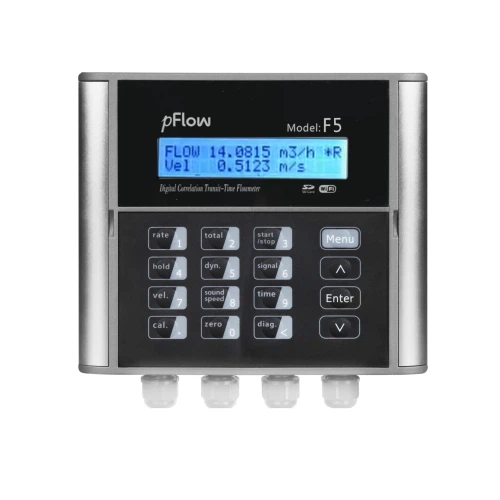

Gentos pFlow F5-CP037 Ultrasonic Flowmeter

F5 Ultrasonic Flow Meter

F5 is a Digital Correlation Transit Time Flow-meter, with clamp on transducer and clamp on temperature transducers, used to track water flow and can be installed onto single use water or closed circuit chilled or heating water loops. Applications are wide ranging but most factories typically seek to use this meter to reduce water consumption or as a proof of flow through their system.

Enquiry
Add to quote
Part Number: F5-CP037 Category:

Overview

Performance specifications
Flow range 0.03 ~ 16 ft/s (0.01 ~ 5.0 m/s)
Accuracy ± 1.0 % of measured value, velocity＞0.5m/s
Pipe Size Clamp-on: 1″ ~ 48″ (25mm ~ 1200mm)
Fluid Water
Function specifications
Output OCT Pulse output: 0-5000Hz.

Analog output: 4 ~ 20mA, max load 750Ω
Communication interface RS485 MODBUS.
Power Supply 10 ~ 36VDC/1A
Standard SD card Maximum storage period: 512 days, storage interval: 1-3600 seconds
Display 20×2 lattice alphanumeric, back lit LCD
Keypad 16 (4×4) key with tactile action
WIFI Working temperature: -20~85℃
Frequency range: 2.412~2.484GHz
Transmitting power: 802.11b 16±2 dBm, 802.11n 13±2 dBm, 802.11g 14±2 dBm
40m transmission distance in open environment40
Humidity Up to 99% RH, non-condensing
Temperature Transmitter: 14 °F to 122 °F (–10℃ ~ 50℃) ;

Transducer: 32 °F to 176 °F (0℃ ~ 80℃)
Physical specifications
Transmitter PC/ABS, IP65
Transducer Encapsulated design, IP68
Weight φ5 six core cable, standard length: 2m
