Supmea SUP-ST500

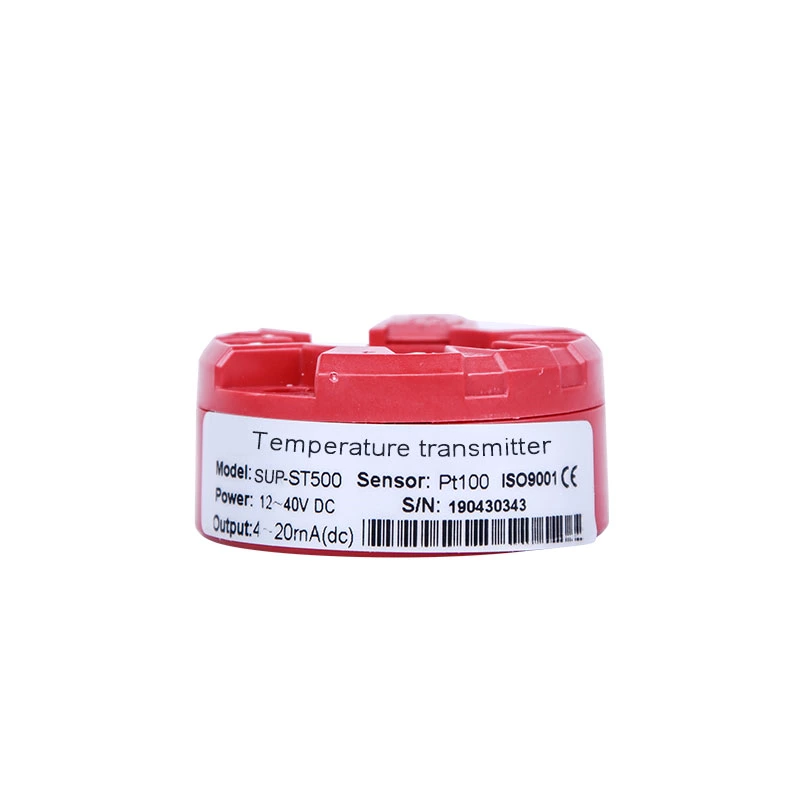

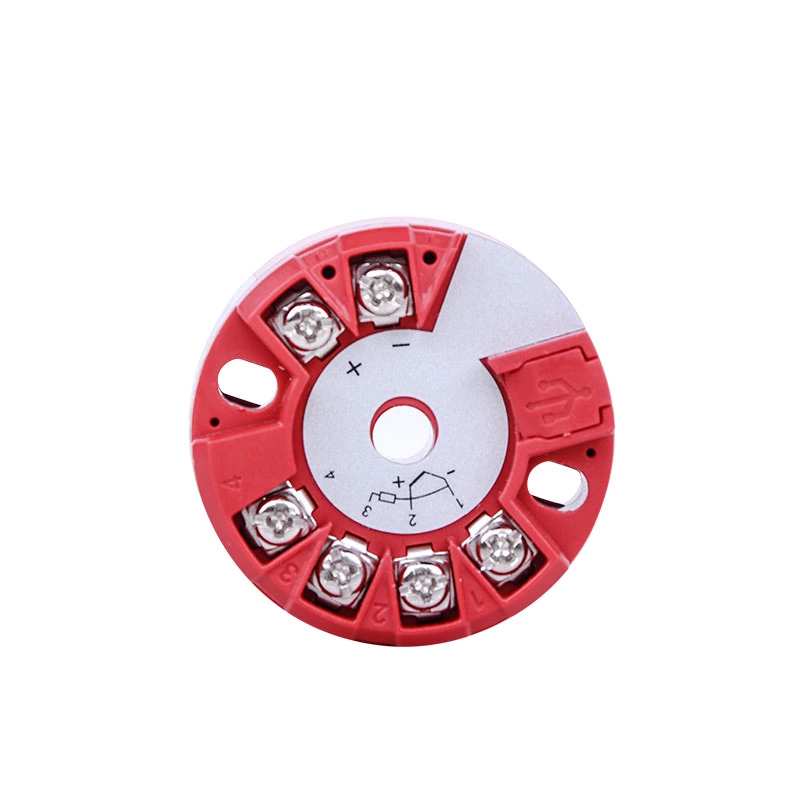

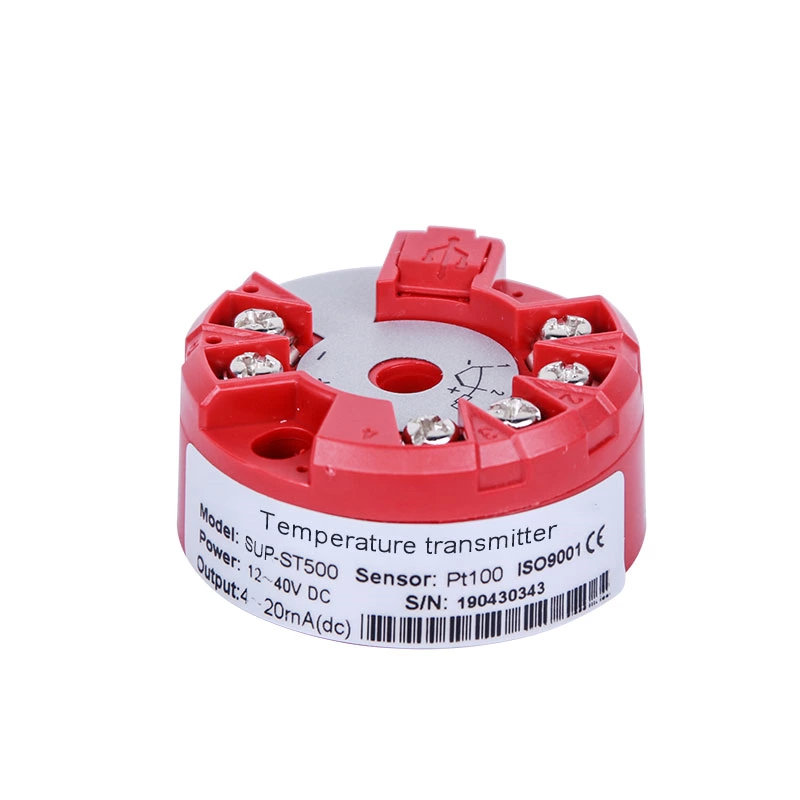

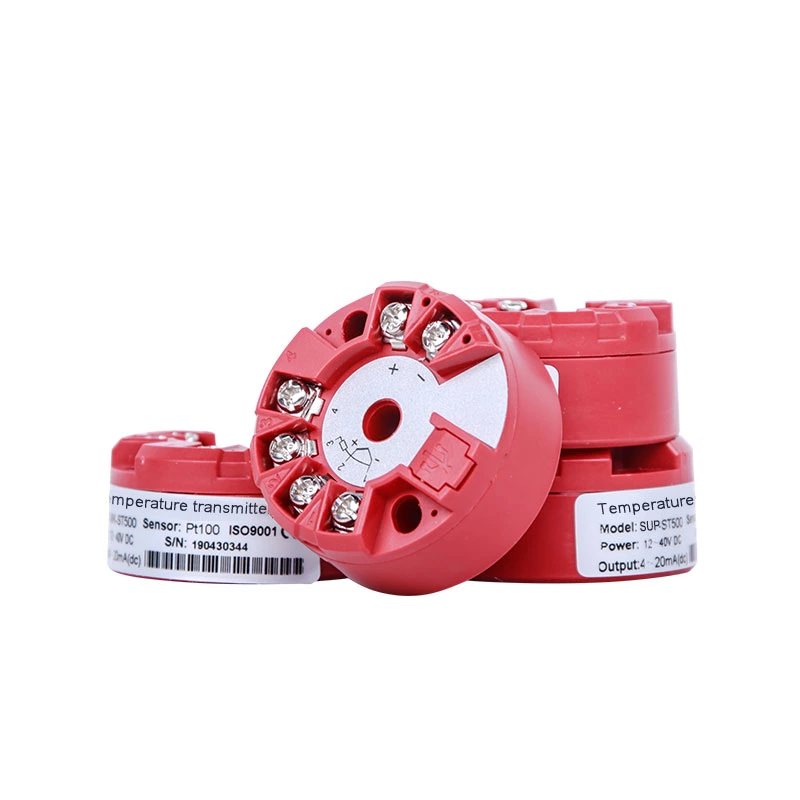

SUP-ST500 Temperature transmitter programmable
SUP-ST500 Head Mounted Smart Temperature transmitter can be used with multiple sensor type [Resistance Thermometer(RTD),Thermocouple (TC)] inputs, is simple to install with improved measurement accuracy over wire-direct solutions.
Characteristics
Input signal: Resistance temperature detector (RTD), thermocouple (TC), and linear resistance.
Output: 4-20mA
Power supply: DC12-40V
Response time: Reach to 90% of the final value for 1s
Specifications
| Input | |
| Input signal | Resistance temperature detector (RTD), thermocouple (TC), and linear resistance. |
| Cold-junction compensation temperature scope | -20~60℃ |
| Output | |
| Output signal | 4-20mA |
| Load resistance | RL≤(U-10)/0.021 |
| Output current of upper and lower limit overflow alarm | IH=21 mA, IL=3.8 mA |
| Power supply | |
| Power supply | (12-40)VDC |
| Other parameters | |
| Response time | Reach to 90% of the final value for 1s |
| Used environmental temperature | -40~80℃ |
| Storage temperature | -40~100℃ |
| Vibration resistance | 4g/2~150Hz |
| Electromagnetic compatibility | Conform to GB/T18268 industrial equipment application requirements(IEC 61326-1) |
