Main features
- 2 channel encoder input configurable as counter or frequency
- Power supply 8..32Vdc, 25mA
- 2 fast digital outputs as counting events
Available resources
Brochure
– Automation platforms
– Gefran product range brochure
Catalogue
– 4.0 plastic application catalogue
Flyer
– G-MATION G3 – Flyer
Datasheet
– G3-C2 – Datasheet
Fieldbus Configuration Files
– G3-C2 – ESI Configuration file
User Manual
– G3-C2- User manual
Certification
– UL Certification – G3
– EU Conformity Declaration – G3
– UK Conformity declaration – G3
Technical specifications
Overview

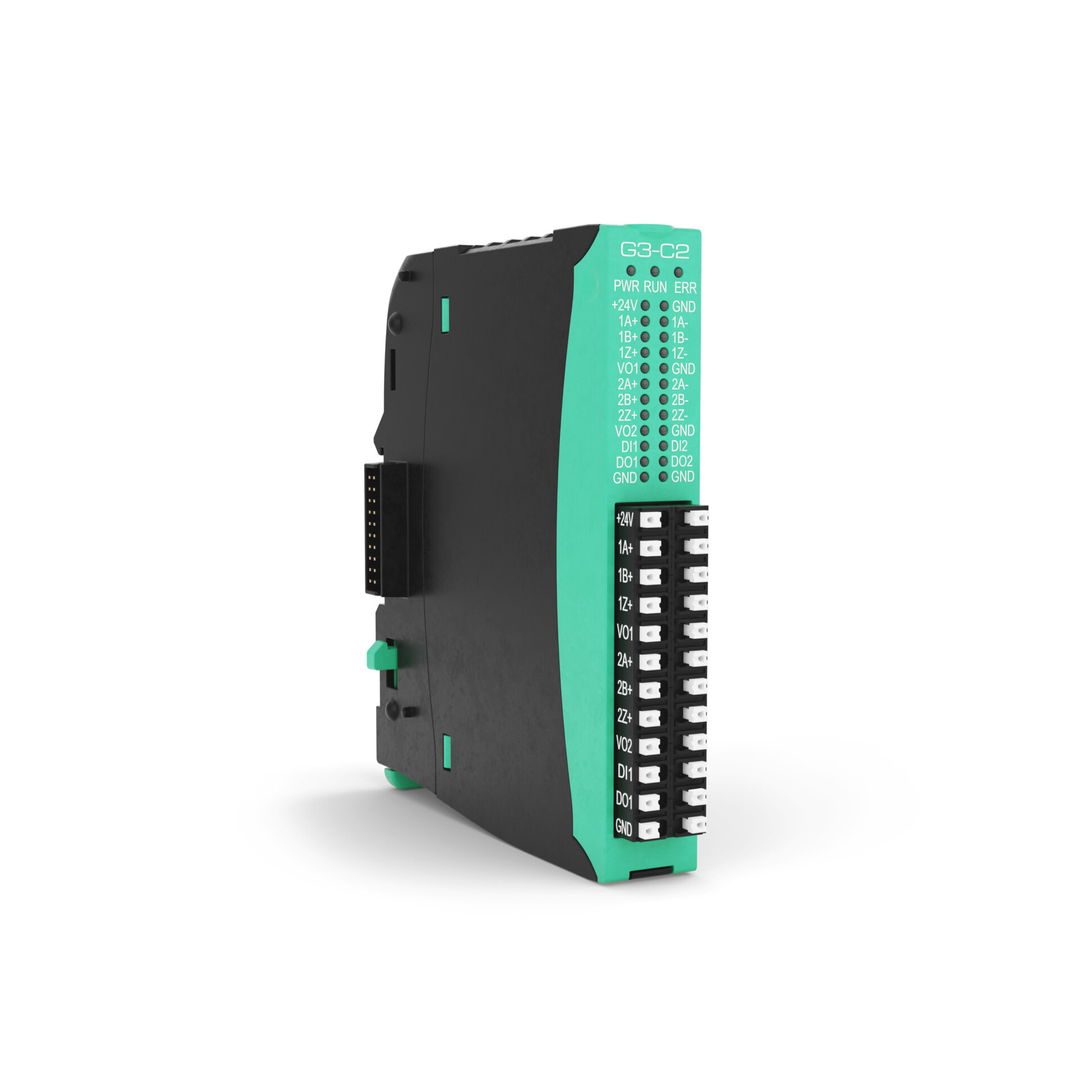

The G3-C2 module handles 2 fully configurable encoder inputs for reading signals such as counter up/down, mono and bi-directional encoders, period or frequency measurement.
As quick response events with counters, 2 digital 24Vdc outputs are available directly on the board.
G3-C2 can be used with all the G-Mation gateways and CPU’s from which it receives power supply.
