EL 4

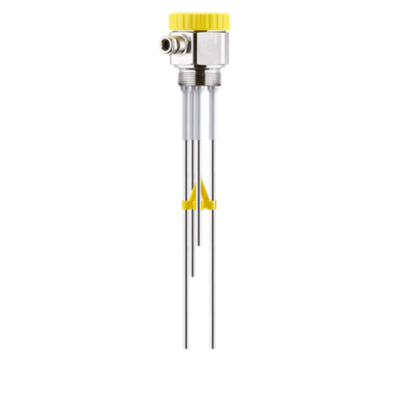

Conductive multiple rod electrode
Rod electrodes with PP insulation
Application area
With 2 to 5 rods, a corresponding number of switching points between 10 cm and 4 m can be realized. A VEGATOR 130 series controller is required for operation.
The multiple rod electrode EL 4 is a universal level switch for conductive liquids. The instrument is ideal as overfill and dry run protection or pump control in conjunction with VEGATOR 132 controllers.
Your benefit
- Reliable pump control through multiple rod probe
- Reduced stockkeeping through exchangeable rod probes
- High flexibility through shortenable probes
Technical specifications
Measuring range – Distance
- – [Meter – Foot]
Process temperature
- -20 … 100 °C [°C – °F]
Process pressure
- -1 … 6 bar [Bar – kPa – psi]
Version
- with 2 rod electrodes
- with 3 rod electrodes
- with 4 rod electrodes
- with 5 rod electrodes
Materials, wetted parts
- PP
- 316Ti (1.4571)
- Alloy C4 (2.4610)
Threaded connection
- G1½
Seal material
- no media contact
Housing material
- Plastic
Protection rating
- IP66/IP67
Output
- For connection to a controller
Ambient temperature
- -40 … 80 °C
Documentation
Conductive
VEGAKON 61, VEGAKON 66, EL 1, 3, 4, 6, 8
