EL 1
Conductive rod probe
Rod electrode with PTFE insulation
Application area
Rod electrode with a rod up to 4 m long. Extended temperature range through PTFE insulation. A VEGATOR 130 series controller is required for operation.
The rod electrode EL 1 is a universal level switch for conductive liquids. The instrument is ideal as overfill and dry run protection in conjunction with VEGATOR 131 or VEGATOR 132 controllers.
Your benefit
- Simple installation in narrow space applications through small sensor dimensions
- Low maintenance costs through robust design
- High flexibility through shortenable probe
Technical specifications
Measuring range – Distance
- – [Meter – Foot]
Process temperature
- -50 … 130 °C [°C – °F]
Process pressure
- -1 … 63 bar [Bar – kPa – psi]
Version
- with 1 rod electrode
Materials, wetted parts
- PTFE
- 316L
- Alloy C4 (2.4610)
Threaded connection
- G½
Seal material
- no media contact
Housing material
- Stainless steel (precision casting)
Protection rating
- IP66/IP67
Output
- For connection to a controller
Ambient temperature
- -40 … 80 °C
Approvals
Scope
- ATEX / Europe
- EAC (GOST) / Belarus
Explosion protection
- Intrinsic safety “i”
Overfill protection
- WHG
Documentation
Conductive

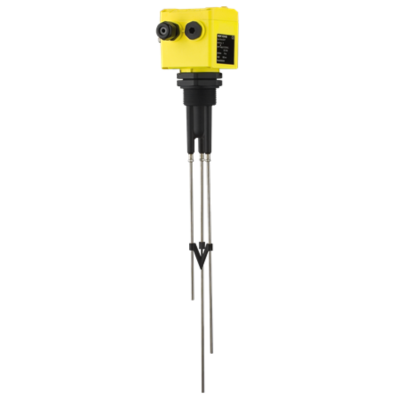

VEGAKON 61, VEGAKON 66, EL 1, 3, 4, 6, 8
