Direct acting solenoid valves Series K8 – K8X
2/2-way – Normally Closed (NC) and Normally Open (NO)
3/2-way – Normally Closed (NC) and Normally Open (NO)
3/2-way – Universal (UNI)
3/2-way – Normally Closed (NC) and Normally Open (NO)
3/2-way – Universal (UNI)
Thanks to their particular design these valves can be used in applications where very compact solutions are required as well as high performances.
Series K8 is used to control actuators or very small devices and it is suitable for portable equipments thanks to low power consumption, reduced weight and dimensions.
The universal (UNI) version enables to mix two different gaseous fluids or to select the path of the gaseous fluid in the pneumatic circuit.
General Data
| TECHNICAL FEATURES | |
| Function | 2/2 NC – 3/2 NC – 2/2 NO – 3/2 NO – 3/2 UNI |
| Operation | Direct acting poppet type |
| Pneumatic connections | Cartridge seat in manifold/barb fittings for tube 4/2 – 4/2,5 – 5/3 mm |
| Orifice diameter | 0,5 … 0,7 mm |
| Flow coefficient kv (l/min) | 0.08 … 0,15 |
| Operating pressure | -1 ÷ 3 … 7 bar |
| Operating temperature | 0 ÷ 50 °C |
| Fluid | Filtered compressed air, unlubricated, according to ISO 8573-1:2010 class [3:4:3], inert gas |
| Response time when discharging (ISO 12238) | ON <10 ms – OFF <10 ms |
| Installation | In any position |
| MATERIALS IN CONTACT WITH THE MEDIUM | |
| Body | Brass – stainless steel – PBT |
| Seals | FKM |
| Internal parts | Stainless steel – enamelled copper |
| ELECTRICAL FEATURES | |
| Voltage | 3 … 24 V DC – other voltages on demand |
| Voltage tolerance | ±10% |
| Power consumption | 0,6 W |
| Duty cycle | ED 100% |
| Electrical connection | 2 pins 0,5 x 0,5 pitch 4 mm – JST connector with 300 mm flying leads |
| Protection class | IP00 |
Special versions available on demand.
Coding Example
| K8 | 0 | 00 | – | 3 | 0 | 3 | – | K | 2 | 3 |
| K8 | SERIES |

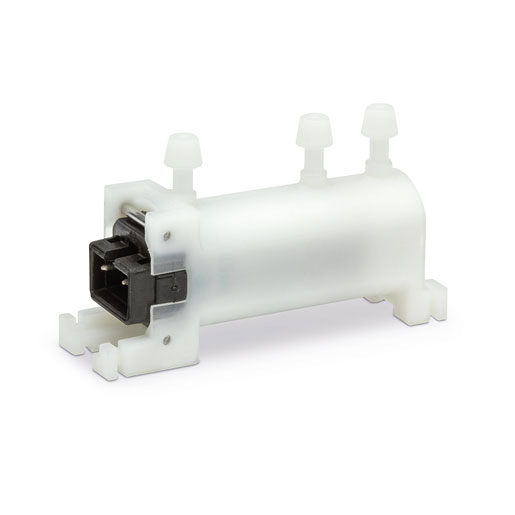

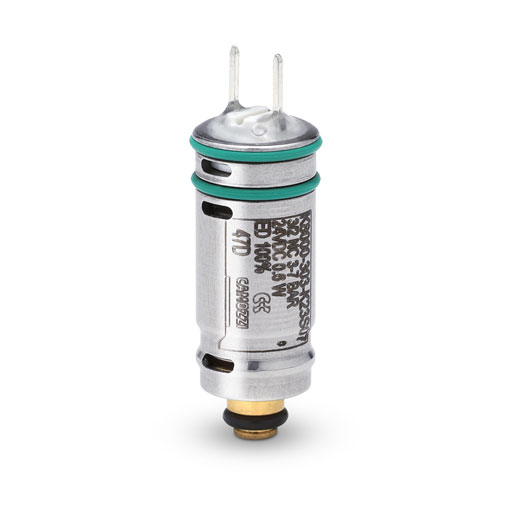

| 0 | VALVE VERSION 0 = Cartridge valve X = Cartridge valve with PBT body |
| 00 | BODY DESIGN 00 = Cartridge valve without body 1A = Valve with PBT body and barb fittings for tube Ø 4/2 mm 1B = Valve with PBT body and barb fittings for tube Ø 4/2,5 mm 1C = Valve with PBT body and barb fittings for tube Ø 5/3 mm |
| 3 | NUMBER OF WAYS – FUNCTIONS 3 = 3/2-way – NC 4 = 3/2-way – NO 5 = 2/2-way – NC 6 = 2/2-way – NO 7 = 3/2-way – UNI |
| 0 | SEALS MATERIAL 0 = FKM |
| 3 | ORIFICE DIAMETER 3 = Ø 0,5 mm (max pressure 7 bar) 5 = Ø 0,7 mm 6 = Ø 0,5 mm (max pressure 4 bar) |
| K | MATERIALS K = Brass orifice |
| 2 | ELECTRICAL CONNECTION 2 = Pins – pitch 4 mm 3 = JST connector with 300 mm flying leads |
| 3 | VOLTAGE – POWER CONSUMPTION 1 = 6 V DC – 0,6 W 2 = 12 V DC – 0,6 W 3 = 24 V DC – 0,6 W 5 = 5 V DC – 0,6 W 6 = 3 V DC – 0,6 W |
| USE WITH OXYGEN: = Not suitable for use with oxygen OX1 = for use with oxygen – cleanliness level according to ASTM G93-03 Standard Level E |
