Main features
- Range of measurement: from 100 to 3000 kN
- Accuracy class: 0.5%
- Elastic element in stainless steel
Available resources
Brochure
– Industrial strain and force sensors
– Tie bar measuring system. Press-on strain sensors
– Strain and force sensors
– Brochure Load Cells, Force Transducers
– Gefran product range brochure
Datasheet
– CT datasheet
Certifications
– UK Conformity declaration – CT
– EU Conformity declaration – CT
Technical specifications
Overview

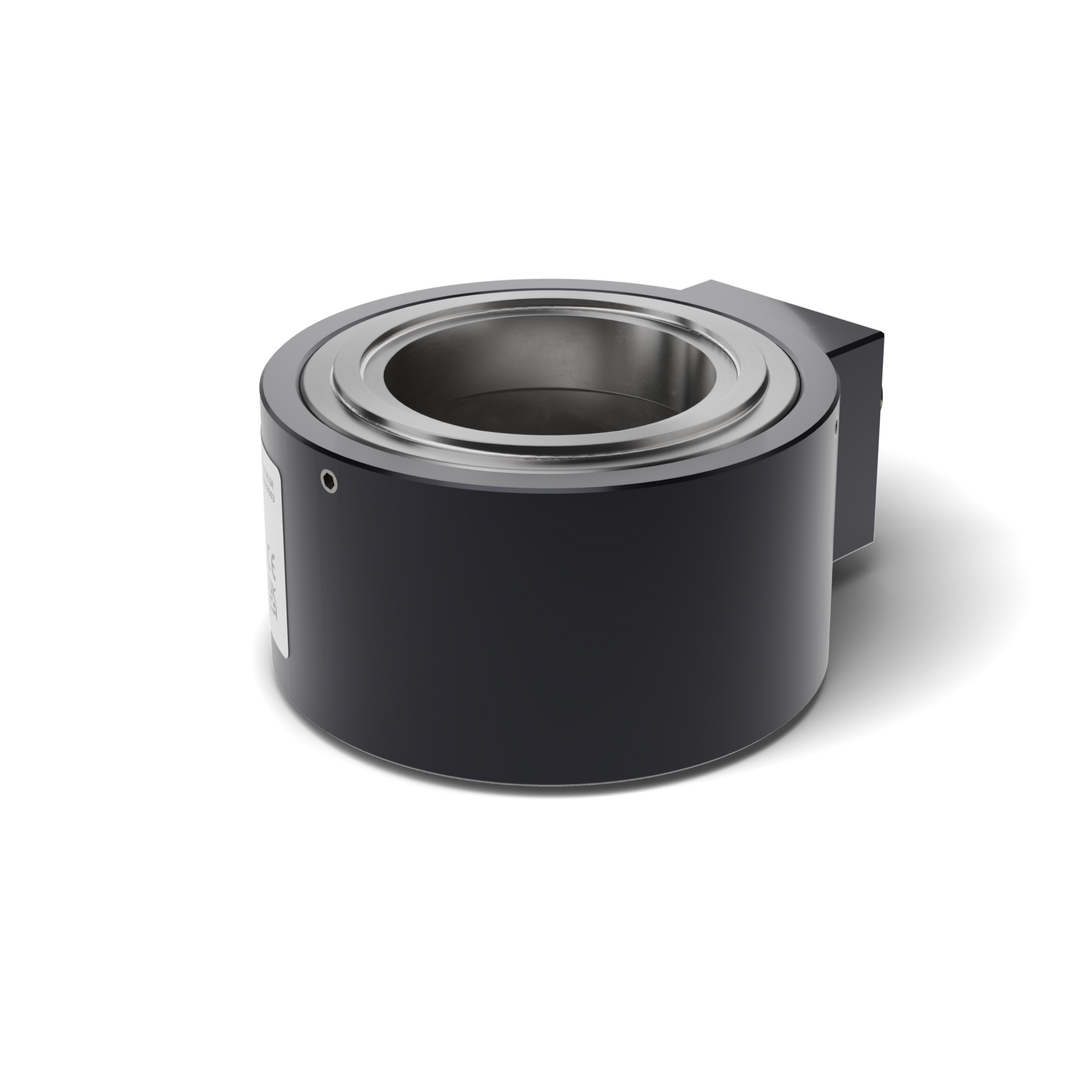

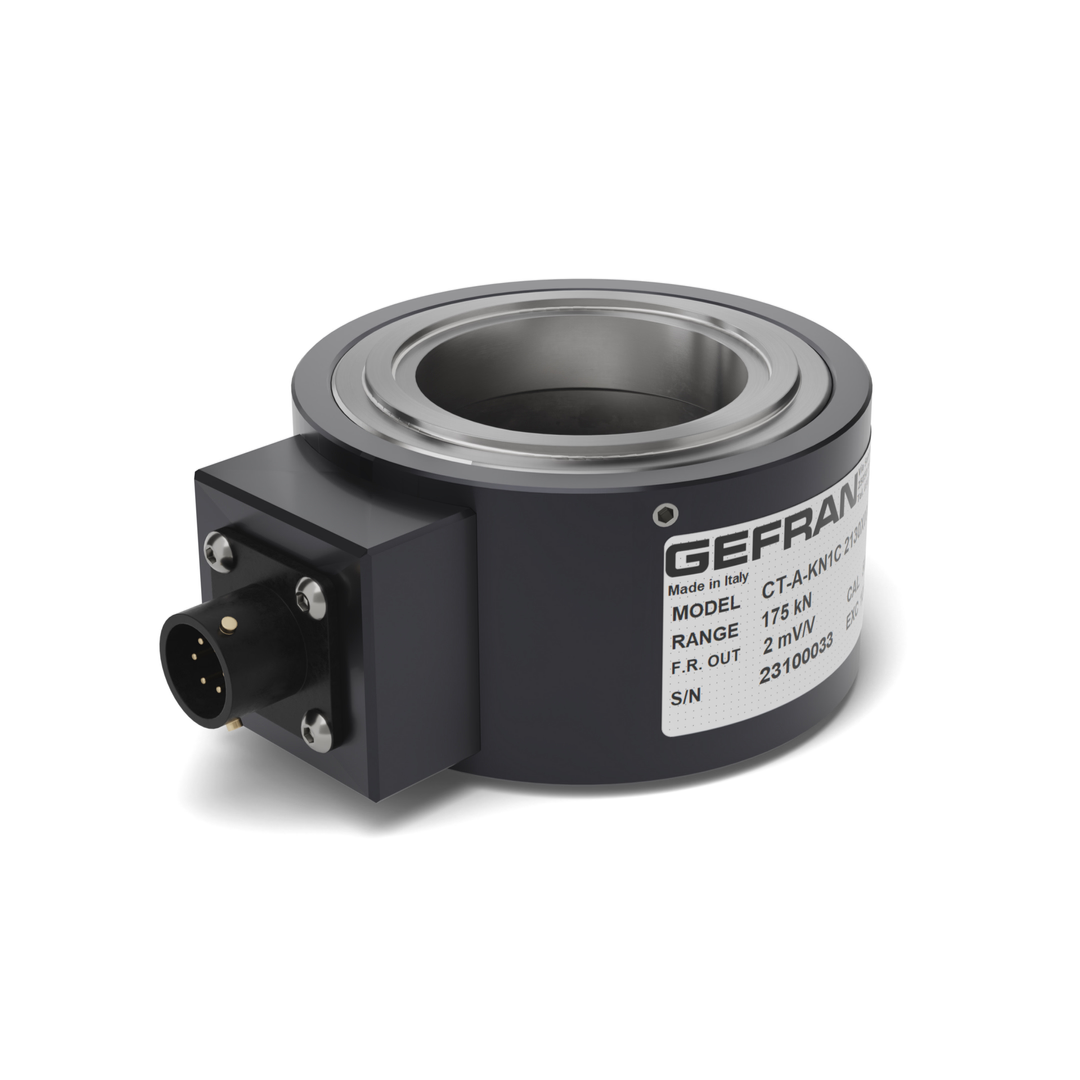

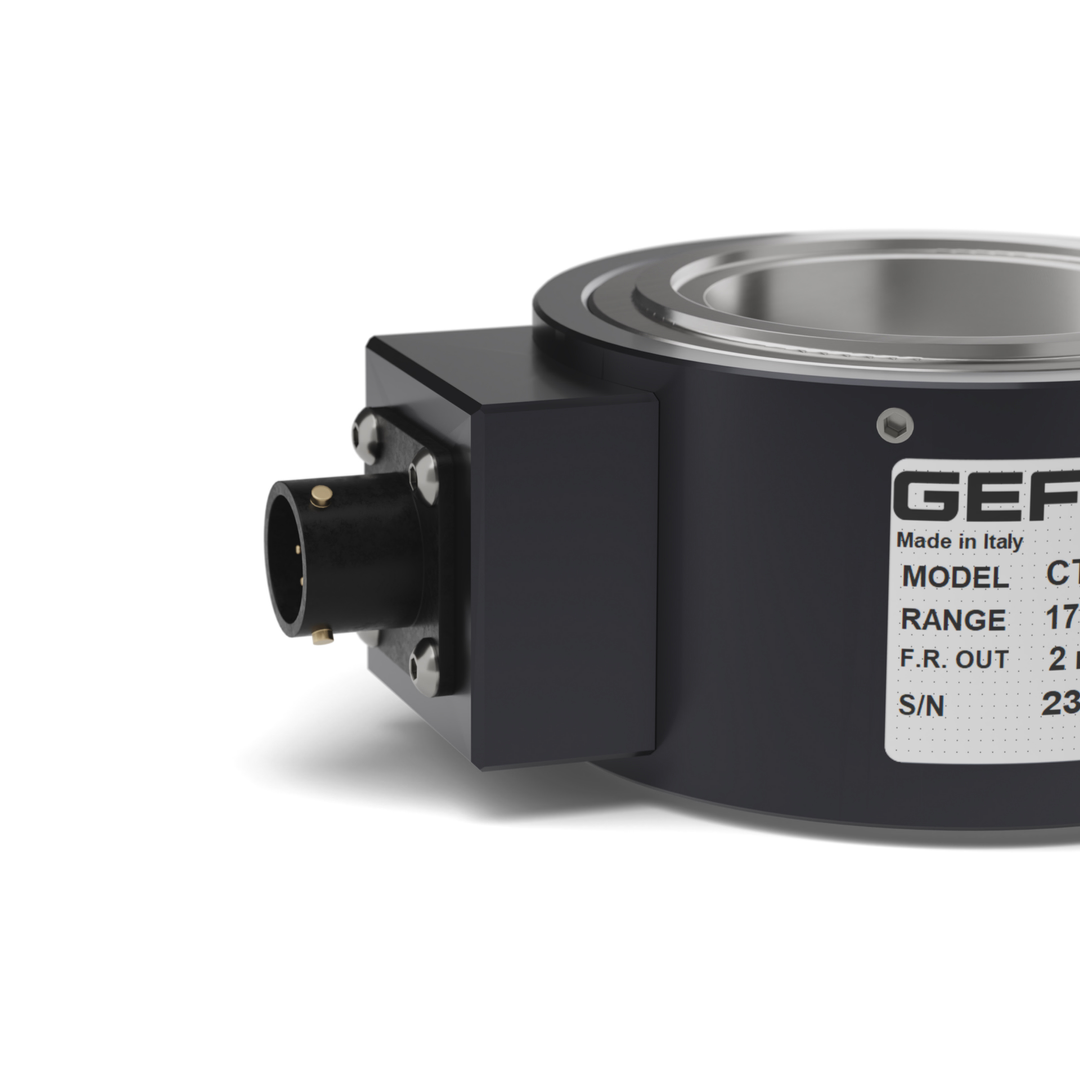

The CT series force transducers, have been specially designed for use in polymer processing in applications where it is required to measure the reaction force produced by the extru-sion pressure on the gearbox along the axis of the screw.
They measure a force whose value is indicative of the extrusion pressure over the area of the screw.
The CT series force transducers can also be used in all other applications where it is required to measure the forces on shafts or columns and in any application where the geometry demands a toroidal form load cell.
