VEGACONNECT
Interface adapter between PC and communication-capable VEGA instruments
Application area
The VEGACONNECT is an interface adapter for connection of communication-capable VEGA instruments to the USB interface of a PC or laptop. In conjunction with PACTware and VEGA DTM, the VEGACONNECT can be also used as universal HART modem for HART sensors also of other manufacturers.
Your benefit
- Simple use on plics® series instruments
- Simple voltage supply through USB interface
- Manifold connection possibilities to different sensors by various attached connection cables, adapters and HART resistors

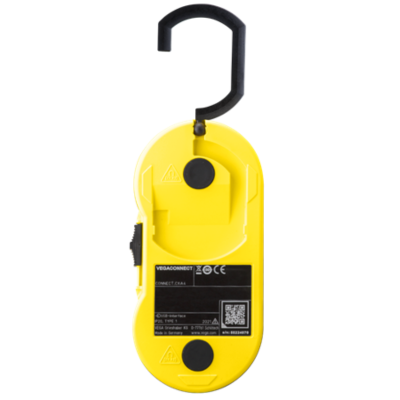

- There are magnets and hooks on the junction box for convenient work in the field
Technical specifications
Housing material
- Plastic
Protection rating
- IP40
Ambient temperature
- -20 … 60 °C
Signal input (specify)
- plics® sensor (serial) and HART communication

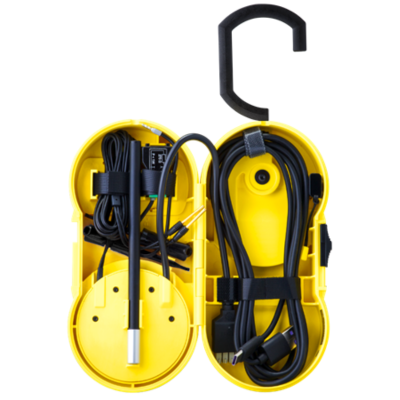

Components
- USB cable
- HART resistor
- Bluetooth USB adapter
- magnetic pen
- I2C cable
Approvals
Scope
- ATEX / Europe
- EAC (GOST) / Russia
- UKR Sepro / Ukraine
- UKEX
Explosion protection
- Intrinsic safety “i”
Display & adjustment
Adjustment
- PACTware/DTM
