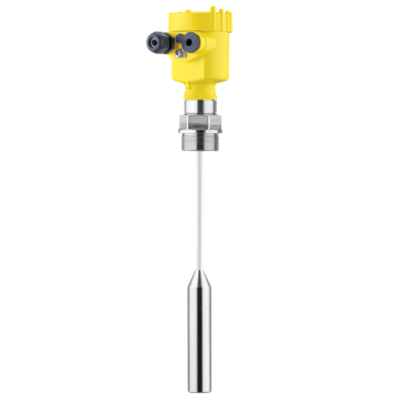

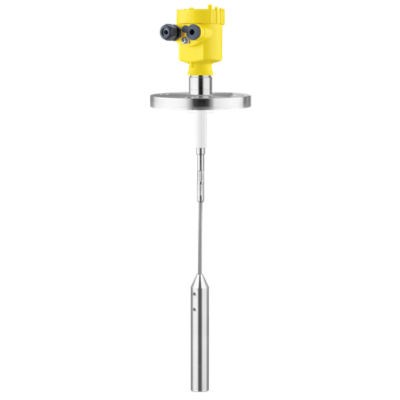

VEGACAP 65
Capacitive cable probe for level detection
Cable probe, partly PTFE insulated
Application area
For liquids and bulk solids, Sensor length up to 32 m
The VEGACAP 65 is a point level sensor for use in all industries. The partly insulated probe is suitable for the measurement of bulk solids and liquids. The proven mechanical construction offers high functional safety.
Your benefit
- High flexibility through shortenable probe
- Long lifetime and low maintenance requirement through robust mechanical construction
- Reliable switching point due to large gravity weight
Technical specifications
Measuring range – Distance
- – [Meter – Foot]
Process temperature
- -50 … 200 °C [°C – °F]
Process pressure
- -1 … 64 bar [Bar – kPa – psi]
Version
- Cable ø 6 mm with screening tube without weight
- Cable ø 6 mm with screening tube and gravity weight
- Cable ø 6 mm with gravity weight
- Cable ø 8 mm with abrasion protection without weight
- Cable ø 8 mm with abrasion protection and gravity weight
- Cable ø 8 mm with gravity weight
- PA cable ø 12 mm with screening tube and gravity weight
Materials, wetted parts
- PTFE
- 316L
- PA
- PEEK
- Steel
Threaded connection
- ≥ G1, ≥ 1 NPT
Flange connection
- ≥ DN50, ≥ 2″
Housing material
- Plastic
- Aluminium
- Stainless steel (precision casting)
- Stainless steel (electropolished)
Protection rating
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
Output
- Relay (DPDT)
- Contactless electronic switch
- Transistor (NPN/PNP)
- Two-wire
Ambient temperature
- -40 … 80 °C
Approvals
Scope
- ATEX / Europe
- CSA / Canada
- FM / USA
- EAC (GOST) / Belarus
- EAC (GOST) / Kazakhstan
- EAC (GOST) / Russia
- IEC / worldwide
- NEPSI / China
- UKR Sepro / Ukraine
- INMETRO / Brazil
- CCC
Explosion protection
- Intrinsic safety “i”
- Dust ignition protection “t”
Ship approval
- ABS
- BV
- CCS
- DNV
- LR
- RINA
- RMROS
Overfill protection
- WHG
- VLAREM II
SIL qualification
- SIL2
Display & adjustment
Indication
- Pluggable display module PLICSLED
